MBI-6418A-T7H
$1,537.00 Configured Summary

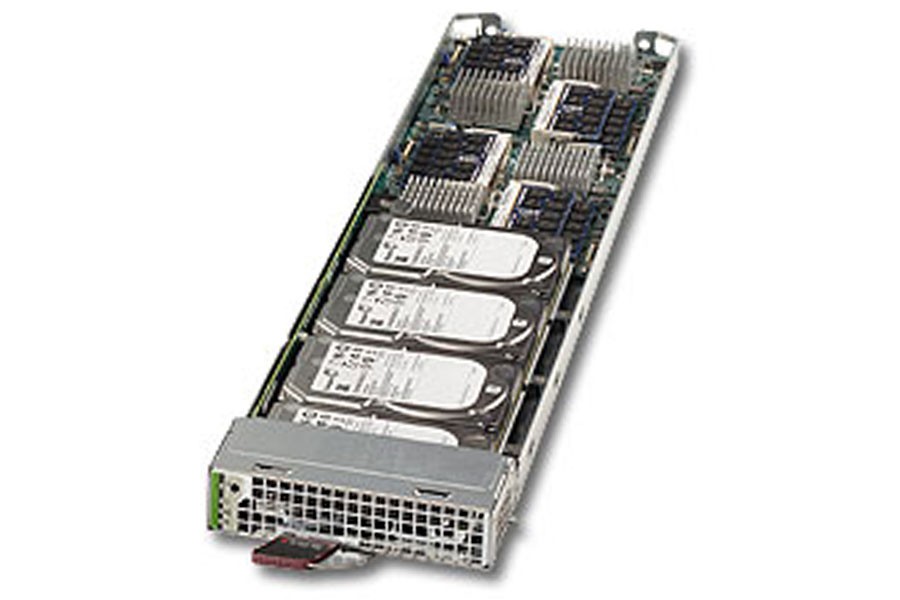

MBI-6418A-T7H
Supermicro 4 Bays 4 Nodes Single MicroBlade Server

  • 4x Independent nodes per module, Each Node suppports:
  • 1x Intel® Atom™ C2750 (8-Core, 2.4GHz) with 2x 2.5Gb/s network connectivity per node
  • Up to 32GB ECC DDR3 1600/1333MHz SO-DIMM in 2x DIMM sockets per node
  • 1x 2.5" 6Gb/s SATA3 HDD/SSD and 1x SATA3 DOM per node
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU MBI-6418A-T7H
Processor
CPU:
Intel® Atom® Processor C2750
(8-Core, 2.4GHz) with 2x 2.5Gb/s network connectivity
FCBGA 1283
System-on-Chip
Memory
Memory Capacity:
2x 204-pin DDR3 SO-DIMM sockets per Node
Supports up to 32GB SO-DIMM ECC memory
Memory Type:
1600/1333MHz ECC DDR3 SDRAM 72-bit, 204-pin gold-plated DIMMs
DIMM Sizes:
16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage:
1.5 V and 1.35 V
Error Detection:
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
Supports Intel® x4 and x8 Single Device Data Correction (SDDC)
Chassis
Single MicroBlade
Dimensions
Height:
1.2" (30.48mm)
Width:
4.94" (125.48mm)
Depth:
23.2" (489.28mm)
Available Colors:
Black
Front Panel
LEDs:
Power LED
UID / KVM LED
Network Activity LED
Fault LED
Bios
BIOS Type:
64Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features:
Plug and Play (PnP)
DMI 2.3
ACPI 5.0
USB Keyboard support
SMBIOS 2.7.1
UEFI

Onboard Devices
Chipset:
System-On-Chip (SoC)
SATA:
C2000 SoC SATA3 (6Gbps); no RAID
HDD Drive Bays
Internal:
1x 2.5" 6Gb/s SATA3 HDD/SSD and 1x SATA3 DOM per node (Total of 4x 2.5" HDD/SSD in one MicroBlade Sled)
Operating Environment
Environmental Spec.:
Operating Temperature: 10°to 35°C (50°to 95°F)
Non-operating Temperature: -40°to 70°C (-40°to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5 to 95% (non-condensing)
Details
Electromagnetic Compatibility (EMC):
United States / Canada:
FCC- Emissions (US) Verification
Europe:
EN55022 - Emissions
EN55024 - Immunity
EN61000-3-2 - Harmonics
EN61000-3-3 - Voltage Flicker
CE - EMC Directive 89/336/EEC

Safety Compliance:
United States / Canada:
UL60950-1 - CSA/CUL 60950-1
Europe:
EN60950-1, CE - Low Voltage Directive 73/23/EEE
Germany:
TUV

Thermal Limitation:
Note:
SuperBlade full enclosure with four 1620W power supplies will have thermal limitation of 30°C ambient temperature.
MBI-6418A-T7H
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
Memory-1st Node
*No Memory
Added
Memory-2nd Node
*No Memory
Added
Memory-3rd Node
*No Memory
Added
Memory-4th Node
*No Memory
Added
Enterprise-Class HDD/SSD
*No Hard Drive
Added
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB
+ $128.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB
+ $131.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB
+ $203.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
+ $380.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $752.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB
+ $1,334.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB
+ $163.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB
+ $264.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
+ $478.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $924.00
Samsung SM883 2.5" SATA III SSD 480GB
+ $200.00
Samsung PM893 2.5" SATA 6Gb/s SSD 240GB
+ $69.00
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
+ $120.00
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
+ $205.00
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
+ $343.00
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
+ $641.00
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
+ $1,223.00
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
+ $349.00
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
+ $516.00
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
+ $1,015.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
+ $207.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
+ $394.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
+ $807.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
+ $46.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
+ $62.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
+ $109.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
+ $216.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
+ $414.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB
+ $328.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB
+ $571.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB
+ $1,001.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB
+ $1,755.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB
+ $3,491.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB
+ $6,637.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Fedora Linux Workstation Edition 64-bit (No Media)
+ $99.00
Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)
+ $99.00
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
