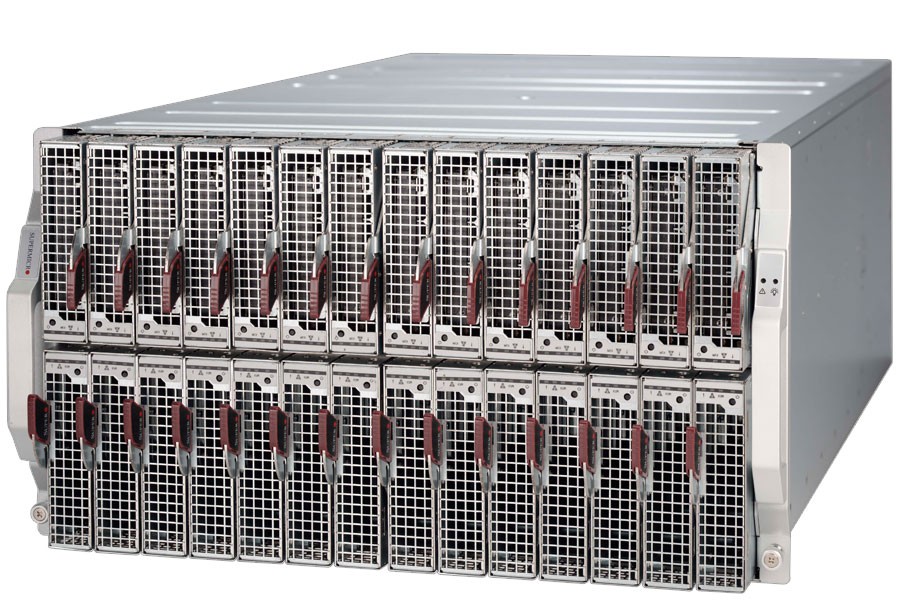

Supermicro 6U 28 Blades High Density Super MicroBlade Cloud Server

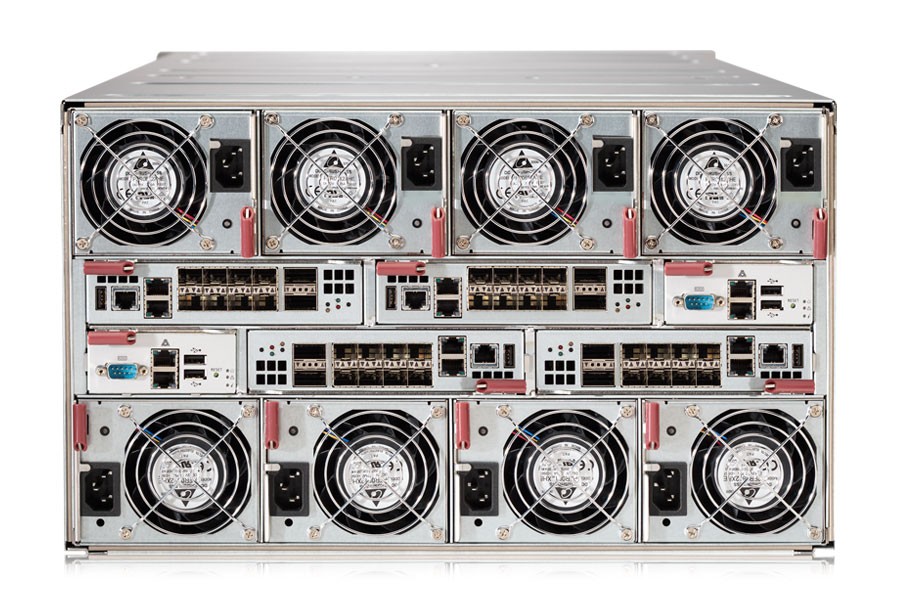

Housed within a 19" industry-standard rack, MicroBlade servers reduce server footprint in the data center. Power, cooling and networking devices are aggregated in the rear of the chassis which optimizes the required amount of space. Up to 28 Blade (112 nodes) can be installed in a 6U chassis. Compared to the 20U of rack space that twenty 1U servers would normally require as individual servers, the MicroBlade provides more than 50% density savings with 6272 Avoton cores per 42U rack.
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| SKU | MBE-628E |
| Details | Processor Blade:
Up to 28 hot-plug DP Xeon E5-2600 v3 MicroBlade Module Support: Supports Intel® based blades LED: Power LED, Fault LED GbE Switch / Pass-Through Module: Supports two hot-plug MBM-GEM-001 (IntelFM5224) with 56x 1Gbps downlinks; 2x 40Gbps QSFP or 8x 10Gbps SFP+ uplinks and 1Gbps RJ45 Management Module: Supports up to two hot-plug Chassis Management Modules (CMM) providing remote KVM and IPMI 2.0 functionalities Management module not included in the enclosure Power Supply: Up to four hot-swap High-efficiency 1600W, N+1 or N+N redundant power supplies Cooling Design: Up to 8 cooling fans Dimensions (HxWxD): 10.43" x 17.67" x 32" Available Models: MBE-628E-816 - Enclosure chassis with eight High-efficiency 1600W power supplies MBE-628E-416 - Enclosure chassis with four High-efficiency 1600W power supplies + four fan modules |
|
|
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| File Description | Date | Type | Size | Download |
| Supermicro 6U 28 Blades High Density Super MicroBlade Cloud Server | 01-09-15 | 513.41 KB |  |
|
| Supermicro Microblade white paper | 01-09-15 | 1,422.27 KB | |
Blade Quantity Range : 28 Qty error!
MBI-6118D-T2
MBI-6118D-T4
MBI-6128R-T2
MBI-6418A-T5H
MBI-6418A-T7H
