7089P-TR4T
$22,739.00 Configured Summary
7089P-TR4T
Supermicro 7U 16+8Bays Single Scalable Processor per Node High Density Server

  • Octa socket P (LGA 3647) supports Intel® Xeon® Scalable processors, UPI up to 10.4 GT/s
  • Up to 12TB in 96 DDR4 DIMM slots
  • 23x or 39x (OEM) PCI-E 3.0 slots include: 8x FH x16 PCI-E cards or 8x GPUs or 16x U.2 NVMe + 8x FHFL x16x PCI-E cards or 16x U.2 NVMe + 8x FHFL x16x PCI-E cards or 16x U.2 NVMe + 2x LP x8 (in x16) PCI-E internal cards (storage module) + 5x FHHL x16 PCI-E cards (rear)(Up to 39x PCI-E 3.0 slots for OEM)

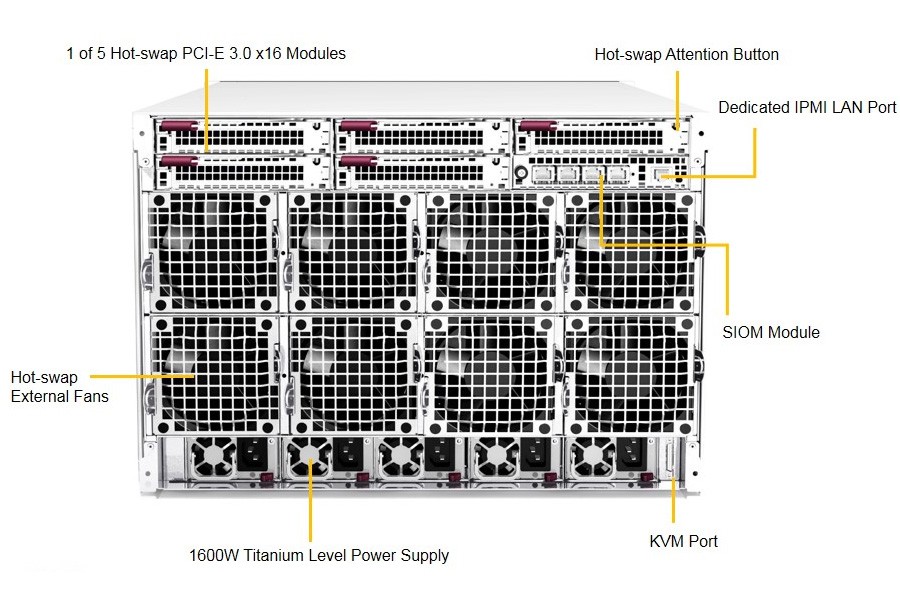

  • 4x 10Gb LAN (SIOM), 1x dedicated LAN for IPMI Remote Management, 1x VGA, 2x USB 2.0, 1x COM via KVM

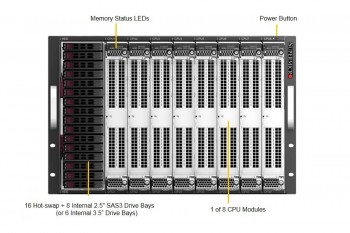

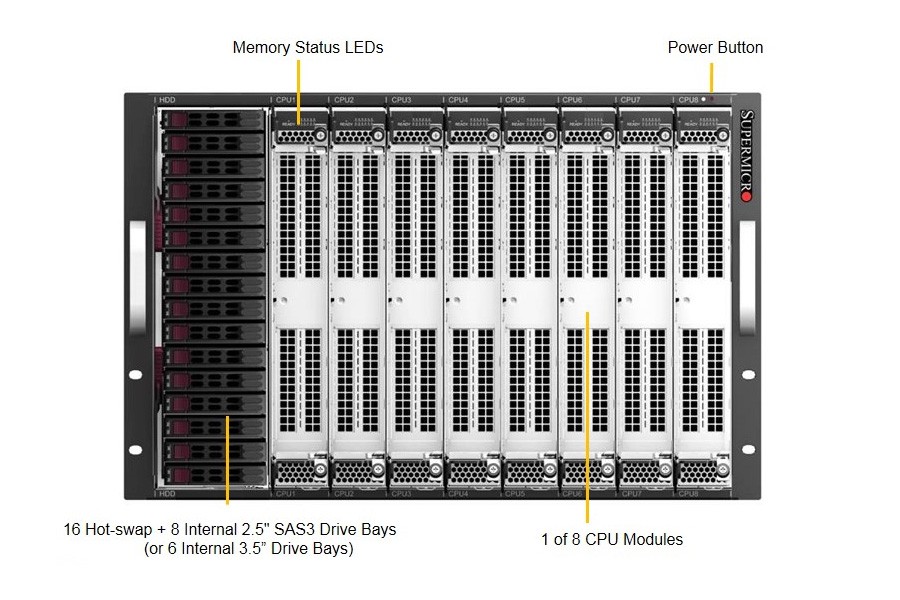

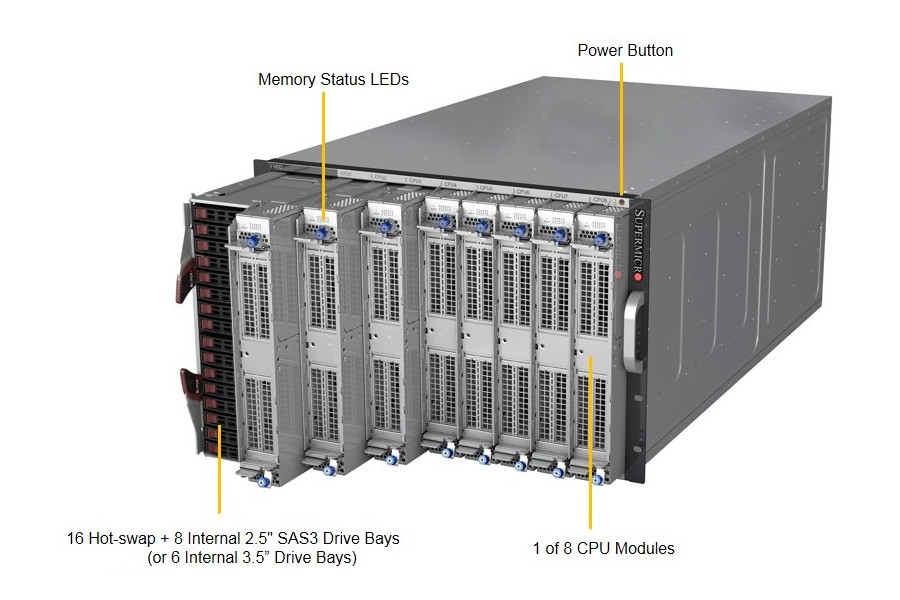

  • 16x Hot-swap 2.5" SAS3 drive bays (w/ RAID cards); 8x 2.5" or 6x 3.5" internal drive bays (w/ RAID cards)
  • 8x 9cm Hot-swap counter-rotating rear fans
  • 5x 1600W (N+2) Redundant Power Supplies, Titanium Level (96%)
  • 8-Way MP, 224 Cores, Virtualization, ERP, CRM, In-Memory Database Application, Research lab/National Lab, Scale-up HPC
Due to the complexity of integration, this product is sold as completely assembled systems only (including but not limited to CPUs, memory, and HDDs). Please contact our sales rep for special requirements.
96/48 DIMMs are the recommended memory population configurations for the best performance.
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU SYS-7089P-TR4T
Processor
CPU:
Octa Socket P (LGA 3647)
Intel® Xeon® Scalable Processors,
Dual UPI up to 10.4GT/s
Support CPU TDP 70-205W with IVR
Cores:
Up to 28 Cores with Intel® HT Technology
Memory
Memory Capacity:
96x 288-pin DDR4 DIMM slots
Supports up to 12TB DDR4 ECC 3DS LRDIMM in 96 DIMM slots
Memory Type:
2666/2400/2133MHz ECC DDR4 SDRAM
DIMM Sizes:
128GB, 64GB, 32GB, 16GB, 8GB
Memory Voltage:
1.2 V
Error Detection:
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
Chassis
7U Chassis
Dimensions
Height:
12.2" (310mm)
Width:
17.63" (448mm)
Depth:
28.87" (733mm)
Bios
BIOS Type:
16MB SPI Flash EEPROM with AMI® BIOS
BIOS Features:
Plug and Play (PnP)
PCI 2.2
ACPI up to 3.0
USB Keyboard support`
Onboard Devices
Chipset:
Intel® C621 chipset
Storage:
Intel C621 including 2 SATA3 (SATA DOM), 2 M.2 (SATA3/PCIe), 8 HDD (SATA3), 1 TPM header
Network Controllers (via AOM):
4-port 10GBase-T Ethernet SIOM (Intel® X550 controller)
IPMI (via AOM):
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics:
ASPEED AST2500 BMC
HDD Drive Bays
Hot-swap:
16 Hot-swap 2.5" SAS3 drive bays (w/ RAID cards)
8x 2.5" or 6x 3.5" internal drive bays (w/ RAID cards)
Backplane:
2x 6-port 12G backplane supports 6x 2.5" SAS3/SATA3 HDD/SSD
Expansion Slots
23 PCI-E 3.0 slots total including:
8 FH x16 PCI-E cards or 8 GPUs or 16 U.2 NVMe + 8 FHFL x16 PCI-E cards or 16 U.2 NVMe + 2 LP x8 (in x16 slot) PCI-E internal cards (storage module) + 5 FHHL x16 PCI-E cards (rear)
Up to 39 PCI-E 3.0 slots for OEM
Power Supply
1600W Redundant Power Supplies with PMBus
Total Output Power:

1000W/1600W
Dimension (W x H x L):
73.5 x 40 x 203 mm
Input:
100-127Vac / 13 - 9A / 50-60Hz
200-240Vac / 10 - 8A / 50-60Hz
+12V:
Max: 83.3A / Min: 0A (100-127Vac)
Max: 133A / Min: 0A (200-240Vac)
12Vsb:
Max: 2.1A / Min: 0A
Output Type:
25 Pairs Gold Finger Connector
Certification:
UL/cUL/CB/BSMI/CE/CCC
  Titanium Level
Input Output
Storage:
2x SATA DOM (SATA3) ports
2x M.2 (SATA3/PCI3) ports
8x HDD (SATA3) ports
LAN:
4x 10GBase-T ports via SIOM
1x dedicated LAN port for IPMI
USB:
2x USB 2.0 ports via KVM port
Serial Port / Header:
1x Fast UART 16550 ports: 1 front via KVM port
Cooling
8x 9cm 10.5K-10.8K RPM Hot-Swap Counter-rotating Rear Fans
Operating Environment
RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
   -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)

Details
PC Health Monitoring
CPU:

Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator
FAN:
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for 8x fan connectors
7089P-TR4T7089P-TR4T7089P-TR4T
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Select CPU:
Intel® Xeon® Scalable Bronze Processor 3104 (1.70 Ghz 85W)
Added
Intel® Xeon® Scalable Bronze Processor 3106 (1.70 Ghz 85W)
+ $108.00
Intel® Xeon® Scalable Silver Processor 4108 (1.80 Ghz 85W)
+ $228.00
Intel® Xeon® Scalable Silver Processor 4112 (2.60 Ghz 85W)
+ $294.00
Intel® Xeon® Scalable Silver Processor 4110 (2.10 Ghz 85W)
+ $324.00
Intel® Xeon® Scalable Silver Processor 4114 (2.20 Ghz 85W)
+ $540.00
Intel® Xeon® Scalable Silver Processor 4116 (2.10 Ghz 85W)
+ $888.00
Intel® Xeon® Scalable Gold Processor 5115 (2.40 Ghz 85W)
+ $1,122.00
Intel® Xeon® Scalable Gold Processor 5122 (3.60 Ghz 105W)
+ $1,128.00
Intel® Xeon® Scalable Gold Processor 5118 (2.30 Ghz 105W)
+ $1,182.00
Intel® Xeon® Scalable Gold Processor 5120 (2.20 Ghz 105W)
+ $1,500.00
Intel® Xeon® Scalable Gold Processor 6128 (3.40 Ghz 115W)
+ $1,656.00
Intel® Xeon® Scalable Gold Processor 6126 (2.60 Ghz 125W)
+ $1,740.00
Intel® Xeon® Scalable Gold Processor 6126T (2.60 Ghz 125W)
+ $1,842.00
Intel® Xeon® Scalable Gold Processor 6130 (2.10 Ghz 125W)
+ $1,872.00
Intel® Xeon® Scalable Gold Processor 6126F (2.60 Ghz 135W)
+ $1,920.00
Intel® Xeon® Scalable Gold Processor 6130T (2.10 Ghz 125W)
+ $1,980.00
Intel® Xeon® Scalable Gold Processor 6130F (2.10 Ghz 135W)
+ $2,046.00
Intel® Xeon® Scalable Gold Processor 6132 (2.60 Ghz 140W)
+ $2,118.00
Intel® Xeon® Scalable Gold Processor 6134 (3.20 Ghz 130W)
+ $2,238.00
Intel® Xeon® Scalable Gold Processor 6140 (2.30 Ghz 140W)
+ $2,502.00
Intel® Xeon® Scalable Gold Processor 6136 (3.00 Ghz 150W)
+ $2,508.00
Intel® Xeon® Scalable Gold Processor 6138 (2.00 Ghz 125W)
+ $2,682.00
Intel® Xeon® Scalable Gold Processor 6138T (2.00 Ghz 125W)
+ $2,826.00
Intel® Xeon® Scalable Gold Processor 6138F (2.00 Ghz 135W)
+ $2,856.00
Intel® Xeon® Scalable Gold Processor 6144 (3.50 Ghz 150W)
+ $3,030.00
Intel® Xeon® Scalable Gold Processor 6142 (2.60 Ghz 150W)
+ $3,060.00
Intel® Xeon® Scalable Gold Processor 6148 (2.40 Ghz 150W)
+ $3,204.00
Intel® Xeon® Scalable Gold Processor 6142F (2.60 Ghz 160W)
+ $3,228.00
Intel® Xeon® Scalable Platinum Processor 8153 (2.00 Ghz 125W)
+ $3,246.00
Intel® Xeon® Scalable Gold Processor 6148F (2.40 Ghz 160W)
+ $3,372.00
Intel® Xeon® Scalable Gold Processor 6146 (3.20 Ghz 165W)
+ $3,438.00
Intel® Xeon® Scalable Gold Processor 6150 (2.70 Ghz 165W)
+ $3,516.00
Intel® Xeon® Scalable Gold Processor 6154 (2.10 Ghz 125W)
+ $3,726.00
Intel® Xeon® Scalable Gold Processor 6152 (2.10 Ghz 140W)
+ $3,858.00
Intel® Xeon® Scalable Platinum Processor 8160 (2.10 Ghz 150W)
+ $5,034.00
Intel® Xeon® Scalable Platinum Processor 8160F (2.10 Ghz 160W)
+ $5,196.00
Intel® Xeon® Scalable Gold Processor 6134M (3.20 Ghz 130W)
+ $5,604.00
Intel® Xeon® Scalable Gold Processor 6140M (2.30 Ghz 140W)
+ $5,862.00
Intel® Xeon® Scalable Platinum Processor 8168 (2.70 Ghz 205W)
+ $6,354.00
Intel® Xeon® Scalable Gold Processor 6142M (2.60 Ghz 150W)
+ $6,426.00
Intel® Xeon® Scalable Platinum Processor 8164 (2.00 Ghz 150W)
+ $6,618.00
Intel® Xeon® Scalable Platinum Processor 8156 (3.60 Ghz 105W)
+ $7,614.00
Intel® Xeon® Scalable Platinum Processor 8158 (3.00 Ghz 150W)
+ $7,614.00
Intel® Xeon® Scalable Platinum Processor 8170 (2.10 Ghz 165W)
+ $8,058.00
Intel® Xeon® Scalable Platinum Processor 8160M (2.10 Ghz 150W)
+ $8,394.00
Intel® Xeon® Scalable Platinum Processor 8176 (2.10 Ghz 165W)
+ $9,528.00
Intel® Xeon® Scalable Platinum Processor 8180 (2.50 Ghz 205W)
+ $10,986.00
Intel® Xeon® Scalable Platinum Processor 8170M (2.10 Ghz 165W)
+ $11,424.00
Intel® Xeon® Scalable Platinum Processor 8176M (2.10 Ghz 165W)
+ $12,894.00
Intel® Xeon® Scalable Platinum Processor 8180M (2.50 Ghz 205W)
+ $14,346.00
MEMORY
Select Memory Capacity:
16GB DDR4 2666 ECC Registered Memory
Added
32GB DDR4 2666 ECC Registered Memory
+ $300.00
32GB DDR4 2400 ECC LRDIMM Memory
+ $480.00
64GB DDR4 2666 ECC LRDIMM Memory
+ $1,372.00
HDD/SSD Intel/Samsung/WD/Seagate/HGST
Select Storage Capacity:
2.5" SATA 6Gb/s 7200RPM 500GB
Added
2.5" SATA 6Gb/s 7200RPM 1TB
+ $156.00
2.5" SATA 6Gb/s 7200RPM 2TB
+ $325.00
2.5" SAS 12Gb/s 10000RPM 600GB
+ $183.00
2.5" SAS 12Gb/s 10000RPM 900GB
+ $257.00
2.5" SAS 12Gb/s 10000RPM 1.2TB
+ $287.00
2.5" SAS 12Gb/s 10000RPM 1.8TB
+ $482.00
2.5" SSD SATA 6Gb/s 256GB
+ $35.00
2.5" SSD SATA 6Gb/s 512GB
+ $101.00
2.5" SSD SATA 6Gb/s 1TB
+ $273.00
2.5" SSD SATA 6Gb/s 2TB
+ $505.00
(optional)HDD/SSD Intel/Samsung/WD/Seagate/HGST
*No Hard Drive
Added
3.5" SATA 6Gb/s 7200RPM 1TB
+ $90.00
3.5" SATA 6Gb/s 7200RPM 2TB
+ $139.00
3.5" SATA 6Gb/s 7200RPM 3TB
+ $180.00
3.5" SATA 6Gb/s 7200RPM 4TB
+ $194.00
3.5" SATA 6Gb/s 7200RPM 6TB
+ $235.00
3.5" SATA 6Gb/s 7200RPM 8TB
+ $334.00
3.5" SATA 6Gb/s 7200RPM 10TB
+ $395.00
2.5" SATA 6Gb/s 7200RPM 500GB
+ $59.00
2.5" SATA 6Gb/s 7200RPM 1TB
+ $215.00
2.5" SATA 6Gb/s 7200RPM 2TB
+ $384.00
2.5" SSD SATA 6Gb/s 256GB
+ $94.00
2.5" SSD SATA 6Gb/s 512GB
+ $160.00
2.5" SSD SATA 6Gb/s 1TB
+ $332.00
2.5" SSD SATA 6Gb/s 2TB
+ $564.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Fedora Linux Workstation Edition 64-bit (No Media)
+ $99.00
Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)
+ $99.00
Microsoft Windows Server 2016 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
2570
1
21798.0000
