GIN-3600V
$115.00 Configured Summary
GIN-3600V

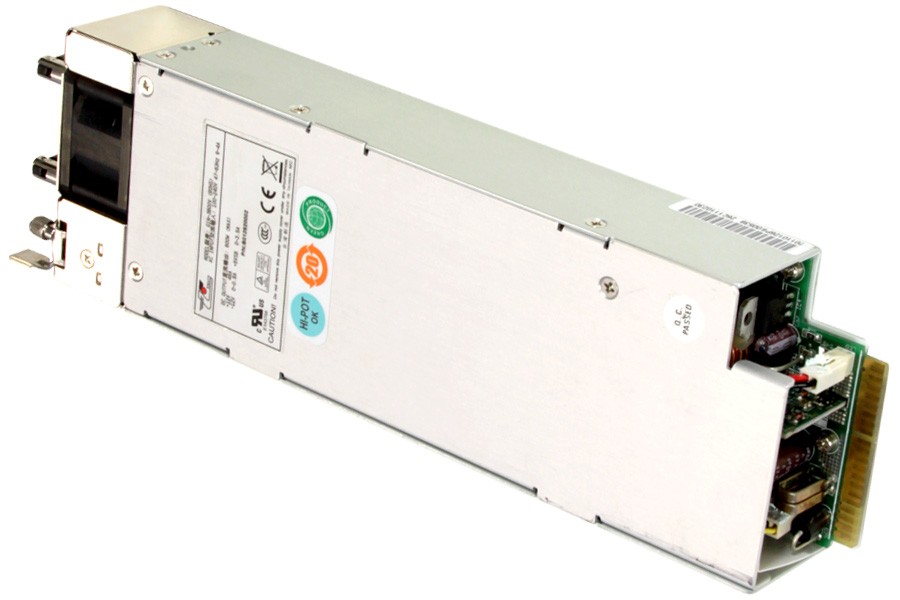

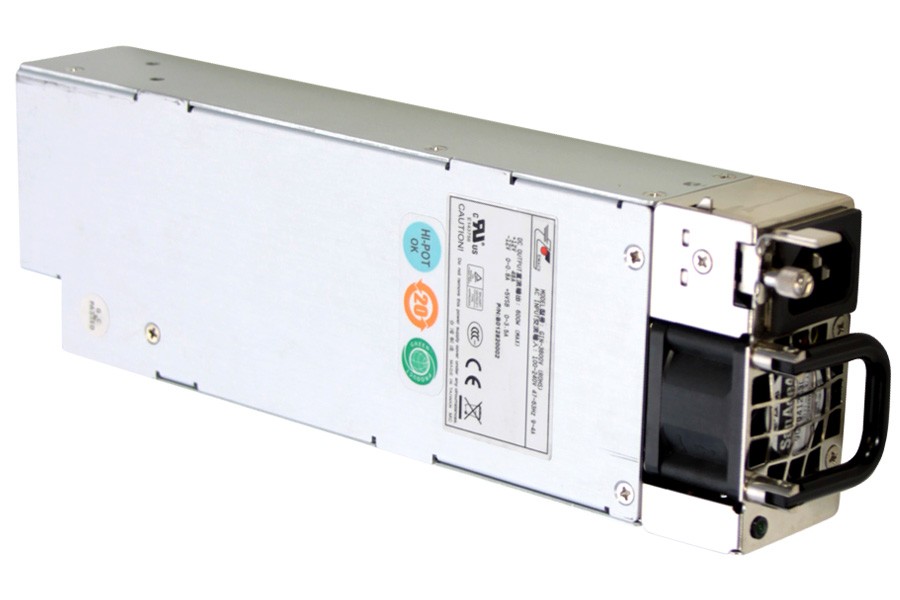

Zippy GIN-3600V 600W Single Power Supply Module
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU GIN-3600V
Details
Frequency:
47~63hz
Input current:
8a/4a (115 / 230 vac) power module
Inrush current:
60a/80a max. For 115/230 vac power module
Output Voltage +12V:
Output Current Min 2. Output Current Max 48. Regulation Load ±5%, Regulation Line ±1%, Output Ripple & Noise Max 120mV.
Output Voltage +5VSB:
Output Current Min 0.1. Output Current Max 3.5. Regulation Load ±5%, Regulation Line ±1%, Output Ripple & Noise Max 50mV.
Output Voltage +5VSB:
Output Current Min 0.1. Output Current Max 3.5. Regulation Load ±5%, Regulation Line ±1%, Output Ripple & Noise Max 50mV.
Output Voltage -12V:
Output Current Min 0. Output Current Max 0.8. Regulation Load ±10%, Regulation Line ±1%, Output Ripple & Noise Max 120mV.
Voltage:
90~264vac full range
GIN-3600VGIN-3600VGIN-3600V
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
