9029GP-TNVRT
Please Inquire Configured Summary

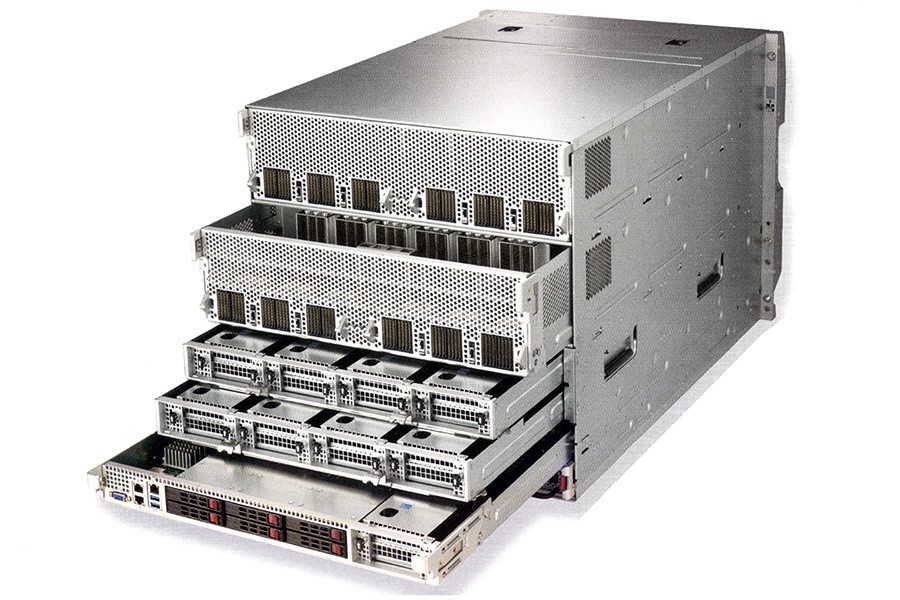

9029GP-TNVRT
Supermicro 10U (16+6)Bays Dual Scalable Processor Support 16 GPUs Rackmount GPU Server

  • Dual Socket P (LGA 3647) support Intel® Xeon® Scalable processors 3 UPI up to 10.4GT/s
  • Up to 3TB 3DS ECC LRDIMM, up to DDR4-2666MHz; 24 DIMM slots
  • 16 PCI-E 3.0 x16 for RDMA via IB EDR; 2 PCI-E 3.0 x16 on board
  • Supports 16 V100 SXM3 350W GPUs with NVSwitch and NVLink
  • Dual 10GBase-T LAN with Intel® X540
  • 16 Hot-swap 2.5" NVMe drives, 6 Hot-swap 2.5" SATA3 drive bays
  • 6x 80mm Hot-swap PWM Fans, 8x 92mm Hot-swap Fans
  • 6x (5+1) 3000W Redundant Power Supplies; Titanium Level (96%+)
  • AI / Deep Learning, High-performance Computing,  Autonomous Vehicle Technology, Supports 16 V100 SXM3 GPUs

Storage configuration notice:
Hot-swap:
16x Hot-swap 2.5" NVMe drive bays
6x Hot-swap 2.5" SATA3 drive bays
M.2:
2x M.2 Drive

To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 512GB memory, 1 HDD, 16 GPUs installed). Service: Due to complexity, OSNBD3 is highly recommended.
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU SYS-9029GP-TNVRT
Processor
CPU:
Dual Socket P (LGA 3647)
Intel® Xeon® Scalable Processors,
3 UPI up to 10.4GT/s
Support CPU TDP 205W
Cores:
Up to 28 Cores
GPU Support:
Supports 16 V100 SXM3 350W
Memory
Memory Capacity:
24 DIMM slots
Up to 3TB 3DS ECC L/RDIMM, up to DDR4-2666MHz
Memory Type:
2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Chassis
10U Rackmount Chassis
Dimensions
Height:
17.2" (437mm)
Width:
17.8" (452mm)
Depth:
27.75" (705mm)
Bios
BIOS Type:
AMI 32Mb SPI Flash ROM
BIOS Features:
Intel® Node Manager
IPMI 2.0
KVM with dedicated LAN
SSM, SPM, SUM
SuperDoctor® 5
Watchdog
Onboard Devices
Chipset:
Intel® C621 chipset
SATA:
SATA3 (6Gbps) with RAID 0, 1, 5, 10
Network Controllers:
Dual Port 10GBase-T from Intel X540 Ethernet Controller
IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics:
ASPEED AST2500 BMC
HDD Drive Bays
Hot-swap:
16 Hot-swap 2.5" NVMe drive bays
6 Hot-swap 2.5" SATA3 drive bays
M.2:
M.2 Interface: 2 PCI-E 3.0 x4
Form Factors: 2280, 22110
Key: M-Key
Note:
NVMe hot-swap feature doesn't work in Windows environment
Expansion Slots
PCI-Express:
16 PCI-E 3.0 x16 for RDMA via IB EDR
2 PCI-E 3.0 x16 on motherboard
Power Supply
6x 3000W Redundant Titanium Level Power Supplies with PMBus
Total Output Power:
2883W with Input 200 - 207Vac
3000W with Input 208 - 240Vac
Dimension (W x H x L):
68 x 40 x 430 mm
Input:
50-60Hz
+12V:
Max: 53.4A & Min: 0.3A (200-207Vac)
Max: 55.6A & Min: 0.3A (208-240Vac)
12Vsb:
Max: 3A / Min: 0A
Output Type:
Backplanes (gold finger)
Certification:
Titanium Level
Input Output
SATA:
6 SATA3 (6Gbps) ports
LAN:
2x RJ45 10GBase-T LAN ports
1x RJ45 Dedicated IPMI LAN port
USB:
2x USB 3.0 ports (front)
Video:
1x VGA Connector
COM Port:
1x COM port (header)
Cooling
Fans:
6x 80mm Hot-swap PWM Fans
8x 92mm Hot-swap Fans
Operating Environment
RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
   -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
   10% to 85% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
9029GP-TNVRT
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3206R (1.90 Ghz 85W)
Intel® Xeon® Scalable 2nd Gen Silver Processor 4210R (2.40 Ghz 100W)
Intel® Xeon® Scalable 2nd Gen Gold Processor 5218R (2.10 Ghz 125W)
Intel® Xeon® Scalable 2nd Gen Gold Processor 5220R (2.20 Ghz 150W)
Intel® Xeon® Scalable 2nd Gen Gold Processor 6226R (2.90 Ghz 150W)
Intel® Xeon® Scalable 2nd Gen Gold Processor 6238R (2.20 Ghz 165W)
Intel® Xeon® Scalable 2nd Gen Gold Processor 6242R (3.10 Ghz 205W)
Intel® Xeon® Scalable 2nd Gen Gold Processor 6246R (3.40 Ghz 205W)
Intel® Xeon® Scalable 2nd Gen Gold Processor 6248R (3.00 Ghz 205W)
Intel® Xeon® Scalable 2nd Gen Gold Processor 6258R (2.70 Ghz 205W)
MEMORY
Hynix 64GB DDR4 2666 ECC LRDIMM Memory
*No Memory
Added
Samsung 8GB DDR4 2933 ECC RDIMM Memory
Samsung 16GB DDR4 2933 ECC RDIMM Memory
Samsung 32GB DDR4 2933 ECC RDIMM Memory
Samsung 64GB DDR4 2933 ECC RDIMM Memory
Samsung 64GB DDR4 2933 ECC LRDIMM Memory
Samsung 8GB DDR4 3200 ECC RDIMM Memory
Samsung 16GB DDR4 3200 ECC RDIMM Memory
Samsung 32GB DDR4 3200 ECC RDIMM Memory
Samsung 64GB DDR4 3200 ECC RDIMM Memory
Samsung 128GB DDR4 3200 ECC LRDIMM Memory
Enterprise-Class HDD/SSD
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB
Added
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
Samsung SM883 2.5" SATA III SSD 480GB
Samsung PM893 2.5" SATA 6Gb/s SSD 240GB
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB
NVMe M.2
*No NVMe M.2 Drives
Added
Micron 7400 Pro NVMe M.2 (22x80) SSD 480GB
Micron 7400 Pro NVMe M.2 (22x80) SSD 960GB
Micron 7400 Pro NVMe M.2 (22x110) SSD 1.92TB
Micron 7400 Pro NVMe M.2 (22x110) SSD 3.84TB
Micron 7400 MAX NVMe M.2 (22x80) SSD 400GB
Micron 7400 MAX NVMe M.2 (22x80) SSD 800GB
Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB
Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB
Micron 7450 Pro NVMe M.2 (22x110) SSD 960GB
Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB
Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB
Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
WD Black SN850 M.2 G4 NVMe SSD 500GB
WD Black SN850 M.2 G4 NVMe SSD 1TB
WD Black SN850 M.2 G4 NVMe SSD 2TB
NVMe U.2/U.3
*No NVMe U.2 Drives
Added
Micron 7400 PRO NVMe U.3 (7mm) SSD 960GB
Micron 7400 PRO NVMe U.3 (7mm) SSD 1.92TB
Micron 7400 PRO NVMe U.3 (7mm) SSD 3.84TB
Micron 7400 PRO NVMe U.3 (7mm) SSD 7.68TB
Micron 7400 MAX NVMe U.3 (7mm) SSD 800GB
Micron 7400 MAX NVMe U.3 (7mm) SSD 1.6TB
Micron 7400 MAX NVMe U.3 (7mm) SSD 3.2TB
Micron 7400 MAX NVMe U.3 (7mm) SSD 6.4TB
Micron 7450 PRO NVMe U.3 (15mm) SSD 960GB
Micron 7450 PRO NVMe U.3 (15mm) SSD 1.92TB
Micron 7450 PRO NVMe U.3 (15mm) SSD 3.84TB
Micron 7450 PRO NVMe U.3 (15mm) SSD 7.68TB
Micron 7450 PRO NVMe U.3 (15mm) SSD 15.36TB
Micron 7450 MAX NVMe U.3 (15mm) SSD 800GB
Micron 7450 MAX NVMe U.3 (15mm) SSD 1.6TB
Micron 7450 MAX NVMe U.3 (15mm) SSD 3.2TB
Micron 7450 MAX NVMe U.3 (15mm) SSD 6.4TB
Micron 7450 MAX NVMe U.3 (15mm) SSD 12.8TB
Samsung PM9A3 2.5" U.2 NVMe SSD 960GB
Samsung PM9A3 2.5" U.2 NVMe SSD 1.92TB
Samsung PM9A3 2.5" U.2 NVMe SSD 3.84TB
Samsung PM9A3 2.5" U.2 NVMe SSD 7.68TB
Samsung PM9A3 2.5" U.2 NVMe SSD 15TB
NETWORK CARD
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
GPU/Coprocessor
NVIDIA A100 PCIe Video Card 40GB
Added
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)
Debian Linux (No Media) (32-Bit/64-Bit)
Fedora Linux Workstation Edition 64-bit (No Media)
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
Microsoft Windows Server 2022 Standard 64-bit-1User
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000
