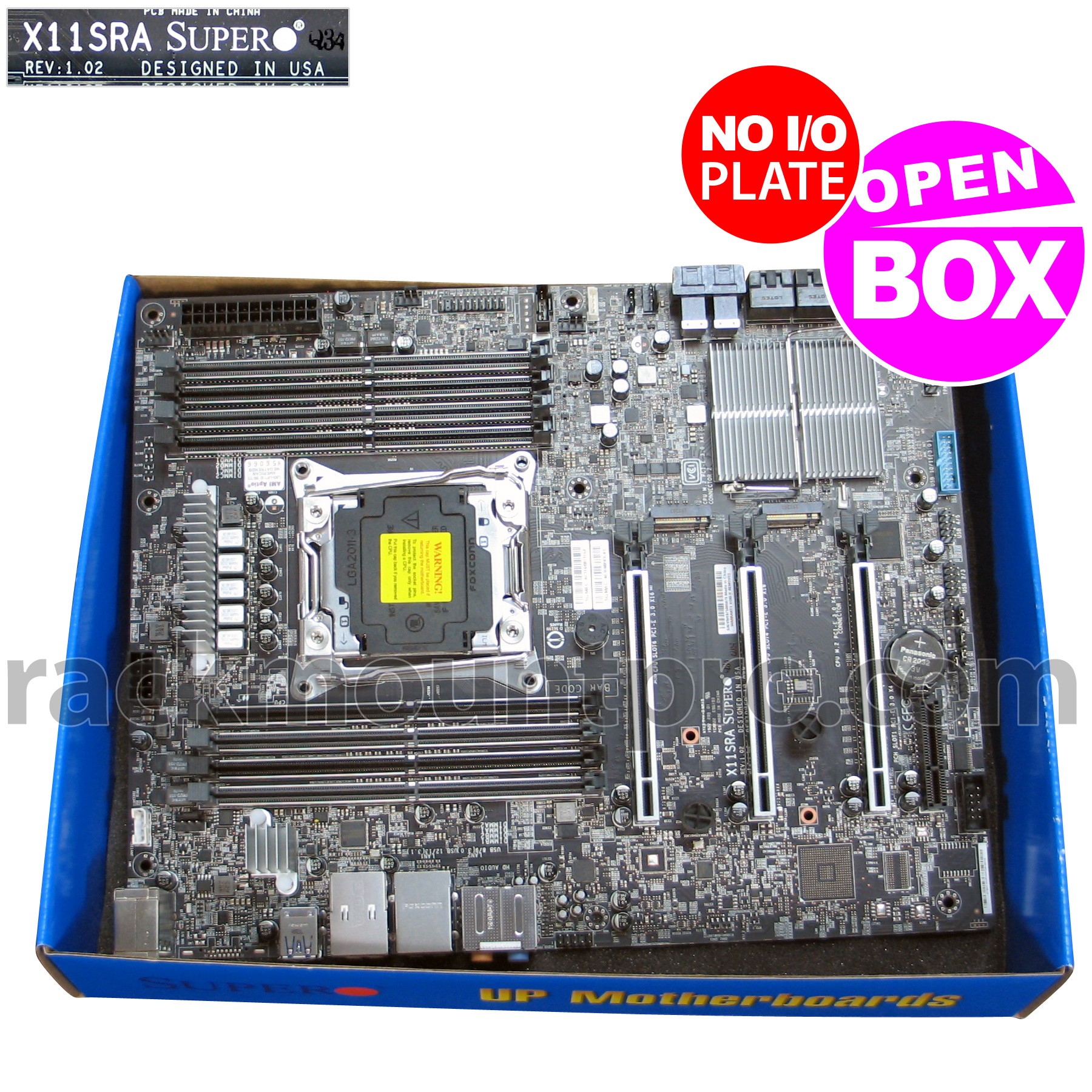

Supermicro X11SRA Motherboard OPEN BOX (No I/O plate)
- Intel® Xeon® W-2100 Processors
- Intel® Xeon® W-2200 Processors
- Single Socket LGA-2066 (Socket R4) supported
- CPU TDP support Up to 165W TDP
- Intel® C422
- Up to 512GB Registered ECC RDIMM, DDR4-2666MHz
- Up to 1TB Registered ECC LRDIMM, DDR4-2666MHz
- In 8 DIMM slots(DDR4-2933MHz: RDIMM Max. Memory Capacity 256GB Registered ECC, LRDIMM Max. Memory Capacity 512GB Registered ECC)
- 3 PCI-E 3.0 x16, 1 PCI-E 3.0 x4
***3xPCI-E3.0 x16 Slots(8/16/16 (Skylake-W 48 lanes), 1xPCI-E3.0x4 slots***
M.2 Interface: 2 PCI-E 3.0 x4
M.2 Form Factor: 22110
M.2 Key: M-Key (RAID 0,1 support)
M-Key for SSD and Optane(up to Intel POR). Intel VROC licence kit is needed to enable RAID.
U.2 Interface: 2 PCI-E 3.0 x4
M.2 Interface: 2 PCI-E 3.0 x4
M.2 Form Factor: 22110
M.2 Key: M-Key (RAID 0,1 support)
M-Key for SSD and Optane(up to Intel POR). Intel VROC licence kit is needed to enable RAID.
U.2 Interface: 2 PCI-E 3.0 x4
- Intel® C422 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10 iRST enabled, only SATA2 to SATA5 support RAID.
- Single LAN with Intel® PHY I219LM LAN controller Single LAN with Aquantia 5G LAN chip AQC108
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| SKU | 00600010-X11SRA |
| Processor | CPU:
Intel® Xeon® W-2100 Processors, Intel® Xeon® W-2200 Processors. Single Socket LGA-2066 (Socket R4) supported, CPU TDP support Up to 165W TDP As Intel® Xeon® Processor W Family |
| Memory | Memory Capacity:
Up to 512GB Registered ECC RDIMM, DDR4-2666MHz; Up to 1TB Registered ECC LRDIMM, DDR4-2666MHz, in 8 DIMM slots(DDR4-2933MHz: RDIMM Max. Memory Capacity 256GB Registered ECC, LRDIMM Max. Memory Capacity 512GB Registered ECC) Memory Type:
2666/2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit 288-pin RDIMM/LRDIMM DIMM Sizes: 4GB, 8GB, 16GB, 32GB, 64GB Memory Voltage:
1.2V |
| Dimensions | Form Factor:
ATX Dimensions:
12" x 9.6" (30.48cm x 24.38cm) |
| Bios | BIOS Type:
UEFI 256Mb |
| Onboard Devices | Chipset:
Intel® C422 SATA:
Intel® C422 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10 *iRST enabled, only SATA2 to SATA5 support RAID. Network Controllers:
Single LAN with Intel® PHY I219LM LAN controller Single LAN with Aquantia 5G LAN chip AQC108 Audio:
ALC 1220 7.1 HD Audio |
| Expansion Slots | PCI-E:
3 PCI-E 3.0 x16, 1 PCI-E 3.0 x4 ***3xPCI-E3.0 x16 Slots(8/16/16 (Skylake-W 48 lanes), 1xPCI-E3.0x4 slots*** M.2:
M.2 Interface: 2 PCI-E 3.0 x4 Form Factor: 22110 Key: M-Key (RAID 0,1 support) *M-Key for SSD and Optane(up to Intel POR). Intel VROC licence kit is needed to enable RAID. |
| Input Output | USB:
6 USB 2.0 ports (2 rear + 4 via headers) 6 USB 3.0 ports (4 rear + 2 via headers) 2 USB 3.1 ports (2 Type A Serial Port / Header:
1 COM Port (1 header) TPM:
1 TPM Header *No I/O plate*
|
| Operating Environment | Operating Temperature Range:
0°C ~ 50°C (32°F ~ 122°F)
Non-Operating Temperature Range:
-20°C ~ 60°C (-4°F ~ 140°F)
Operating Relative Humidity Range:
10% ~ 85% (non-condensing)
Non-Operating Relative Humidity Range:
10% ~ 95% (non-condensing)
|
|
|
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
