SBE-710Q-R48
$3,580.00 Configured Summary
SBE-710Q-R48
Supermicro OfficeBlade®​ 10 Hot-Plug Processor Blade Enclosure w/ Four 1620W Power Supplies

Up to 10 TwinBlade (20 nodes) can be installed in a 7U chassis. Compared to the 20U of rack space that twenty 1U servers would normally require as individual servers, the SuperBlade provides more than 50% density savings with 120 nodes and 24 switches in a 42U rack.

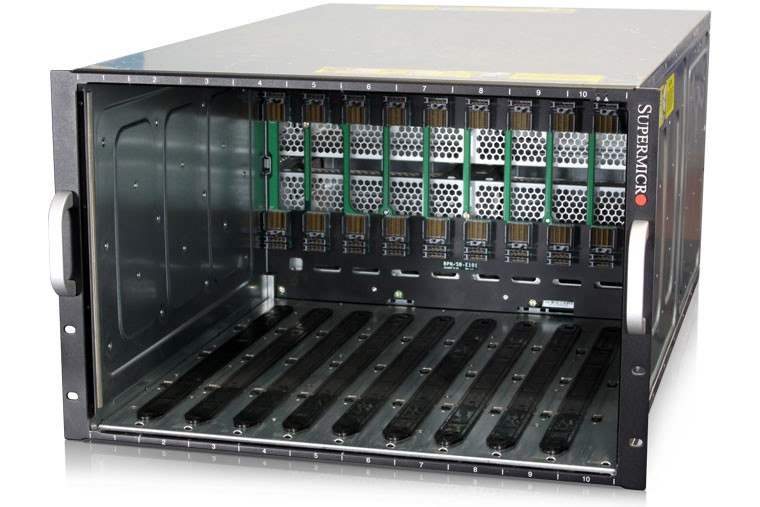

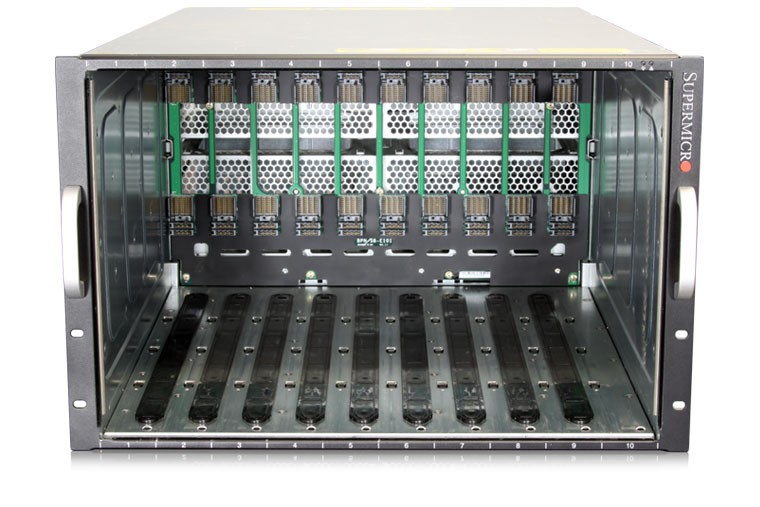

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU SBE-710Q-R48
Details
Processor Blade:
Up to 10 hot-plug processor blades

Module Support:
Supports both Intel and AMD based blades

LED:
Power LED, Fault LED

InfiniBand Switch:
Supports up to two hot-plug QDR IB switches

Gigabit Ethernet Switch / Pass-Through Module:
Supports up to two hot-plug Gigabit Ethernet switches / Pass-Through Modules

Management Module:
Up to two hot-plug management modules providing remote KVM and IPMI 2.0 functionalities
One management module comes standard with each enclosure

Power Supply:
Up to four hot-swap 1620W / 2500W / 3000W power supplies, N+1 redundant

Cooling:
Design    Up to 16 cooling fans

Dimensions (HxWxD):
12.1" x 18.5" x 29"

Note:
1) Dual IB QDR / 10GbE switch module support requires Mini-CMM
2) One IB DDR switch/pass-thru and 10GbE pass-thru module can be supported simultaneously with Mini-CMM installed in 10GbE pass-thru module.
3) When SBM-GEP-T20 installed, one SBM-GEM-X2C+ and one IB QDR switch or 10GbE switch is supported.
SBE-710Q-R48SBE-710Q-R48SBE-710Q-R48SBE-710Q-R48

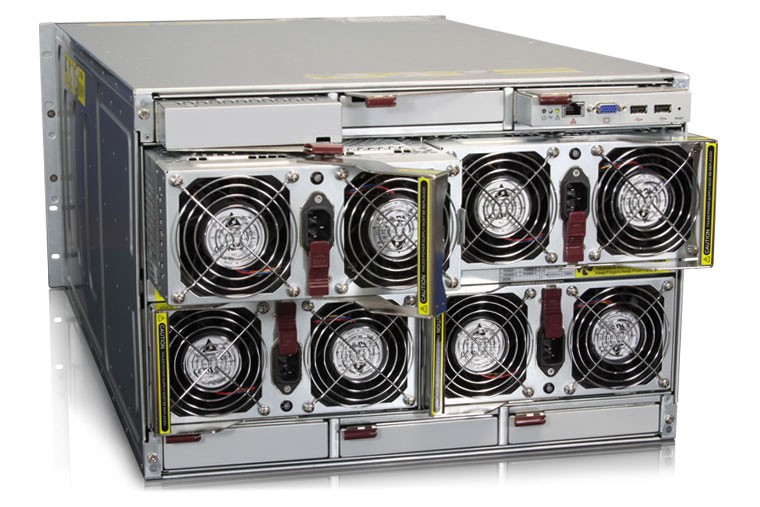

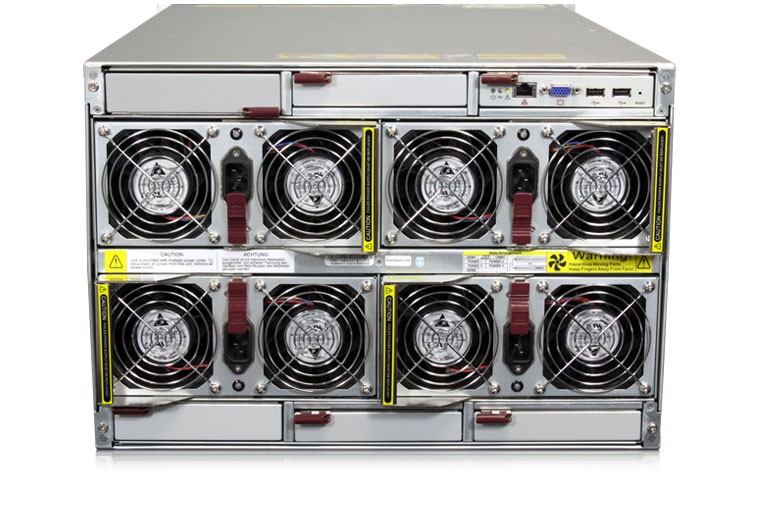

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
Blade Quantity Range : 10 Qty error!
*Please contact our sales for more blade options
- $0.00
SBI-7127R-S6
SBI-7127RG
SBI-7128R-C6
Chassis Management adapter
*Please contact our sales rep. for more options
Added
BMB-CMM-002 (mini-CMM) SuperBlade® chassis management module
+ $389.00
SBM-CMM-001 SuperBlade® chassis management module
+ $556.00
SBM-CMM-003 SuperBlade® chassis management module
+ $479.00
Ethernet Adapter Quantity Range : 2 Qty error!
*Please contact our sales rep. for more options
- $0.00
SBM-GEM-001 (fourteen 1Gbps ports ethernet swith)
+ $489.00
SBM-GEM-X2C+ (twenty 1Gbps ports ethernet switch)
+ $1,799.00
SBM-GEM-X3S+ (twenty 1Gbps ports ethernet w/ SFP+ switch)
+ $1,860.00
1st Network Module
*Please contact our sales rep. for more options
Added
SBM-IBS-Q3616 (Twenty Internal Ports & Sixteen 4 x QDR w/ QSFP 40Gbps Infiniband Switch)
+ $5,808.00
SBM-IBS-Q3616M (Twenty Internal Ports & Sixteen 4 x QDR w/ QSFP 40Gbps Infiniband Switch)
+ $6,191.00
SBM-XEM-X10SM (Ten/Twenty 10 Gigabit Ethernet Switch Module)
+ $7,650.00
2nd Network Module
*Please contact our sales rep. for more options
Added
SBM-IBS-Q3616 (Twenty Internal Ports & Sixteen 4 x QDR w/ QSFP 40Gbps Infiniband Switch)
+ $5,808.00
SBM-IBS-Q3616M (Twenty Internal Ports & Sixteen 4 x QDR w/ QSFP 40Gbps Infiniband Switch)
+ $6,191.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
