Supermicro OfficeBlade® 10 Hot-Plug Processor blade Enclosure w/ Four 1620W Power Supplies

Supermicro OfficeBlade® 10 Hot-Plug Processor blade Enclosure w/ Four 1620W Power Supplies

The SuperBlade® server chassis enclosure greatly simplifies the cabling process by aggregating cabling of ten servers at once. Up to 90% of network, power, and KVM cabling required for ten 1U servers are reduced by moving to blade servers in a single chassis. These cabling reductions continue across networking, SAN connectivity, and management controllers.

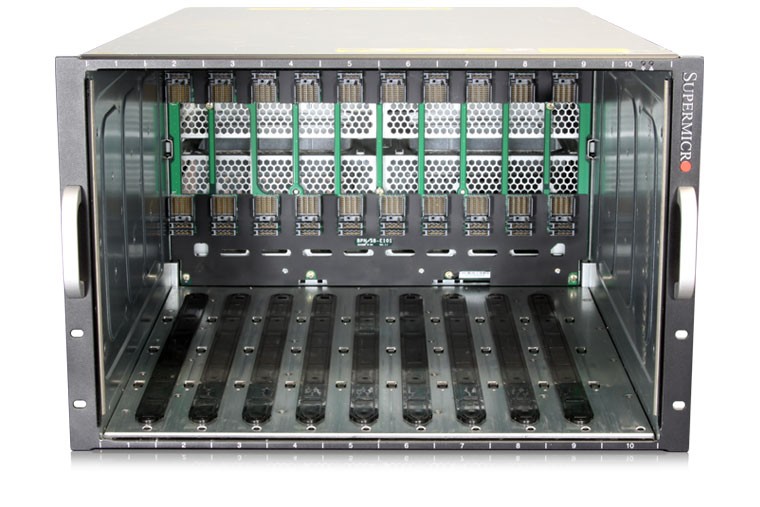

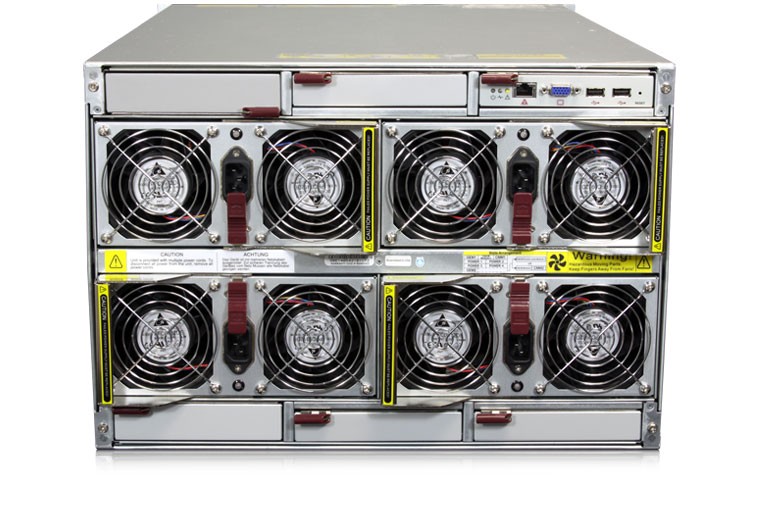

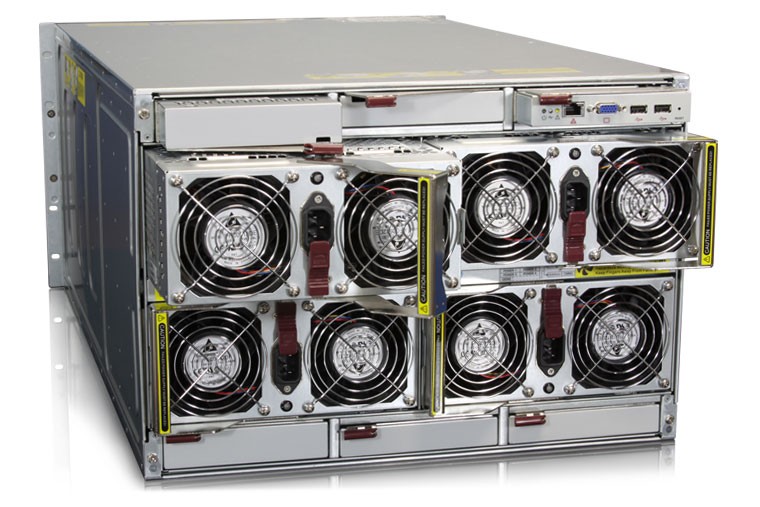

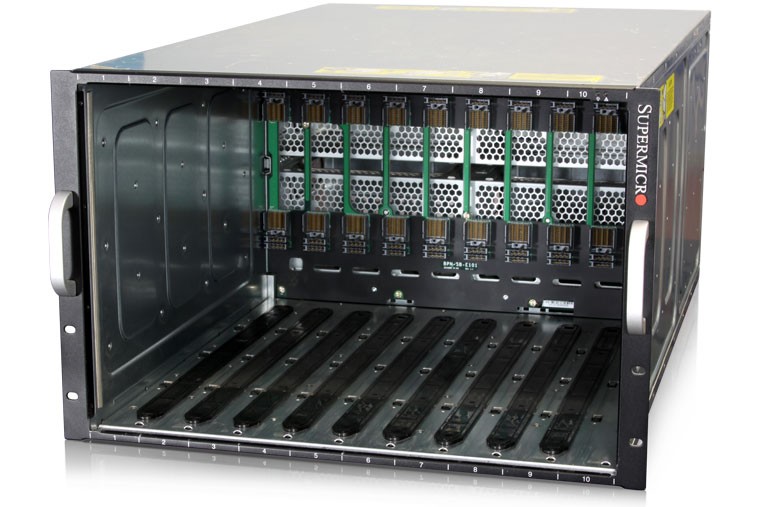

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

SKU

SBE-710E-R48

Details

Processor Blade:
Up to 10 hot-plug processor blades

Module Support:
Supports both Intel and AMD based blades

LED:
Power LED, Fault LED

InfiniBand Switch:
Supports one hot-plug DDR IB switch

Gigabit Ethernet Switch / Pass-Through Module:
Supports up to two hot-plug Gigabit Ethernet switches / Pass-Through Modules

Management Module:
Up to two hot-plug management modules providing remote KVM and IPMI 2.0 functionalities
One management module comes standard with each enclosure

Power Supply:
Up to four hot-swap 1400W / 1620W / 2000W power supplies, N+1 redundant

Cooling Design:
Up to 16 cooling fans

Dimensions (HxWxD):
12.1" x 18.5" x 29"

Note:
1) Dual IB QDR / 10GbE switch module support requires Mini-CMM
2) One IB DDR switch/pass-thru and 10GbE pass-thru module can be supported simultaneously with Mini-CMM installed in 10GbE pass-thru module.
3) When SBM-GEP-T20 installed, one SBM-GEM-X2C+ and one IB QDR switch or 10GbE switch is supported.
