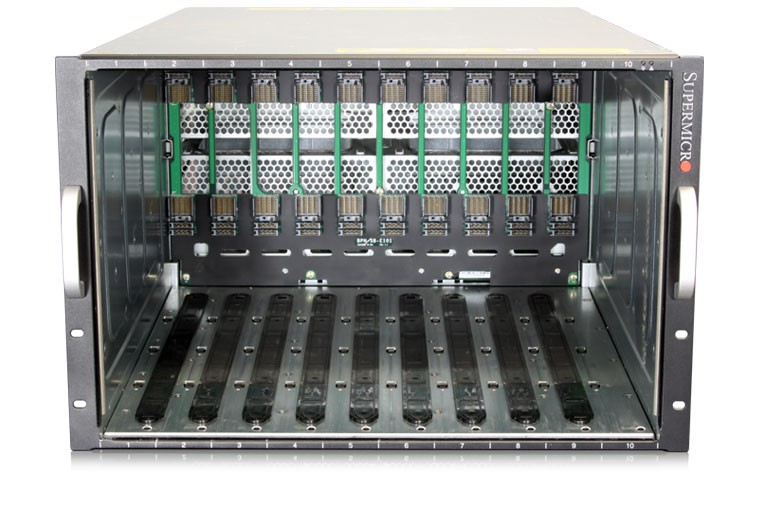

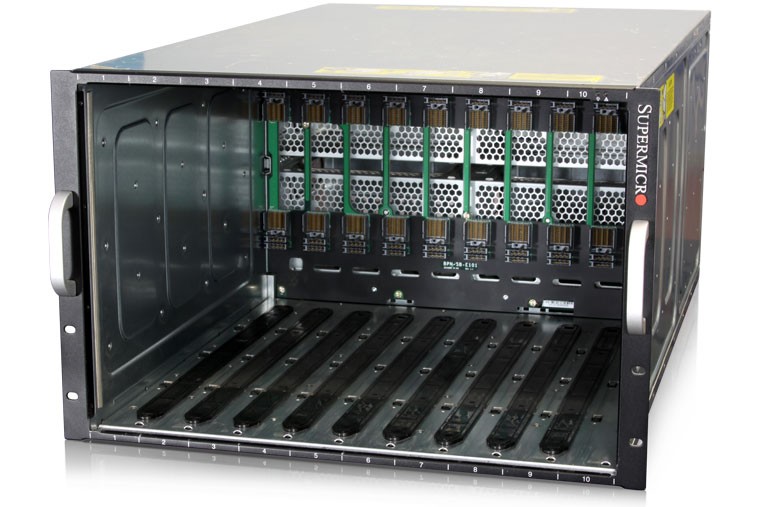

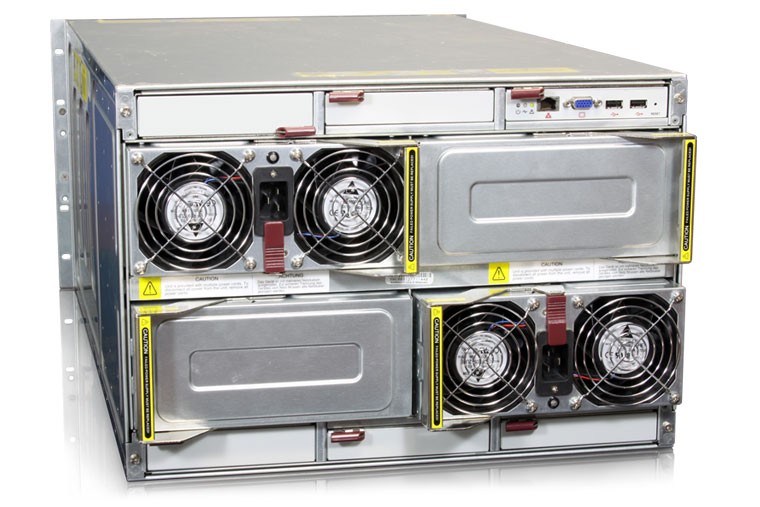

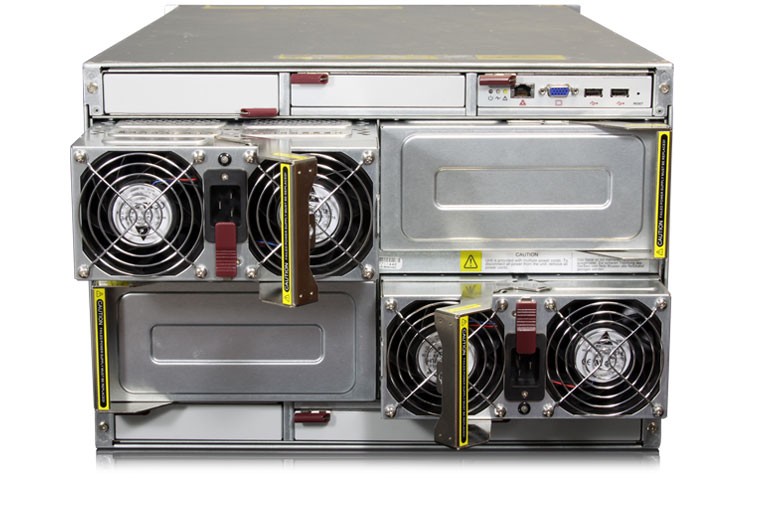

Supermicro OfficeBlade® 10 Hot-Plug Processor Blade Enclosure w/ Two 1620W Power Supplies
The SuperBlade® server chassis enclosure greatly simplifies the cabling process by aggregating cabling of ten servers at once. Up to 90% of network, power, and KVM cabling required for ten 1U servers are reduced by moving to blade servers in a single chassis. These cabling reductions continue across networking, SAN connectivity, and management controllers.
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| SKU | SBE-710E-D32 |
| Details | Processor Blade:
Up to 10 hot-plug processor blades Module Support: Supports both Intel and AMD based blades LED: Power LED, Fault LED InfiniBand Switch: Supports one hot-plug DDR IB switch Gigabit Ethernet Switch / Pass-Through Module: Supports up to two hot-plug Gigabit Ethernet switches / Pass-Through Modules Management Module: Up to two hot-plug management modules providing remote KVM and IPMI 2.0 functionalities One management module comes standard with each enclosure Power Supply: Up to four hot-swap 1400W / 1620W / 2000W power supplies, N+1 redundant Cooling Design: Up to 16 cooling fans Dimensions (HxWxD): 12.1" x 18.5" x 29" Note:
1) Dual IB QDR / 10GbE switch module support requires Mini-CMM 2) One IB DDR switch/pass-thru and 10GbE pass-thru module can be supported simultaneously with Mini-CMM installed in 10GbE pass-thru module.
3) When SBM-GEP-T20 installed, one SBM-GEM-X2C+ and one IB QDR switch or 10GbE switch is supported.
|
|
|
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
Blade Quantity Range : 10 Qty error!
*Please contact our sales for more blade options
- $0.00
SBI-7127R-S6
SBI-7128R-C6
Chassis Management adapter
*Please contact our sales rep. for more options
Added
BMB-CMM-002 (mini-CMM) SuperBlade® chassis management module
+ $389.00
SBM-CMM-001 SuperBlade® chassis management module
+ $556.00
Ethernet Adapter Quantity Range : 2 Qty error!
*Please contact our sales rep. for more options
- $0.00
SBM-GEM-001 (fourteen 1Gbps ports ethernet swith)
+ $489.00
SBM-GEM-X2C+ (twenty 1Gbps ports ethernet switch)
+ $1,799.00
SBM-GEM-X3S+ (twenty 1Gbps ports ethernet w/ SFP+ switch)
+ $1,860.00
1st Network Module
*Please contact our sales rep. for more options
Added
SBM-IBP-D14 (Fourteen Internal & External 4 x DDR Ports 20Gbps InfiniBand Pass-Through Switch)
+ $999.00
SBM-XEM-002M (Fourteen 10Gbps Ethernet Pass-Thru Module)
+ $1,245.00
SBM-IBS-001 (Fourteen Internal 4 x DDR Ports & Ten 4 x DDR External Ports 20Gbps IB Switch)
+ $4,398.00
2nd Network Module
*Please contact our sales rep. for more options
Added
SBM-XEM-002M (Fourteen 10Gbps Ethernet Pass-Thru Module)
+ $1,245.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
