946ED-R2KJBOD

Please Inquire

Supermincro 4U 90-bay Top-loading SAS3 12Gb/s Dual Expander JBOD

Extreme High Density and High Capacity Dual-path Storage Enclosure

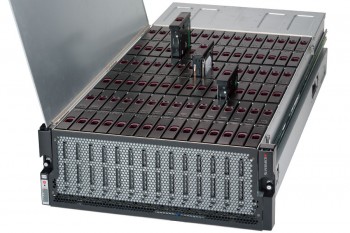

Support 90 x 3.5” or 2.5” Top Loading SAS3 12Gb/s Hot-swappable HDDs

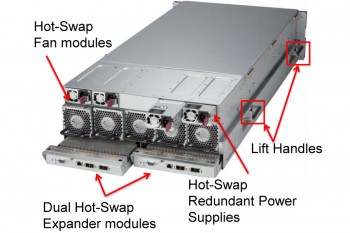

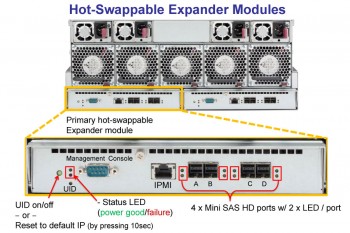

Hot-swappable Expanders with redundant BMC

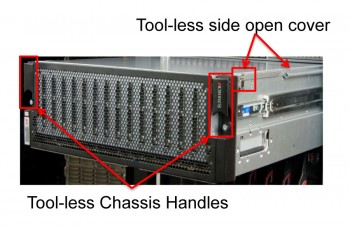

Hot-swappable Tool-less Modular Design
High Performance up to 20+ GB/s data transfer rate

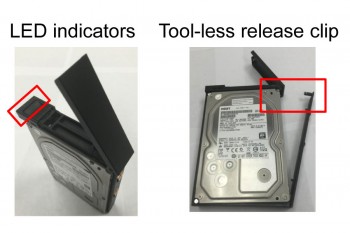

Tool-less HDD tray with HDD LED indicator
SCSI Enclosure Services (SES 3.0) compliant

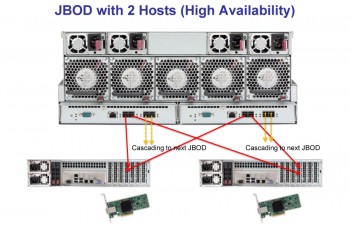

Flexible to configure up to 4 Hosts HDD Zoning and individual HDD power cycling

For quality assurance purpose, the product is required to be sold as complete system with HDDs fully integrated and tested. Please contact sales representative for validated HDDs.

SPECIFICATIONS

SKU	946ED-R2KJBOD

Chassis

4U Chassis

Dimensions

Height:
7" (178mm)
Width:
17.6" (447mm)
Depth:
35.66" (906mm)

Front Panel

Buttons:
Power On/Off button
Unit Identification (UID) button
LEDs:
2 Network Activity LEDs
Power Fail LED
System Information LED
Unit Identification (UID) LED

HDD Drive Bays

90 x 3.5"/2.5" hot-swap SAS drive bay with SES3
SAS HDD only recommended

Power Supply

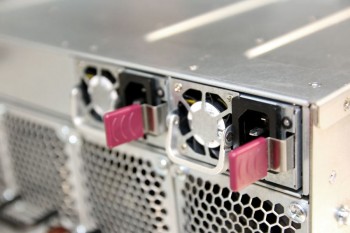

1U 1000W Redundant Single Output Power Supply Titanium Level
AC Input:
100-127 V, 50-60 Hz
200-240 V, 50-60 Hz
+12V:
Max: 66.7A (100Vac-127Vac)
Max: 83A (200Vac-240Vac)
12V SB:
Max: 2.1A
Certification:
80+ Titanium Level

Regulatory (Power Supply)

Power Supply Safety / EMC:
USA - UL listed, FCC
Canada - CUL listed
Germany - TUV Certified
Europe/CE Mark
EN 60950/IEC 60950-Compliant

Cooling

5x 80mm heavy duty fans with PWM fan speed control

Operating Environment

Operating Temperature Range:
5°C ~ 35°C (41°F ~ 95°F)
Non-Operating Temperature Range:
-40°C ~ 60°C (-40°F ~ 140°F)
Operating Relative Humidity Range:
8% ~ 90% (non-condensing)
Non-Operating Relative Humidity Range:
5% - 95% (non-condensing)

Details

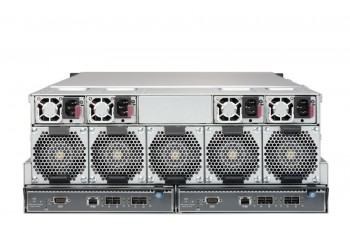

Expander Module

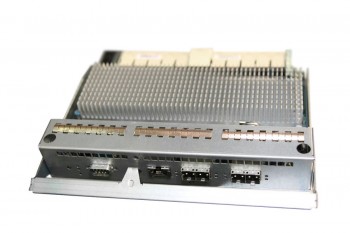

Dual hot-swappable SAS3 expander module

PHOTOS

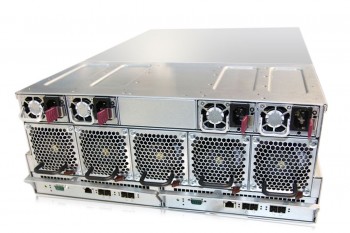

946ED-R2KJBOD
