1123US-TR4

Please Inquire

SuperMicro 1U 10Bays Dual Processoer AMD Rackmount Server

Dual AMD EPYC 7002-Series Processors
System on Chip (SoC)
Up to 4TB Registered ECC DDR4 2666MHz SDRAM in 32 DIMMs
(7001 Processors)
Up to 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
(Board revision 2.x required + 7002 Processors)
2x PCI-E x16 (FH/HL 9.5") slots
2x PCI-E x8 slots (1LP, 1 internal LP)
Integrated IPMI 2.0 + KVM with dedicated LAN
Quad Gigabit LAN ports via Intel i350AM4
10x hot-swap 2.5" SATA3 by default
or 8 SATA3 + 2 NVMe (optional)
or 8 SAS3 ports + 2 SATA3 (SAS card is optional)
1000W Redundant (1+1) Power Supplies Titanium Level (96%+)
Virtualization, Cloud Computing, High End Enterprise Server, Flexible Networking Options

Storage configuration notice:
Hot-swap:
10x 2.5" SATA3 HDD
or 8x 2.5" SATA3 + 2x 2.5" NVMe
or 8x 2.5" SAS3 + 2x 2.5" SATA3 HDD
M.2:
2x M.2 Drive

Due to the complexity of integration, this product is sold as completely assembled systems only (including but not limited to CPUs, memory, and HDDs). Please contact our sales rep for special requirements.

SPECIFICATIONS

SKU	AS-1123US-TR4

Processor

CPU:
Dual AMD EPYC™ 7002-series Processors
Socket SP3

Chipset:
System on Chip (SoC)

Memory

Memory Capacity:
32 DIMM slots
Supports up to 4TB Registered ECC DDR4 2666MHz SDRAM (7001 Processors)
Supports up to 8TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required + 7002 Processors)
8-channel memory bus

Memory Type:
DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs (7001 Processors)
DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required + 7002 Processors)

DIMM Sizes:
4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB*
(* Board revision 2.x required + 7002 Processors)

Memory Voltage:
1.2V

Error Detection:
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

Chassis

1U Rackmount Chassis

Dimensions

Height:
1.7" (43mm)

Width:
17.2" (437mm)

Depth:
27.82" (707mm)

Front Panel

Buttons:
Power On/Off button
System Reset button

LEDs:
Power LED
Hard drive activity LED
2x Network activity LEDs
System Overheat LED / Fan fail LED /
UID LED

Bios	BIOS Type: AMI 128Mb SPI Flash EEPROM BIOS Features: Plug and Play (PnP) DMI 2.3 PCI 2.2 ACPI 5.1 USB Keyboard Support SMBIOS 3.1.1

Onboard Devices

VGA:
ASPEED AST2500 BMC

HDD Drive Bays

10x 2.5" hot-swap SATA3

or 8x SATA3 + 2x NVMe drive bays (optional)

HDD Backplane

Supports 10x SATA3 or 8x NVMe + 2x NVMe or 8x SAS3 + 2x SATA3 HDD

Expansion Slots

2x PCI-E x16 (FH/HL 9.5") slots
2x PCI-E x8 (LP) slot (1 LP, 1 internal LP)
(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)

Power Supply

1000W Redundant Power Supplies with PMBus
Total Output Power:
800W/1000W

Dimension (W x H x L):
73.5 x 40 x 203 mm

Input:
100-127Vac / 9.8 - 7A / 50-60Hz
200-240Vac / 7 - 5A / 50-60Hz

+12V:
Max: 66.7A / Min: 0A (100-127Vac)
Max: 83A / Min: 0A (200-240Vac)

12Vsb:
Max: 2.1A / Min: 0A

Output Type:
25 Pairs Gold Finger Connector

Certification:
UL/cUL/CB/BSMI/CE/CCC
Titanium Level

Input Output

SATA:
10x SATA3 (6 Gbps) ports

LAN:
Quad Gigabit LAN ports
1x RJ45 Dedicated IPMI LAN port

USB:
5x USB 3.0 ports (2 rear + 2 via header + 1 Type A)

VGA:
1x VGA port

SAS:
8x SAS3 ports support via optional Add-on Card

NVMe:
2x NVMe support with optional cables
Others:
1x COM port (rear)
2x SATA DOM power connector
TPM 1.2 header

Cooling

Fans:
8x heavy-duty PWM fans with optimal fan speed control

Air Shroud:
2x Air Shroud

Operating Environment

RoHS:
RoHS Compliant

Environmental Spec.:
Operating Temperature:
10°C to 35°C (50°F to 95°F)
Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)

Details

PC Health Monitoring

CPU:
Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT
CPU switching voltage regulator

FAN:
Up to 8-fan status tachometer monitoring
Up to eight 4-pin fan headers
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors

Temperature:
Monitoring for CPU and chassis environment
CPU Thermal Trip Support
Thermal control for 8x Fan connectors
I2C Temperature Sensing Logic

LED:
CPU / System Overheat LED

Other Features:
Chassis Intrusion Detection
Chassis Intrusion Header

PHOTOS

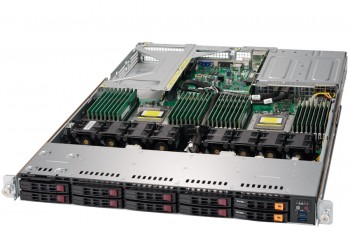

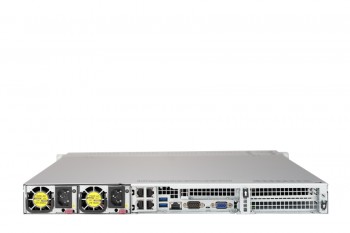

1123US-TR4
