6039P-TXRT

Please Inquire

Supermicro 3U 8Bays Dual 2nd Gen Scalable Processor Rackmount Server

Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
16 DIMMs; up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
2 PCI-E 3.0 x16 slots, 2 PCI-E 3.0 x16 slots (or 4 PCI-E 3.0 x8), 4 PCI-E 3.0 x8 slots, 1 PCI-E 3.0 x4 (in x8 slot)
8 Hot-swap 3.5" drive bays, 2 5.25" drive bays, 1 slim DVD-ROM drive bay, 1 FDD bay
2x 10GBase-T LAN ports with Intel X550-AT2
Integrated IPMI 2.0 with KVM and Dedicated LAN
1 PCI-E 3.0 x4 M.2 2280 slot from PCH
3 middle fans & 1 rear exhaust fan
980W Redundant Power Supplies Platinum Level (94%)
Industrial Server Solutions, Surveillance DCR, GPU support server, Flash Array Server, Data Acquisitions, Video and Music Production

Storage configuration notice:
Hot-swap:
8x Hot-swap 3.5" drive bays
Others:
2x 5.25" drive bays

SKU	SYS-6039P-TXRT

Processor

CPU:
Dual Socket P (LGA 3647)
2nd Gen. Intel® Xeon® Scalable Processors (Cascade Lake/Skylake), 3 UPI up to 10.4GT/s
Support CPU TDP 205W
Cores:
Up to 28 Cores
Note:
BIOS version 3.0a or above is required to support 2nd Gen. Intel® Xeon® Scalable processors

Memory

Memory Capacity:
16 DIMM slots
Up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM
Memory Type:
2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note:
2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
Cascade Lake only. Contact our sales rep for more info.

Chassis

3U Server Chassis

Dimensions

Width:
17.2" (437mm)
Height:
5.2" (132mm)
Depth:
25.5" (648mm)

Front Panel

Buttons:
Power On/Off button
System Reset button
LEDs:
Power status LED
Hard drive activity LED
Network activity LEDs
System information (overheat/UID) LED
Power fail LED

Bios	BIOS Type: AMI UEFI

Onboard Devices

Chipset:
Intel® C621 chipset
SATA:
SATA3 (6Gbps) with RAID 0, 1, 5, 10
Network Controllers:
Intel® X550-AT2 Dual Port 10GBase-T
IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics:
ASPEED AST2500 BMC

HDD Drive Bays

Hot-swap:
8x Hot-swap 3.5" drive bays
Others:
2x 5.25" drive bays
Backplane:
1x SAS/SATA backplane

Optical Drive

1x slim DVD-ROM drive

Expansion Slots

2x PCI-E 3.0 x16 slots (HSSI)
2x PCI-E 3.0 x16 slots (or 4 PCI-E 3.0 x8 by Mixed)
4x PCI-E 3.0 x8 slots
1x PCI-E 3.0 x4 (in x8 slot)

Power Supply

850W/980W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus
AC Input:
100-140 V, 50-60 Hz, 11.5-6.5 Amp
180-240 V, 50-60 Hz, 6.5-4.5 Amp
DC Output:
4 Amp @ +5V Standby
70 Amp @ +12V (100-140Vac)
81 Amp @ +12V (180-240Vac)
With Power Distributor:
+5V: 30 Amp
+3.3V: 28 Amp
-12V: 0.6 Amp
Certification:
Platinum Level

Input Output

Serial ATA:

10x SATA3 (6Gbps) ports

LAN:

2x RJ45 10GBase-T ports

1x RJ45 Dedicated IPMI LAN port

USB:

2x USB 3.0 ports (rear)

2x USB 2.0 ports (rear)

Serial Port / Header

1x COM port

VGA:

1x VGA port

DOM:

2x SuperDOM (Disk on Module) ports

TPM:

1x TPM 2.0 Header

Cooling

3x Middle fans
1x Rear exhaust fan

Operating Environment

RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature:
10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
-40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)

Details

Management
Software:
Intel® Node Manager
IPMI 2.0
KVM with dedicated LAN
NMI
SSM, SPM, SUM
SuperDoctor® 5
Power Configurations:
ACPI Power Management

PC Health Monitoring
CPU:
Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator
FAN:
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for 8x fan connectors

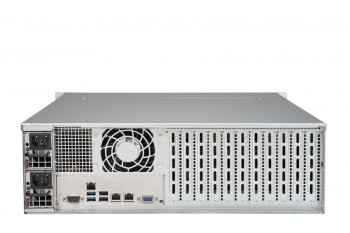

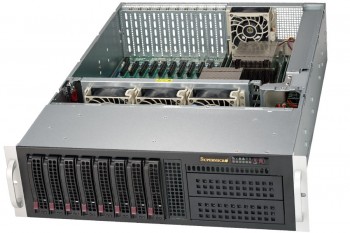

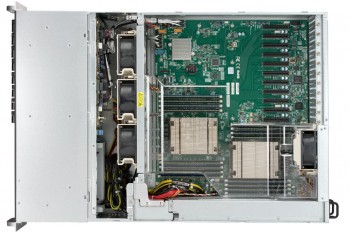

PHOTOS

6039P-TXRT

MY CONFIGURATION

CPU

Intel® Xeon® Scalable 2nd Gen Gold Processor 5218R (2.10 Ghz 125W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 5222 (3.80 Ghz 105W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 5215 (2.50 Ghz 85W)

Intel® Xeon® Scalable Platinum Processor 8180 (2.50 Ghz 205W)

Intel® Xeon® Scalable Platinum Processor 8176 (2.10 Ghz 165W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 6242R (3.10 Ghz 205W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 6258R (2.70 Ghz 205W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 5220R (2.20 Ghz 150W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 6238R (2.20 Ghz 165W)

Intel® Xeon® Scalable 2nd Gen Silver Processor 4216 (2.10 Ghz 100W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 6248R (3.00 Ghz 205W)

Intel® Xeon® Scalable 2nd Gen Bronze Processor 3206R (1.90 Ghz 85W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 6226R (2.90 Ghz 150W)

Intel® Xeon® Scalable 2nd Gen Silver Processor 4210R (2.40 Ghz 100W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 6246R (3.40 Ghz 205W)

Intel® Xeon® Scalable Platinum Processor 8180M (2.50 Ghz 205W)

Intel® Xeon® Scalable Platinum Processor 8176M (2.10 Ghz 165W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 6254 (3.10 Ghz 200W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 6230R (2.10 Ghz 150W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 6240R (2.40 Ghz 150W)

Intel® Xeon® Scalable 2nd Gen Silver Processor 4214R (2.40 Ghz 100W)

Intel® Xeon® Scalable 2nd Gen Silver Processor 4215R (3.20 Ghz 130W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 6242 (2.80 Ghz 150W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 6262 (1.90 Ghz 135W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 6252 (2.10 Ghz 150W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 6248 (2.50 Ghz 150W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 6240 (2.60 Ghz 150W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 6230 (2.10 Ghz 125W)

Intel® Xeon® Scalable 2nd Gen Bronze Processor 3204 (1.90 Ghz 85W)

Added

Intel® Xeon® Scalable 2nd Gen Gold Processor 6222 (1.80 Ghz 115W)

Intel® Xeon® Scalable 2nd Gen Silver Processor 4215 (2.50 Ghz 85W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 5218 (2.30 Ghz 125W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 5220 (2.20 Ghz 125W)

MEMORY

Samsung 32GB DDR4 2933 ECC RDIMM Memory

Samsung 128GB DDR4 3200 ECC LRDIMM Memory

Samsung 64GB DDR4 2933 ECC LRDIMM Memory

Hynix 64GB DDR4 2666 ECC LRDIMM Memory

Samsung 32GB DDR4 3200 ECC RDIMM Memory

Samsung 16GB DDR4 3200 ECC RDIMM Memory

Samsung 64GB DDR4 3200 ECC RDIMM Memory

Samsung 8GB DDR4 3200 ECC RDIMM Memory

Samsung 64GB DDR4 2933 ECC RDIMM Memory

Samsung 16GB DDR4 2933 ECC RDIMM Memory

Samsung 8GB DDR4 2933 ECC RDIMM Memory

Added

Enterprise-Class HDD/SSD

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 6TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 2TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 12TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 4TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 14TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 8TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 10TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 16TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 20TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 22TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 20TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 12TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 6TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 4TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 8TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 14TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 10TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 18TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 16TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 18TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB

OPTICAL DRIVE

*No CD-ROM

Added

Slim Internal DVD-RW

RAID CONTROLLER CARD

*NO RAID Controller Card

Added

Broadcom 9500-8i SAS3/SATA/NVMe 8-Port HBA

Broadcom MegaRAID 9560-8i SAS3/SATA/NVMe 8-Port RAID Controller

Areca ARC-1886-8i 8 Ports SAS/SATA/NVMe RAID Controller Card

Areca ARC-1886-8X8i 8+8 Ports SAS/SATA/NVMe RAID Controller Card

Broadcom MegaRAID 9580-8i8e SAS3/SATA/NVMe 8+8-Port RAID Controller

Areca ARC-1886-4x12i 4+12 Ports SAS/SATA/NVMe RAID Controller Card

NETWORK CARD

Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)

Broadcom NetXtreme 50G PCIe 3.0 x8 Ethernet Card (1x QSFP28)

Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)

Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)

Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)

Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)

Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)

Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)

Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)

Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)

*No Network Card

Added

Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)

Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)

Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)

Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)

Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)

Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)

Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)

Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)

Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)

Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)

OPERATING SYSTEM

*Please contact our sales for more operating system options

Added

Debian Linux (No Media) (32-Bit/64-Bit)

Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)

Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)

Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)

Fedora Linux Workstation Edition 64-bit (No Media)

CentOS Enterprise Linux (No Media) (32-Bit/64-bit)

Microsoft Windows Server 2012 Standard R2 64-bit-1User

WARRANTY

*1 Year Parts Replacement Warranty

Added

3 Year Parts Replacement Warranty - Server Value $500 to $2000

3 Year Parts Replacement Warranty - Server Value $2001 to $4000

3 Year Parts Replacement Warranty - Server Value $4001 to $7000

3 Year Parts Replacement Warranty - Server Value $7001 to $10000

3 Year Parts Replacement Warranty - Server Value Over $10000

Please Inquire
	ADD TO QUOTE
