6029U-E1CR25M

Please Inquire

Supermicro 2U 12Bays Dual 2nd Gen Scalable Processor Rackmount Server

Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
1 PCI-E 3.0 x16 slot (FH, 10.5" L), 5 PCI-E 3.0 x8 slots (FH, 10.5" L), 1 PCI-E 3.0 x8 slot (LP), 1 PCI-E 3.0 x8 slot (internal LP)
2 25GbE SFP28 Ethernet ports
12 Hot-swap 3.5" drive bays: 12 SAS3 via opt. AOC (4 hybrid ports - opt. 4 NVMe), Optional 2 hot-swap 2.5" rear drive bays for SSDs; Optional M.2 NVMe and SATA3 ports
4 Heavy duty 8cm PWM fans
1000W High efficiency (96%) Redundant PSU; Titanium Level
Virtualization, Hyperconverge Storage, Cloud Computing, High End Enterprise Server, Flexible Networking Options

Storage configuration notice:
Hot-swap:
12x Hot-swap 3.5" drive bays
12x SAS3 via opt. AOC
(4x hybrid ports - opt. 4x NVMe)
Note: Storage Add-on card is required
M.2:
1x M.2 PCI-E 3.0 x4 M-Key NVMe or 1x M.2 M-Key SATA3 (2240/2260/2280/22110) via optional riser card (see optional parts list)
2x M.2 PCI-E 3.0 x4 M-Key NVMe (2260/2280/22110) via optional add-on card AOC-SLG3-2M2

To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs and 4 DIMMs).

SPECIFICATIONS

SKU	SYS-6029U-E1CR25M

Processor

CPU:
Dual Socket P (LGA 3647)
2nd Gen. Intel® Xeon® Scalable Processors (Cascade Lake/Skylake), Dual UPI up to 10.4GT/s
Support CPU TDP 70-205W
Cores:
Up to 28 Cores
Note:
BIOS version 3.0a or above is required to support 2nd Gen. Intel® Xeon® Scalable processors

Memory

Memory Capacity:
24 DIMM slots
Up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM
Memory Type:
2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
2666 ECC DDR4 NVDIMM
Note:
2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
Cascade Lake only. Contact your Supermicro sales rep for more info.

Chassis

2U Rackmount Chassis

Dimensions

Width:
17.2" (437mm)
Height:
3.5" (89mm)
Depth:
28.46" (723mm)

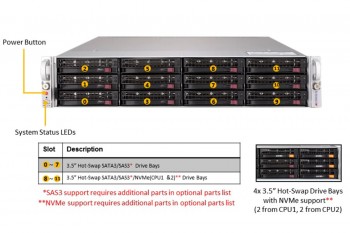

Front Panel

Buttons:
Power On/Off button
System Reset button
LEDs:
Power status LED
HDD activity LED
Network activity LEDs
System information (overheat/UID) LED

Bios	BIOS Type: AMI 32Mb SPI Flash ROM

Onboard Devices

Chipset:
Intel® C621 chipset
SATA:
SATA3 (6Gbps) with RAID 0, 1, 5, 10
Network Connectivity:
2x 25GbE SFP28 ports via AOC-2UR68-M2TS-O (Mellanox ConnectX-4 Lx EN)
IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics:
ASPEED AST2500 BMC

HDD Drive Bays

12x Hot-swap 3.5" drive bays
12x SAS3 via opt. AOC
(4x hybrid ports - opt. 4x NVMe)
Note: Storage Add-on card is required
Backplane:
2U SAS/SATA backplane

Expansion Slots

1x PCI-E 3.0 x16 (FH, 10.5" L)
5x PCI-E 3.0 x8 (FH, 10.5" L)
1x PCI-E 3.0 x8 (LP)
1x PCI-E 3.0 x8 (internal LP)
(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)

Power Supply

1000W Redundant Power Supplies with PMBus
Total Output Power:
800W/1000W
Dimension (W x H x L):
73.5 x 40 x 203 mm
Input:
100-127Vac / 9.8 - 7A / 50-60Hz
200-240Vac / 7 - 5A / 50-60Hz
+12V:
Max: 66.7A / Min: 0A (100-127Vac)
Max: 83A / Min: 0A (200-240Vac)
12Vsb:
Max: 2.1A / Min: 0A
Output Type:
25 Pairs Gold Finger Connector
Certification:
UL/cUL/CB/BSMI/CE/CCC
Titanium Level

Input Output

SAS:
12x SAS3 ports via expander and AOC
LAN:
2x 25GbE SFP28 ports
1x RJ45 Dedicated IPMI LAN port
USB:
3x USB 3.0 ports (2x rear, 1x Type A)
Video:
2x VGA ports (1x rear, 1x onboard)
Serial Port / Header:
1x Serial header
DOM:
2x SuperDOM (Disk on Module) ports

Cooling

4x Heavy duty 8cm PWM fans

Operating Environment

RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature:
10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
-40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)

Details

Management
Software:
Intel® Node Manager
IPMI 2.0
KVM with dedicated LAN
NMI
SSM, SPM, SUM
SuperDoctor® 5
Power Configurations:
ACPI Power Management

PC Health Monitoring
CPU:
Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator
FAN:
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for 8x fan connectors

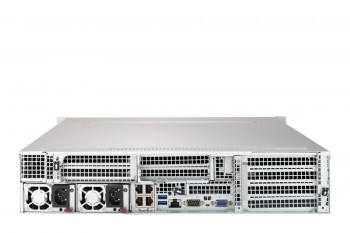

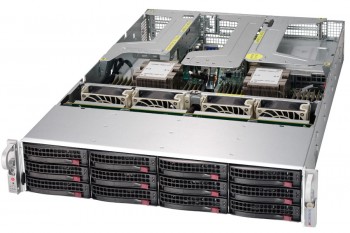

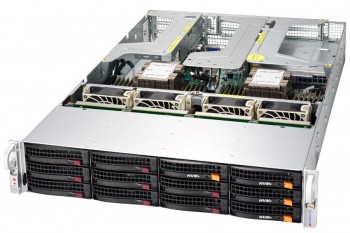

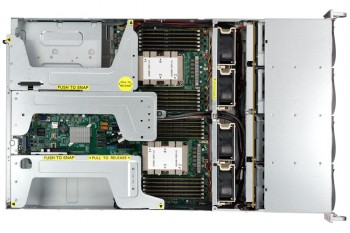

PHOTOS

6029U-E1CR25M

MY CONFIGURATION

CPU

Intel® Xeon® Scalable 2nd Gen Gold Processor 5218R (2.10 Ghz 125W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 5215 (2.50 Ghz 85W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 5220 (2.20 Ghz 125W)

Intel® Xeon® Scalable Platinum Processor 8180 (2.50 Ghz 205W)

Intel® Xeon® Scalable Platinum Processor 8176 (2.10 Ghz 165W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 6242R (3.10 Ghz 205W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 6258R (2.70 Ghz 205W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 6238R (2.20 Ghz 165W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 5220R (2.20 Ghz 150W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 5218 (2.30 Ghz 125W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 6248R (3.00 Ghz 205W)

Intel® Xeon® Scalable 2nd Gen Bronze Processor 3206R (1.90 Ghz 85W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 6226R (2.90 Ghz 150W)

Intel® Xeon® Scalable 2nd Gen Silver Processor 4210R (2.40 Ghz 100W)

Intel® Xeon® Scalable Platinum Processor 8176M (2.10 Ghz 165W)

Intel® Xeon® Scalable Platinum Processor 8180M (2.50 Ghz 205W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 6246R (3.40 Ghz 205W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 6248 (2.50 Ghz 150W)

Intel® Xeon® Scalable 2nd Gen Silver Processor 4214R (2.40 Ghz 100W)

Intel® Xeon® Scalable 2nd Gen Silver Processor 4215R (3.20 Ghz 130W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 6230R (2.10 Ghz 150W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 6240R (2.40 Ghz 150W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 6262 (1.90 Ghz 135W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 6242 (2.80 Ghz 150W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 6252 (2.10 Ghz 150W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 6254 (3.10 Ghz 200W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 6240 (2.60 Ghz 150W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 5222 (3.80 Ghz 105W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 6222 (1.80 Ghz 115W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 6230 (2.10 Ghz 125W)

Intel® Xeon® Scalable 2nd Gen Silver Processor 4216 (2.10 Ghz 100W)

Intel® Xeon® Scalable 2nd Gen Bronze Processor 3204 (1.90 Ghz 85W)

Added

Intel® Xeon® Scalable 2nd Gen Silver Processor 4215 (2.50 Ghz 85W)

MEMORY

Samsung 8GB DDR4 2933 ECC RDIMM Memory

Added

Samsung 64GB DDR4 2933 ECC LRDIMM Memory

Hynix 64GB DDR4 2666 ECC LRDIMM Memory

Samsung 128GB DDR4 3200 ECC LRDIMM Memory

Samsung 8GB DDR4 3200 ECC RDIMM Memory

Samsung 64GB DDR4 3200 ECC RDIMM Memory

Samsung 32GB DDR4 3200 ECC RDIMM Memory

Samsung 16GB DDR4 3200 ECC RDIMM Memory

Samsung 32GB DDR4 2933 ECC RDIMM Memory

Samsung 16GB DDR4 2933 ECC RDIMM Memory

Samsung 64GB DDR4 2933 ECC RDIMM Memory

Enterprise-Class HDD/SSD

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 20TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 14TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 4TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 6TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 10TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 12TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 8TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 18TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 16TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 16TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 18TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 22TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 20TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 10TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 6TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 4TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 8TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 14TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 12TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 2TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB

NVMe M.2

Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB

Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB

Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB

SAMSUNG PM9A3 M.2 Nvme SSD 960GB

Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB

SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB

SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB

Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB

WD Black SN850 M.2 G4 NVMe SSD 1TB

Micron 7400 Pro NVMe M.2 (22x80) SSD 960GB

Micron 7400 Pro NVMe M.2 (22x80) SSD 480GB

WD Black SN850 M.2 G4 NVMe SSD 2TB

Micron 7400 Pro NVMe M.2 (22x110) SSD 1.92TB

Samsung 983 DCT M.2 NVMe SSD 960GB

Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB

WD Black SN850 M.2 G4 NVMe SSD 500GB

Micron 7400 Pro NVMe M.2 (22x110) SSD 3.84TB

Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB

Micron 7400 MAX NVMe M.2 (22x80) SSD 800GB

Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB

Micron 7400 MAX NVMe M.2 (22x80) SSD 400GB

Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB

Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB

Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB

Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB

Samsung 983 DCT M.2 NVMe SSD 1.92TB

*No NVMe M.2 Drives

Added

(Optional) Enterprise-Class HDD/SSD

Micron 7400 MAX NVMe U.3 (7mm) SSD 800GB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 6TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 14TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 12TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 4TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 8TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 10TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 16TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 18TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 18TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 16TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 20TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB

Micron 7400 MAX NVMe U.3 (7mm) SSD 1.6TB

Micron 7400 MAX NVMe U.3 (7mm) SSD 6.4TB

Samsung 983 DCT 2.5" U.2 NVMe SSD 960GB

Micron 7400 MAX NVMe U.3 (7mm) SSD 3.2TB

Samsung 983 DCT 2.5" U.2 NVMe SSD 1.9TB

Micron 7450 PRO NVMe U.3 (15mm) SSD 960GB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 22TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 20TB

Micron 7400 PRO NVMe U.3 (7mm) SSD 960GB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 4TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 8TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 10TB

*No Hard Drive

Added

Micron 7400 PRO NVMe U.3 (7mm) SSD 3.84TB

Micron 7400 PRO NVMe U.3 (7mm) SSD 7.68TB

Micron 7400 PRO NVMe U.3 (7mm) SSD 1.92TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 6TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 12TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 14TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 2TB

RAID CONTROLLER CARD

*NO RAID Controller Card

Added

Broadcom 9500-8i SAS3/SATA/NVMe 8-Port HBA

Broadcom MegaRAID 9560-8i SAS3/SATA/NVMe 8-Port RAID Controller

LSI 9560-16I TRI MODE NVMe RAID CONTROLLER

Areca ARC-1886-8i 8 Ports SAS/SATA/NVMe RAID Controller Card

Areca ARC-1886-16i 16 Ports SAS/SATA/NVMe RAID Controller Card

Areca ARC-1886-8X8i 8+8 Ports SAS/SATA/NVMe RAID Controller Card

Broadcom MegaRAID 9580-8i8e SAS3/SATA/NVMe 8+8-Port RAID Controller

Areca ARC-1886-4x12i 4+12 Ports SAS/SATA/NVMe RAID Controller Card

NETWORK CARD

Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)

Broadcom NetXtreme 50G PCIe 3.0 x8 Ethernet Card (1x QSFP28)

Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)

Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)

Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)

Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)

Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)

Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)

Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)

Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)

*No Network Card

Added

Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)

Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)

Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)

Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)

Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)

Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)

Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)

Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)

Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)

Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)

GPU/Coprocessor

*No GPU

Added

NVIDIA L40S 48GB GDDR6 GPU Card

NVIDIA A100 80GB HBM2e GPU Card

ASUS GeForce RTX 3080 TURBO GDDR6 Video Card 10G

NVIDIA RTX 4000 ADA GDDR6 Video Card 20GB

GIGABYTE GeForce RTX 3090 TURBO Video Card 24G

NVIDIA RTX 5000 ADA GDDR6 Video Card 32GB

ASUS GeForce RTX 3090 TURBO GDDR6 Video Card 24G

NVIDIA RTX 4500 ADA GDDR6 Video Card 24GB

ASUS GeForce RTX 3070 TURBO V2 Lite Hash Rite(LHR) Video Card 8GB

NVIDIA RTX 6000 ADA GDDR6 Video Card 48GB

OPERATING SYSTEM

*Please contact our sales for more operating system options

Added

CentOS Enterprise Linux (No Media) (32-Bit/64-bit)

Debian Linux (No Media) (32-Bit/64-Bit)

Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)

Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)

Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)

Fedora Linux Workstation Edition 64-bit (No Media)

Microsoft Windows Server 2022 Standard 64-bit-1User

Microsoft Windows Server 2012 Standard R2 64-bit-1User

Microsoft Windows Server 2012 DataCenter Edition 64-bit

WARRANTY

*1 Year Parts Replacement Warranty

Added

3 Year Parts Replacement Warranty - Server Value $500 to $2000

3 Year Parts Replacement Warranty - Server Value $2001 to $4000

3 Year Parts Replacement Warranty - Server Value $4001 to $7000

3 Year Parts Replacement Warranty - Server Value $7001 to $10000

3 Year Parts Replacement Warranty - Server Value Over $10000

Please Inquire
	ADD TO QUOTE

2674

2771.0000
