R181-NA0

$2,660.00

ADD TO CART

OVERVIEW

Gigabyte 1U 10Bays Dual 2nd Gen Scalable Processor Rackmount Server

Intel® Xeon® Processor Scalable Family
6-Channel RDIMM/LRDIMM DDR4, 24 x DIMMs
Dual 1Gb/s LAN ports (Intel® I350-AM2)
1x Dedicated management port
10x 2.5" U.2 hot-swappable HDD/SSD bays
1x PCIe Gen3 x16 expansion slot
1x OCP Gen3 x16 mezzanine slot
Aspeed® AST2500 remote management controller
Dual 1200W 80 PLUS Platinum redundant power supply

Storage configuration notice:
Hot-swap:
10 x 2.5" U.2/ SAS/ SATA hot-swappable HDD/SSD bays

SPECIFICATIONS

SKU

R181-NA0

Processor

2nd Generation Intel® Xeon® Scalable and Intel® Xeon® Scalable Processors
Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor and Intel® Xeon® Bronze Processor
CPU TDP up to 205W
NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable

Memory

24 x DIMM slots
DDR4 memory supported only
6-channel memory architecture
RDIMM modules up to 64GB supported
LRDIMM modules up to 128GB supported
Supports Intel® Optane™ DC Persistent Memory (DCPMM)
1.2V modules: 2933( 1DPC)/2666/2400/2133 MHz

Maximum verified DCPMM configuration:

* Ambient temperature 35°C
* 2nd Generation Intel® Xeon® Scalable processor 205W (Max.)
* DCPMM 256GB x12 pcs

DCPMM installation locations:
DIMM_P0_( A1, B1, C1)
DIMM_P0_( D1, E1, F1)
DIMM_P1_( G1, H1, I1)
DIMM_P1_( J1, K1, L1)

NOTE:
1. 2933MHz for 2nd Generation Intel® Xeon® Scalable Processors only
2. Intel® Optane™ DC Persistent Memory for 2nd Generation Intel® Xeon® Scalable Processors only
3. The maximum number of DCPMM that can be installed is based on a maximum operating (ambient) temperature of 35°C
4. To enquire about installing a greater number of DCPMM, please consult with our sales representative

Chassis

1U Rackmount Chassis

Dimensions

438mm(W) x 43.5mm(H) x 730mm(D)

Onboard Devices

LAN:
2x 1Gb/s LAN ports (Intel® I350-AM2)
1x 10/100/1000 management LAN
Video:
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

HDD Drive Bays

10 x 2.5" U.2/ SAS/ SATA hot-swappable HDD/SSD bays
SATA:
1 x 7-pin SATA III 6Gb/s with SATA DOM supported
By using pin_8 or external cable for power function
RAID:
Intel® Virtual RAID On CPU (VROC) RAID 0, 1, 5
Note: VROC module is compatible for Intel®SSD only

Expansion Slots

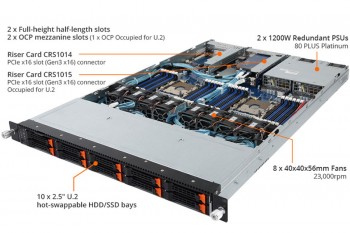

Riser Card CRS1014:
1x PCIe x16 slot (Gen3 x16), Full-height half-length

Riser Card CRS1015:
1x PCIe x16 slot (Gen3 x16), Full-height half-length
Occupied by CNV3124, 4 x U.2 HBA

2x OCP mezzanine slots
PCIe Gen3 x16
Type1, P1, P2, P3, P4, K2, K3
1 x OCP mezzanine slot is Occupied by CNVO124, 4 x U.2 mezzanine card

Power Supply

2x 1200W redundant PSUs
80 PLUS Platinum

AC Input:
100-240V~/ 12-7A, 50-60Hz
DC Input:
240Vdc/ 6A

DC Output:
Max 1000W/ 100-240V~
+12V/ 80.5A
+12Vsb/ 3A
Max 1200W/ 200-240V~ or 240Vdc input
+12V/ 97A
+12Vsb/ 3A

Input Output

Internal I/O:
2 x Power supply connectors
4 x SlimSAS connectors
2 x SATA 7-pin connectors
2 x CPU fan headers
1 x USB 3.0 header
1 x TPM header
1 x VROC connector
1 x Front panel header
1 x HDD back plane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
Front I/O:
1 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED

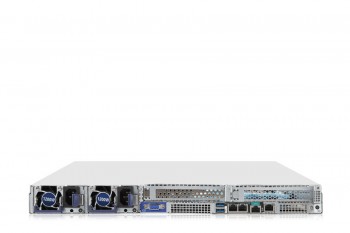

Rear I/O:
2 x USB 3.0
1 x VGA
1 x COM (RJ45 type)
2 x RJ45
1 x MLAN
1 x ID button with LED
Backplane I/O:
10 x U.2 ports
Bandwidth: PCIe Gen3 x4 per port

Cooling

8x 40x40x56mm (23'000rpm) fans

Operating Environment

Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Details

TPM:
1x TPM header with LPC interface
Optional TPM2.0 kit: CTM000

System Management:
Aspeed® AST2500 management controller
Avocent® MergePoint IPMI 2.0 web interface:
Network settings
Network security settings
Hardware information
Users control
Services settings
IPMI settings
Sessions control
LDAP settings
Power control
Fan profiles
Voltages, fans and temperatures monitoring
System event log
Events management (platform events, trap settings, email settings)
Serial Over LAN
vKVM & vMedia (HTML5)

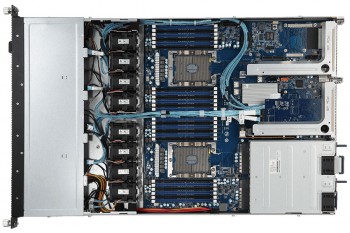

PHOTOS

R181-NA0

MY CONFIGURATION

CPU

Intel® Xeon® Scalable 2nd Gen Gold Processor 5218R (2.10 Ghz 125W)

+ $1,203.00

Intel® Xeon® Scalable 2nd Gen Gold Processor 6222 (1.80 Ghz 115W)

+ $1,575.00

Intel® Xeon® Scalable 2nd Gen Silver Processor 4215 (2.50 Ghz 85W)

+ $645.00

Intel® Xeon® Scalable Platinum Processor 8180 (2.50 Ghz 205W)

+ $11,019.00

Intel® Xeon® Scalable Platinum Processor 8176 (2.10 Ghz 165W)

+ $9,561.00

Intel® Xeon® Scalable 2nd Gen Gold Processor 6242R (3.10 Ghz 205W)

+ $2,613.00

Intel® Xeon® Scalable 2nd Gen Gold Processor 6258R (2.70 Ghz 205W)

+ $4,206.00

Intel® Xeon® Scalable 2nd Gen Gold Processor 6238R (2.20 Ghz 165W)

+ $2,704.00

Intel® Xeon® Scalable 2nd Gen Gold Processor 5220R (2.20 Ghz 150W)

+ $1,519.00

Intel® Xeon® Scalable 2nd Gen Gold Processor 5218 (2.30 Ghz 125W)

+ $1,119.00

Intel® Xeon® Scalable 2nd Gen Gold Processor 6248R (3.00 Ghz 205W)

+ $2,803.00

Intel® Xeon® Scalable 2nd Gen Bronze Processor 3206R (1.90 Ghz 85W)

+ $119.00

Intel® Xeon® Scalable 2nd Gen Gold Processor 6226R (2.90 Ghz 150W)

+ $1,233.00

Intel® Xeon® Scalable 2nd Gen Silver Processor 4210R (2.40 Ghz 100W)

+ $337.00

Intel® Xeon® Scalable 2nd Gen Gold Processor 6246R (3.40 Ghz 205W)

+ $3,460.00

Intel® Xeon® Scalable Platinum Processor 8176M (2.10 Ghz 165W)

+ $12,927.00

Intel® Xeon® Scalable Platinum Processor 8180M (2.50 Ghz 205W)

+ $14,379.00

Intel® Xeon® Scalable 2nd Gen Gold Processor 5215 (2.50 Ghz 85W)

+ $1,083.00

Intel® Xeon® Scalable 2nd Gen Gold Processor 6240R (2.40 Ghz 150W)

+ $1,839.00

Intel® Xeon® Scalable 2nd Gen Gold Processor 6230R (2.10 Ghz 150W)

+ $1,887.00

Intel® Xeon® Scalable 2nd Gen Silver Processor 4214R (2.40 Ghz 100W)

+ $585.00

Intel® Xeon® Scalable 2nd Gen Silver Processor 4215R (3.20 Ghz 130W)

+ $725.00

Intel® Xeon® Scalable 2nd Gen Gold Processor 6242 (2.80 Ghz 150W)

+ $2,595.00

Intel® Xeon® Scalable 2nd Gen Gold Processor 6262 (1.90 Ghz 135W)

+ $2,895.00

Intel® Xeon® Scalable 2nd Gen Gold Processor 6254 (3.10 Ghz 200W)

+ $3,795.00

Intel® Xeon® Scalable 2nd Gen Gold Processor 6248 (2.50 Ghz 150W)

+ $3,231.00

Intel® Xeon® Scalable 2nd Gen Gold Processor 6240 (2.60 Ghz 150W)

+ $2,343.00

Intel® Xeon® Scalable 2nd Gen Gold Processor 6230 (2.10 Ghz 125W)

+ $1,731.00

Intel® Xeon® Scalable 2nd Gen Gold Processor 5222 (3.80 Ghz 105W)

+ $1,071.00

Intel® Xeon® Scalable 2nd Gen Bronze Processor 3204 (1.90 Ghz 85W)

Added

Intel® Xeon® Scalable 2nd Gen Gold Processor 6252 (2.10 Ghz 150W)

+ $3,639.00

Intel® Xeon® Scalable 2nd Gen Gold Processor 5220 (2.20 Ghz 125W)

+ $1,431.00

Intel® Xeon® Scalable 2nd Gen Silver Processor 4216 (2.10 Ghz 100W)

+ $914.00

MEMORY

Samsung 64GB DDR4 2933 ECC RDIMM Memory

+ $832.00

Samsung 128GB DDR4 3200 ECC LRDIMM Memory

+ $2,860.00

Samsung 64GB DDR4 2933 ECC LRDIMM Memory

+ $980.00

Hynix 64GB DDR4 2666 ECC LRDIMM Memory

+ $924.00

Samsung 32GB DDR4 3200 ECC RDIMM Memory

+ $348.00

Samsung 8GB DDR4 3200 ECC RDIMM Memory

+ $12.00

Samsung 16GB DDR4 3200 ECC RDIMM Memory

+ $136.00

Samsung 64GB DDR4 3200 ECC RDIMM Memory

+ $844.00

Samsung 16GB DDR4 2933 ECC RDIMM Memory

+ $124.00

Samsung 32GB DDR4 2933 ECC RDIMM Memory

+ $336.00

Samsung 8GB DDR4 2933 ECC RDIMM Memory

Added

NVMe U.2/U.3

Micron 7450 PRO NVMe U.3 (15mm) SSD 15.36TB

+ $2,252.00

Samsung PM9A3 2.5" U.2 NVMe SSD 1.92TB

+ $248.00

Samsung PM9A3 2.5" U.2 NVMe SSD 3.84TB

+ $643.00

Samsung PM9A3 2.5" U.2 NVMe SSD 7.68TB

+ $1,329.00

Samsung PM9A3 2.5" U.2 NVMe SSD 15TB

+ $2,536.00

Samsung PM9A3 2.5" U.2 NVMe SSD 960GB

+ $73.00

Micron 7450 MAX NVMe U.3 (15mm) SSD 12.8TB

+ $2,642.00

Micron 7450 MAX NVMe U.3 (15mm) SSD 1.6TB

+ $276.00

Micron 7450 MAX NVMe U.3 (15mm) SSD 6.4TB

+ $1,277.00

Micron 7450 MAX NVMe U.3 (15mm) SSD 3.2TB

+ $627.00

Micron 7450 MAX NVMe U.3 (15mm) SSD 800GB

+ $120.00

Micron 7450 PRO NVMe U.3 (15mm) SSD 7.68TB

+ $1,082.00

Micron 7450 PRO NVMe U.3 (15mm) SSD 1.92TB

+ $367.00

Micron 7400 PRO NVMe U.3 (7mm) SSD 960GB

Added

Micron 7450 PRO NVMe U.3 (15mm) SSD 3.84TB

+ $497.00

Micron 7450 PRO NVMe U.3 (15mm) SSD 960GB

+ $81.00

Micron 7400 MAX NVMe U.3 (7mm) SSD 6.4TB

+ $1,308.00

Samsung 983 DCT 2.5" U.2 NVMe SSD 960GB

- $5.00

Samsung 983 DCT 2.5" U.2 NVMe SSD 1.9TB

+ $220.00

Micron 7400 MAX NVMe U.3 (7mm) SSD 3.2TB

+ $668.00

Micron 7400 MAX NVMe U.3 (7mm) SSD 1.6TB

+ $255.00

Micron 7400 PRO NVMe U.3 (7mm) SSD 3.84TB

+ $552.00

Micron 7400 PRO NVMe U.3 (7mm) SSD 1.92TB

+ $193.00

Micron 7400 MAX NVMe U.3 (7mm) SSD 800GB

+ $33.00

Micron 7400 PRO NVMe U.3 (7mm) SSD 7.68TB

+ $1,168.00

NETWORK CARD

Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)

+ $428.00

Broadcom NetXtreme 50G PCIe 3.0 x8 Ethernet Card (1x QSFP28)

+ $508.00

Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)

+ $1,279.00

Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)

+ $123.00

Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)

+ $689.00

Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)

+ $96.00

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)

+ $363.00

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)

+ $289.00

Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)

+ $271.00

Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)

+ $377.00

Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)

+ $512.00

Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)

+ $475.00

*No Network Card

Added

Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)

+ $462.00

Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)

+ $636.00

Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)

+ $558.00

Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)

+ $501.00

Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)

+ $241.00

Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)

+ $341.00

Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)

+ $2,145.00

Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)

+ $1,664.00

Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)

+ $1,976.00

Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)

+ $610.00

OPERATING SYSTEM

*Please contact our sales for more operating system options

Added

Debian Linux (No Media) (32-Bit/64-Bit)

+ $99.00

Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)

+ $99.00

CentOS Enterprise Linux (No Media) (32-Bit/64-bit)

+ $99.00

Fedora Linux Workstation Edition 64-bit (No Media)

+ $99.00

Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)

+ $99.00

Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)

+ $99.00

Microsoft Windows Server 2012 Standard R2 64-bit-1User

+ $799.00

Microsoft Windows Server 2022 Standard 64-bit-1User

+ $799.00

Microsoft Windows Server 2012 DataCenter Edition 64-bit

+ $4,799.00

WARRANTY

*1 Year Parts Replacement Warranty

Added

3 Year Parts Replacement Warranty - Server Value $500 to $2000

+ $299.00

3 Year Parts Replacement Warranty - Server Value $2001 to $4000

+ $399.00

3 Year Parts Replacement Warranty - Server Value $4001 to $7000

+ $599.00

3 Year Parts Replacement Warranty - Server Value $7001 to $10000

+ $899.00

3 Year Parts Replacement Warranty - Server Value Over $10000

+ $1,280.00

$2,660.00	ADD TO CART
	ADD TO QUOTE

2695

2275.0000
