R281-2O0

$2,665.00

Gigabyte 2U 24Bays Dual 2nd Gen Scalable Processor Rackmount Server

2nd Gen. Intel® Xeon® Scalable and Intel® Xeon® Scalable Processors
6-Channel RDIMM/LRDIMM DDR4, 24 x DIMMs
Supports Intel® Optane™ DC Persistent Memory
Dual 1Gb/s LAN ports (Intel® I350-AM2)
1 x Dedicated management port
Onboard 12Gb/s SAS expander
24 x 2.5" SATAIII hot-swappable HDD/SSD bays in front side
2 x 2.5" SATAIII hot-swappable HDD/SSD bays in rear side
8 x PCIe Gen3 expansion slots
2 x OCP Gen3 x16 mezzanine slots
Aspeed® AST2500 remote management controller
Dual 1200W 80 PLUS Platinum redundant power supply

Storage configuration notice:
Hot-swap:
Front side: 24 x 2.5" SATA/SAS hot-swappable HDD/SSD bays via SAS expander
Rear side: 2 x 2.5" SATA/SAS hot-swappable HDD/SSD bays via SAS expander
SAS card is required to enable the drive bays

SPECIFICATIONS

SKU

R281-2O0

Processor

2 x LGA 3647
2nd Generation Intel® Xeon® Scalable and Intel® Xeon® Scalable Processors
Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor and Intel® Xeon® Bronze Processor
CPU TDP up to 205W
NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable

Memory

24 x DIMM slots
DDR4 memory supported only
6-channel memory architecture
RDIMM modules up to 64GB supported
LRDIMM modules up to 128GB supported
Supports Intel® Optane™ DC Persistent Memory (DCPMM)
1.2V modules: 2933( 1DPC)/2666/2400/2133 MHz

Maximum verified DCPMM configuration:

* Ambient temperature 35°C
* 2nd Generation Intel® Xeon® Scalable processor 205W (Max.)
* DCPMM 256GB x12 pcs

DCPMM installation locations:
DIMM_P0_( A1, B1, C1)
DIMM_P0_( D1, E1, F1)
DIMM_P1_( G1, H1, I1)
DIMM_P1_( J1, K1, L1)

NOTE:
1. 2933MHz for 2nd Generation Intel® Xeon® Scalable Processors only
2. Intel® Optane™ DC Persistent Memory for 2nd Generation Intel® Xeon® Scalable Processors only
3. The maximum number of DCPMM that can be installed is based on a maximum operating (ambient) temperature of 35°C
4. To enquire about installing a greater number of DCPMM, please consult with our technical or sales representative

Chassis

2U Rackmount Chassis

Dimensions

438mm(W) x 87.5mm(H) x 730mm(D)

Onboard Devices

LAN:
2x 1Gb/s LAN ports (Intel® I350-AM2)
1x 10/100/1000 management LAN
Video:
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

HDD Drive Bays

Front side:
24x 2.5" SATA/SAS hot-swappable HDD/SSD bays
Rear side:
2x 2.5" SATA/SAS hot-swappable HDD/SSD bays
SAS card is required to enable the drive bays
SATA:
1x 7-pin SATA III 6Gb/s with SATA DOM supported
SAS:
Supported via add-on SAS Card
RAID:
Depends on RAID card

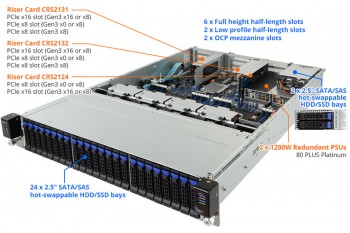

Expansion Slots

Riser Card CRS2131:
1x PCIe x16 slot (Gen3 x16 or x8), Full height half-length
1x PCIe x8 slots (Gen3 x0 or x8), Full height half-length
1x PCIe x8 slots (Gen3 x8), Full height half-length

Riser Card CRS2132:
1x PCIe x16 slot (Gen3 x16 or x8), Full height half-length
1x PCIe x8 slots (Gen3 x0 or x8), Full height half-length
1x PCIe x8 slots (Gen3 x8), Full height half-length

Riser Card CRS2124:
1x PCIe x8 slots (Gen3 x0 or x8), Low profile half-length
1x PCIe x16 slot (Gen3 x16 or x8), Low profile half-length

2x OCP mezzanine slots
PCIe Gen3 x16
Type1, P1, P2, P3, P4, K2, K3

Power Supply

2x 1200W redundant PSUs
80 PLUS Platinum
AC Input:
100-240V~/ 12-7A, 50-60Hz
DC Input:
240Vdc/ 6A
DC Output:
Max 1000W/ 100-240V~
+12V/ 80.5A
+12Vsb/ 3A
Max 1200W/ 200-240V~ or 240Vdc input
+12V/ 97A
+12Vsb/ 3A

Input Output

Internal I/O:
2x Power supply connectors
4x SlimSAS connectors
2x SATA 7-pin connectors
2x CPU fan headers
1x USB 3.0 header
1x TPM header
1x VROC connector
1x Front panel header
1x HDD back plane board header
1x PMBus connector
1x IPMB connector
1x Clear CMOS jumper
1x BIOS recovery jumper
Front I/O:
2x USB 3.0
1x Power button with LED
1x ID button with LED
1x Reset button
1x NMI button
1x System status LED
1x HDD activity LED
2x LAN activity LEDs

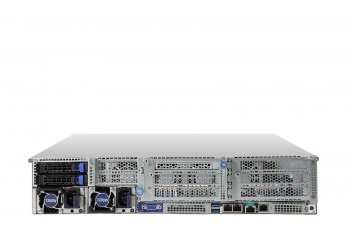

Rear I/O:
2x USB 3.0
1x VGA
1x COM (RJ45 type)
2x RJ45
1x MLAN
1x ID button with LED
Backplane I/O:
Front side_CBP20O2: 24x SATA/SAS ports
Rear side_CBP2020: 2x SATA/SAS ports
LSI SAS35x36 expander
Bandwidth: SATAIII 6Gb/s or SAS 12Gb/s per port
Default configuration supports:
0x SAS/SATA drives
SAS card required to enable the drive bays

Cooling

4x 80x80x38mm (14'900rpm) fans

Operating Environment

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Details

TPM:
1x TPM header with LPC interface
Optional TPM2.0 kit: CTM000

System Management:
Aspeed® AST2500 management controller
Avocent® MergePoint IPMI 2.0 web interface:
Network settings
Network security settings
Hardware information
Users control
Services settings
IPMI settings
Sessions control
LDAP settings
Power control
Fan profiles
Voltages, fans and temperatures monitoring
System event log
Events management (platform events, trap settings, email settings)
Serial Over LAN
vKVM & vMedia (HTML5)

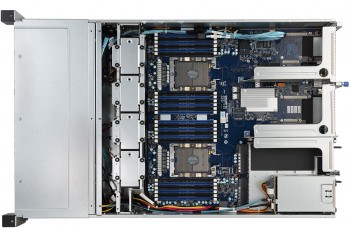

PHOTOS

R281-2O0

MY CONFIGURATION

CPU

Intel® Xeon® Scalable 2nd Gen Gold Processor 5218R (2.10 Ghz 125W)

+ $1,428.00

Intel® Xeon® Scalable 2nd Gen Gold Processor 5215 (2.50 Ghz 85W)

+ $1,308.00

Intel® Xeon® Scalable 2nd Gen Silver Processor 4215 (2.50 Ghz 85W)

+ $870.00

Intel® Xeon® Scalable Platinum Processor 8180 (2.50 Ghz 205W)

+ $11,244.00

Intel® Xeon® Scalable Platinum Processor 8176 (2.10 Ghz 165W)

+ $9,786.00

Intel® Xeon® Scalable 2nd Gen Gold Processor 6242R (3.10 Ghz 205W)

+ $2,838.00

Intel® Xeon® Scalable 2nd Gen Gold Processor 6258R (2.70 Ghz 205W)

+ $4,431.00

Intel® Xeon® Scalable 2nd Gen Gold Processor 6238R (2.20 Ghz 165W)

+ $2,929.00

Intel® Xeon® Scalable 2nd Gen Gold Processor 5220R (2.20 Ghz 150W)

+ $1,744.00

Intel® Xeon® Scalable 2nd Gen Bronze Processor 3204 (1.90 Ghz 85W)

+ $225.00

Intel® Xeon® Scalable 2nd Gen Gold Processor 6248R (3.00 Ghz 205W)

+ $3,028.00

Intel® Xeon® Scalable 2nd Gen Gold Processor 6226R (2.90 Ghz 150W)

+ $1,458.00

Intel® Xeon® Scalable 2nd Gen Bronze Processor 3206R (1.90 Ghz 85W)

+ $344.00

Intel® Xeon® Scalable 2nd Gen Silver Processor 4210R (2.40 Ghz 100W)

+ $562.00

Intel® Xeon® Scalable 2nd Gen Gold Processor 6246R (3.40 Ghz 205W)

+ $3,685.00

Intel® Xeon® Scalable Platinum Processor 8176M (2.10 Ghz 165W)

+ $13,152.00

Intel® Xeon® Scalable Platinum Processor 8180M (2.50 Ghz 205W)

+ $14,604.00

Intel® Xeon® Scalable 2nd Gen Gold Processor 6262 (1.90 Ghz 135W)

+ $3,120.00

Intel® Xeon® Scalable 2nd Gen Gold Processor 6240R (2.40 Ghz 150W)

+ $2,064.00

Intel® Xeon® Scalable 2nd Gen Gold Processor 6230R (2.10 Ghz 150W)

+ $2,112.00

Intel® Xeon® Scalable 2nd Gen Silver Processor 4215R (3.20 Ghz 130W)

+ $950.00

Intel® Xeon® Scalable 2nd Gen Silver Processor 4214R (2.40 Ghz 100W)

+ $810.00

Intel® Xeon® Scalable 2nd Gen Gold Processor 6248 (2.50 Ghz 150W)

+ $3,456.00

Intel® Xeon® Scalable 2nd Gen Gold Processor 6242 (2.80 Ghz 150W)

+ $2,820.00

Intel® Xeon® Scalable 2nd Gen Gold Processor 6252 (2.10 Ghz 150W)

+ $3,864.00

Intel® Xeon® Scalable 2nd Gen Gold Processor 6254 (3.10 Ghz 200W)

+ $4,020.00

Intel® Xeon® Scalable 2nd Gen Gold Processor 6222 (1.80 Ghz 115W)

+ $1,800.00

Intel® Xeon® Scalable 2nd Gen Gold Processor 6230 (2.10 Ghz 125W)

+ $1,956.00

Intel® Xeon® Scalable 2nd Gen Gold Processor 6240 (2.60 Ghz 150W)

+ $2,568.00

Intel® Xeon® Scalable 2nd Gen Gold Processor 5222 (3.80 Ghz 105W)

+ $1,296.00

Intel® Xeon® Scalable 2nd Gen Gold Processor 5220 (2.20 Ghz 125W)

+ $1,656.00

Intel® Xeon® Scalable 2nd Gen Silver Processor 4216 (2.10 Ghz 100W)

+ $1,139.00

Intel® Xeon® Scalable 2nd Gen Gold Processor 5218 (2.30 Ghz 125W)

+ $1,344.00

MEMORY

Samsung 32GB DDR4 2933 ECC RDIMM Memory

+ $336.00

Hynix 64GB DDR4 2666 ECC LRDIMM Memory

+ $924.00

Samsung 64GB DDR4 2933 ECC LRDIMM Memory

+ $980.00

Samsung 128GB DDR4 3200 ECC LRDIMM Memory

+ $2,860.00

Samsung 64GB DDR4 3200 ECC RDIMM Memory

+ $844.00

Samsung 16GB DDR4 3200 ECC RDIMM Memory

+ $136.00

Samsung 8GB DDR4 3200 ECC RDIMM Memory

+ $12.00

Samsung 32GB DDR4 3200 ECC RDIMM Memory

+ $348.00

Samsung 64GB DDR4 2933 ECC RDIMM Memory

+ $832.00

Samsung 8GB DDR4 2933 ECC RDIMM Memory

Added

Samsung 16GB DDR4 2933 ECC RDIMM Memory

+ $124.00

Enterprise-Class HDD/SSD

Samsung PM893 2.5" SATA 6Gb/s SSD 480GB

+ $68.00

Samsung PM893 2.5" SATA 6Gb/s SSD 240GB

+ $28.00

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB

+ $870.00

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB

+ $230.00

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB

+ $83.00

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB

+ $1,214.00

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB

+ $653.00

Samsung PM893 2.5" SATA 6Gb/s SSD 960GB

+ $100.00

Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB

+ $603.00

Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB

+ $1,222.00

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB

+ $65.00

Samsung SM883 2.5" SATA III SSD 480GB

+ $75.00

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB

+ $168.00

Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB

+ $780.00

Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB

+ $401.00

Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB

+ $217.00

Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB

+ $1,382.00

Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB

+ $2,850.00

Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB

+ $5,858.00

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB

- $65.00

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB

+ $93.00

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB

+ $317.00

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB

- $40.00

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB

- $4.00

Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB

+ $186.00

Samsung PM897 2.5" SATA 6Gb/s SSD 960GB

+ $93.00

Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB

+ $393.00

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB

+ $304.00

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB

+ $402.00

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB

+ $85.00

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB

+ $122.00

Intel D3-S4510 2.5" SATA III SSD 480Gb

+ $25.00

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB

Added

Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB

+ $263.00

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB

+ $707.00

OS DRIVE

Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB

+ $526.00

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB

+ $832.00

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB

+ $1,339.00

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB

+ $208.00

Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB

+ $388.00

Samsung PM893 2.5" SATA 6Gb/s SSD 960GB

+ $225.00

Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB

+ $728.00

Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB

+ $1,347.00

Samsung PM893 2.5" SATA 6Gb/s SSD 480GB

+ $193.00

Samsung SM883 2.5" SATA III SSD 480GB

+ $200.00

Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB

+ $342.00

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB

+ $293.00

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB

+ $85.00

Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB

+ $905.00

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB

+ $60.00

Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB

+ $2,975.00

Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB

+ $1,507.00

Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB

+ $5,983.00

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB

+ $218.00

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB

+ $121.00

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB

+ $442.00

Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB

+ $518.00

Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB

+ $311.00

Samsung PM897 2.5" SATA 6Gb/s SSD 960GB

+ $218.00

*No OS Drive

Added

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB

+ $527.00

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB

+ $210.00

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB

+ $247.00

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB

+ $429.00

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB

+ $125.00

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB

+ $190.00

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB

+ $355.00

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB

+ $778.00

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB

+ $995.00

Samsung PM893 2.5" SATA 6Gb/s SSD 240GB

+ $153.00

RAID CONTROLLER CARD

*NO RAID Controller Card

Added

Broadcom 9500-8i SAS3/SATA/NVMe 8-Port HBA

+ $533.00

Broadcom MegaRAID 9560-8i SAS3/SATA/NVMe 8-Port RAID Controller

+ $855.00

LSI 9560-16I TRI MODE NVMe RAID CONTROLLER

+ $1,109.00

Areca ARC-1886-8i 8 Ports SAS/SATA/NVMe RAID Controller Card

+ $1,117.00

Areca ARC-1886-16i 16 Ports SAS/SATA/NVMe RAID Controller Card

+ $1,226.00

Areca ARC-1886-8X8i 8+8 Ports SAS/SATA/NVMe RAID Controller Card

+ $1,299.00

Broadcom MegaRAID 9580-8i8e SAS3/SATA/NVMe 8+8-Port RAID Controller

+ $1,323.00

Areca ARC-1886-4x12i 4+12 Ports SAS/SATA/NVMe RAID Controller Card

+ $1,421.00

NETWORK CARD

Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)

+ $462.00

Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)

+ $1,279.00

Broadcom NetXtreme 50G PCIe 3.0 x8 Ethernet Card (1x QSFP28)

+ $508.00

Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)

+ $689.00

Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)

+ $271.00

Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)

+ $123.00

Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)

+ $96.00

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)

+ $289.00

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)

+ $363.00

Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)

+ $377.00

Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)

+ $512.00

Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)

+ $475.00

*No Network Card

Added

Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)

+ $428.00

Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)

+ $558.00

Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)

+ $636.00

Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)

+ $501.00

Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)

+ $241.00

Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)

+ $341.00

Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)

+ $2,145.00

Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)

+ $1,976.00

Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)

+ $1,664.00

Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)

+ $610.00

GPU/Coprocessor

NVIDIA L40S 48GB GDDR6 GPU Card

+ $9,698.00

NVIDIA A100 80GB HBM2e GPU Card

+ $13,982.00

*No GPU

Added

NVIDIA RTX 4000 ADA GDDR6 Video Card 20GB

+ $1,690.00

ASUS GeForce RTX 3080 TURBO GDDR6 Video Card 10G

+ $1,089.00

GIGABYTE GeForce RTX 3090 TURBO Video Card 24G

+ $1,989.00

NVIDIA RTX 5000 ADA GDDR6 Video Card 32GB

+ $5,304.00

NVIDIA RTX 4500 ADA GDDR6 Video Card 24GB

+ $3,010.00

ASUS GeForce RTX 3070 TURBO V2 Lite Hash Rite(LHR) Video Card 8GB

+ $759.00

ASUS GeForce RTX 3090 TURBO GDDR6 Video Card 24G

+ $1,989.00

NVIDIA RTX 6000 ADA GDDR6 Video Card 48GB

+ $9,193.00

OPERATING SYSTEM

*Please contact our sales for more operating system options

Added

Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)

+ $99.00

Fedora Linux Workstation Edition 64-bit (No Media)

+ $99.00

Debian Linux (No Media) (32-Bit/64-Bit)

+ $99.00

Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)

+ $99.00

Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)

+ $99.00

CentOS Enterprise Linux (No Media) (32-Bit/64-bit)

+ $99.00

Microsoft Windows Server 2022 Standard 64-bit-1User

+ $799.00

Microsoft Windows Server 2012 Standard R2 64-bit-1User

+ $799.00

Microsoft Windows Server 2012 DataCenter Edition 64-bit

+ $4,799.00

WARRANTY

*1 Year Parts Replacement Warranty

Added

3 Year Parts Replacement Warranty - Server Value $500 to $2000

+ $299.00

3 Year Parts Replacement Warranty - Server Value $2001 to $4000

+ $399.00

3 Year Parts Replacement Warranty - Server Value $4001 to $7000

+ $599.00

3 Year Parts Replacement Warranty - Server Value $7001 to $10000

+ $899.00

3 Year Parts Replacement Warranty - Server Value Over $10000

+ $1,280.00

$2,665.00	ADD TO CART
	ADD TO QUOTE

2697

2380.0000
