Tyan 4U 12Bays Dual 2nd Gen Scalable Processor up to 10GPU Server

Dual-Socket Intel 2nd Gen Xeon® Scalable Processors
Supports Single CPU Deployment with 10GPU
(24) DIMM slots supporting up to 3TB DDR4-2667
(14) Hot-Swap 2.5" SATA 6G drive bays
(10) Double-Width PCIex16 slots for GPUs
(1) PCIex16 slot for NIC up to 100Gb/s
AST2500 BMC with Redfish support

Storage configuration notice:
Hot-swap:
14x Hot-swap 2.5" Drive

SKU	FA77-B7119

Processor

Socket:
2x LGA3647
Supported CPU Series:
Intel Xeon Scalable Processor / 2nd Gen Intel Xeon Scalable Processor
Thermal Design Power (TDP) Wattage:
Max up to 205W
System Bus:
Up to 10.4/9.6 GT/s with Intel UltraPath Interconnect (UPI) support

Chipset
PCH:
Intel C621
Switch IC:
2x PLX PEX8796

Memory

Supported DIMM:
(12+12)x DIMM slots
DIMM Type / Speed:
DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2933/2666 / DDR4 JEDEC NVDIMM 2666 / Intel Optane DC Persistent Memory Module (DCPMM)
Capacity:
Up to 768GB RDIMM/ 1,536GB LRDIMM/ 3,072GB RDIMM 3DS/LRDIMM 3DS *Follow latest Intel DDR4 Memory POR
Memory channel:
6 Channels per CPU
Memory voltage:
1.2V
Notification:
DDR4-2933 speed only supported with 2nd Gen Intel Xeon Scalable Processor (codename: Cascade Lake) and in a 1 DIMM per channel configuration. / Intel Optane DC Persistent Memory Module (DCPMM) only supported with specific 2nd Gen Intel Xeon Scalable Processor (codename: Cascade Lake). Please contact our Technical Support for more detail.

Chassis

4U Rackmount Chassis

Dimensions

D x W x H:
30.31" x 17.24" x 6.93"
770mm x 438mm x 176mm

Front Panel

Buttons:
(1) RST / (1) NMI / (1) ID / (1) PWR w/ LED
LEDs:
(1) HDD / (1) ID / (1) Warning / (3) LAN
I/O Ports:
(1) VGA port / (2) USB 3.0 port / (1) COM Port

Bios	Brand / ROM size: AMI / 32MB Feature: Hardware Monitor / SMBIOS 3.0/PnP/Wake on LAN / Boot from USB device/PXE via LAN/Storage / User Configurable FAN PWM Duty Cycle / Console Redirection / ACPI sleeping states S4,S5 / ACPI 6.1

Onboard Devices

LAN
Port Q'ty:
(2) 10GbE ports, (1) GbE port dedicated for IPMI
Controller:
Intel X540-BT2
PHY:
Realtek RTL8211E

Storage
SATA:
Connector:
(2) Mini-SAS HD (8-ports)
Controller:
Intel C621
Speed:
6.0 Gb/s
RAID:
RAID 0/1/10/5 (Intel RSTe)
sSATA:
Connector:
(2) SATA-III / (1) Mini-SAS HD (4-ports)
Controller:
Intel C621
Speed:
6.0 Gb/s
RAID:
RAID 0/1/10/5 (Intel RSTe)

Graphic
Connector type:
D-Sub 15-pin
Resolution:
Up to 1920x1200
Chipset:
Aspeed AST2500

HDD Drive Bays

Type / Q'ty:
2.5" Hot-Swap SSD/HDD/ (14)
Supported HDD Interface:
(14) SATA 6Gb/s
HDD Backplane Support:
SAS 12Gb/s /SATA 6Gb/s

Expansion Slots

PCI-E:
(11) PCI-E Gen3 x16 slots / (1) PCI-E Gen3 x16 Tyan Mezzanine slot / (1) PCI-E Gen3 x16 slot (OCP 2.0 slot)
Pre-install TYAN Riser Card:
M2217-L16-IO

Power Supply

Type:
RPSU
Input Range:
AC 100-127V/12A / AC 200-240V/9.48A
Frequency:
47-63 Hz
Output Watts:
3,000 Watts (100-127Vac input) / 4,800Watts (200-240Vac input)
Efficiency:
PFC / 80 plus Platinum
Redundancy:
3+1

Input Output

I/O Ports
USB:
(2) USB3.0 ports (at rear) / (2) USB3.0 ports (at front)
COM:
(1) DB-9 COM port (at front)
VGA:
(1) D-Sub 15-pin port (at front)
RJ-45:
(2) 10GbE ports, (1) GbE dedicated for IPMI

Cooling

(5+1) hot-swap 12cm fans

Operating Environment

Operating Temp.:
10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp.:
- 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity:
90%, non-condensing at 35° C

Details

TPM (Optional)
TPM Support:
Please refer to our TPM supported list.

Server Management
Onboard Chipset:
Onboard Aspeed AST2500
AST2500 iKVM Feature:
IPMI 2.0 compliant baseboard management controller (BMC) / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2500 IPMI Feature:
24-bit high quality video compression / 10/100/1000 Mb/s MAC interface

System Monitoring
Chipset:
Aspeed AST2500
Temperature:
Monitors:
temperature for CPU & memory & system environment
Voltage:
Monitors voltage for CPU, memory, chipset & power supply
LED:
Over temperature warning indicator / Fan & PSU fail LED indicator
Others:
Watchdog timer support

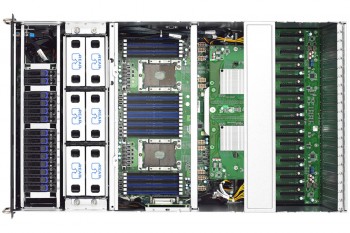

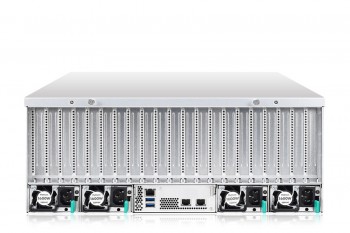

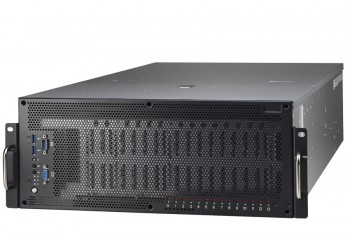

PHOTOS

FA77-B7119
