FT48B-B7100

Please Inquire

Tyan 4U 8Bays Dual 2nd Gen Scalable Processor up to 4GUP Server

Dual Socket Intel 2nd Gen Xeon Scalable Processor
(12) DIMM slots supporting up to 1.5TB DDR4-2667
(4) PCIe x16 + (3) PCIe x8 slots
Supports up to (4) GPU cards
(8) 2.5" SATA 6G Front Hotswap Drive Bays
(2) 2.5" SATA 6G Rear Hotswap Drive Bays
AST2500 BMC with Redfish Support
1+1 1,600W Redundant Power Supply

Storage configuration notice:
Hot-swap:
8x 2.5" SATA 6G Front Hotswap Drive Bays
2x 2.5" SATA 6G Rear Hotswap Drive Bays
M.2:
2x M.2 Drive

SPECIFICATIONS

SKU	FT48B-B7100

Processor

Socket:
2x LGA3647
Supported CPU Series:
Intel Xeon Scalable Processor / 2nd Gen Intel Xeon Scalable Processor
Thermal Design Power (TDP) Wattage:
Max up to 205W
System Bus:
Up to 10.4/9.6 GT/s with Intel UltraPath Interconnect (UPI) support

Chipset
PCH:
Intel C621

Memory

Supported DIMM:
(6+6)x DIMM slots
DIMM Type / Speed:
DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2933/2666 / Intel Optane DC Persistent Memory Module (DCPMM)
Capacity:
Up to 384GB RDIMM/ 768GB LRDIMM/ 1,536GB RDIMM 3DS/LRDIMM 3DS *Follow latest Intel DDR4 Memory POR
Memory channel:
6 Channels per CPU
Memory voltage:
1.2V
Notification:
DDR4-2933 speed only supported with 2nd Gen Intel Xeon Scalable Processor (codename: Cascade Lake) and in a 1 DIMM per channel configuration. / Intel Optane DC Persistent Memory Module (DCPMM) only supported with specific 2nd Gen Intel Xeon Scalable Processor (codename: Cascade Lake). Please contact our Technical Support for more detail.

Chassis

4U Rackmount Chassis

Dimensions

D x W x H:
27.5"x 16.8"x 6.9"
700mmx 427mmx 176mm

Front Panel

Buttons:
(1) PWR / (1) RST / (1) NMI / (1) ID
LEDs:
(1) PWR / (1) HDD / (2) LAN / (1) ID / (1) Warning / (1) BMC
I/O Ports:
(2) USB 3.0 port

Bios	Brand / ROM size: AMI / 32MB Feature: Hardware Monitor / SMBIOS 3.0/PnP/Wake on LAN / Boot from USB device/PXE via LAN/Storage / User Configurable FAN PWM Duty Cycle / Console Redirection / ACPI sleeping states S4,S5 / ACPI 6.1

Onboard Devices

LAN

Port Q'ty:

(2) GbE ports (1 port shared with IPMI)

Controller:

Intel I350-AM2

Storage

SATA

Connector:

(2) Mini-SAS HD (8-ports)

Controller:

Intel C621

Speed:

6.0 Gb/s

RAID:

RAID 0/1/10/5 (Intel RSTe)

sSATA

Connector:

(2) SATA/SATA-DOM / (1) Mini-SAS HD (4-ports)

Controller:

Intel C621

Speed:

6.0 Gb/s

RAID:

RAID 0/1/10/5 (Intel RSTe)

NVMe

Connector (M.2) (1) 2242 (by PCI-E interface) / (1) 2242/2260/2280 (by PCI-E interface)

Graphic

Connector type:

D-Sub 15-pin

Resolution:

Up to 1920x1200

Chipset:

Aspeed AST2500

HDD Drive Bays

Type / Q'ty:
2.5" Hot-Swap SSD/HDD/ (8)@front + (2)@rear
HDD backplane support:
SATA 6Gb/s/ SAS 12Gb/s (@front), SATA 6Gb/s (@rear)
Supported HDD Interface:
(10) SATA 6Gb/s

Expansion Slots

(4) PCI-E Gen3 x16 slot / (3) PCI-E Gen3 x8 slots

Power Supply

Type:
RPSU
Input Range:
200-240V AC/9.48A / AC 100-127V/12A
Output Watts:
1,000 Watts Max.( for 100-127V AC) 1,600 Watts Max. (for 200-240V AC)
Efficiency:
80 plus Platinum
Redundancy:
1+1

Input Output

USB:
(2) USB3.0 ports (at front) / (4) USB3.0 ports (at rear)
VGA:
(1) D-Sub 15-pin port
RJ-45:
(2) GbE ports (1 port shared with IPMI)
Others:
(1) ID button

Cooling

(5+1) 12cm fans

Operating Environment

Operating Temp.:
10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp.:
- 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity:
90%, non-condensing at 35° C

Details

TPM (Optional)
TPM Support:
Please refer to our TPM supported list.

System Monitoring
Chipset:
Aspeed AST2500
Temperature:
Monitors temperature for CPU & memory & system environment
Voltage:
Monitors voltage for CPU, memory, chipset & power supply
LED:
Over temperature warning indicator / Fan & PSU fail LED indicator
Others:
Watchdog timer support

Server Management
Onboard Chipset:
Onboard Aspeed AST2500
AST2500 iKVM Feature:
IPMI 2.0 compliant baseboard management controller (BMC) / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2500 IPMI Feature:
24-bit high quality video compression / 10/100/1000 Mb/s MAC interface

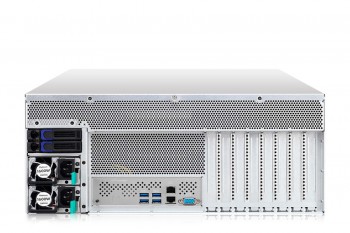

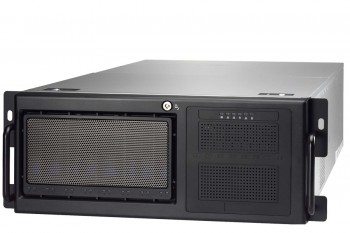

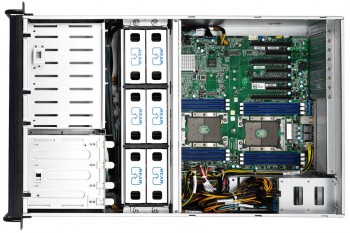

PHOTOS
