CPU:
Single Socket H4 (LGA 1151),
CPU TDP support up to 80W
Support Intel® Xeon® Processor E-2100 series, 8th Gen. Intel® Core™ i3 / Pentium® / Celeron® Processors
Cores:
6 cores, 12 threads

Memory Capacity:
2x DIMM slots
Up to 64GB ECC UDIMM
Up to DDR4-2666MHz
Memory Type:
2666/2400/2133MHz ECC DDR4 SDRAM
DIMM Sizes:
32GB, 16GB, 8GB, 4GB
Note:
Future support for 64GB via BIOS update expected in early 2019

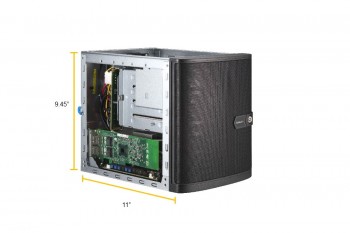

Mini Tower Chassis

Height:
9.45" (240mm)
Width:
8.27" (210mm)
Depth:
11" (279mm)

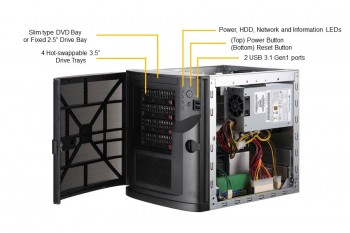

Buttons:
Power On/Off button
System Reset button
LEDs:
Power LED
Hard drive activity LED
Network activity LEDs
System Information LED
Ports:
2x USB 3.1 Gen1 ports

BIOS Type:
UEFI 256Mb
BIOS Features:
ACPI 6.0
SMBIOS 2.7
Plug and Play (PnP)
RTC (Real Time Clock) Wakeup
PCI F/W 3.0

Chipset:
Intel® C242 chipset
SATA:
SATA3 (6Gbps) via Intel C242 controller
RAID 0, 1, 5, 10 support
IPMI:
ASPEED AST2500
Network Controllers:
Dual LAN with Intel® I210-AT
Video:
ASPEED AST2500 BMC

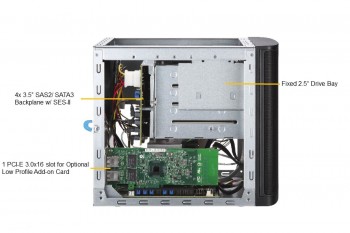

HDD:
4x Hot-swap 3.5" drive bays with BPN
2x internal 2.5" drive bays
Peripheral:
1x optional slim DVD-ROM bay

1 PCI-E 3.0 x16 slot, for low-profile AOC

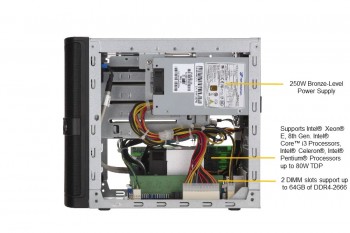

250W Flex ATX Multi-output Bronze Power Supply
AC Voltage:
100 - 240V, 50 - 60Hz
+5V:
Max:14 Amp; Min:0.5 Amp
+12V:
Max:18 Amp; Min:1 Amp @100V-240V
-12V:
Max: 0.3 Amp
+3.3V:
Max: 12 Amp Min: 0.3Amp
5VSB:
Max: 2.5 Amp
Certification:
80 PLUS

SATA:
4x SATA3 (6Gbps) ports

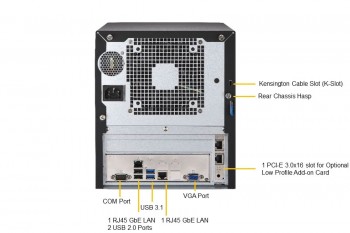

LAN:
2x RJ45 Gigabit Ethernet LAN ports
1x RJ45 Dedicated IPMI LAN port
USB:
2x USB 3.1 Gen1 (front)
2x USB 3.1 Gen1 (rear)
2x USB 2.0 (rear)
Video:
1x VGA port
Serial Port / Header:
1x COM port
DOM:
SATA DOM (Disk on Module) power connector support
TPM:
1x TPM 2.0 Header

RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature:
   10°C to 35°C (50°F to 95°F)
Non-operating Temperature:
   -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
   20% to 95% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
