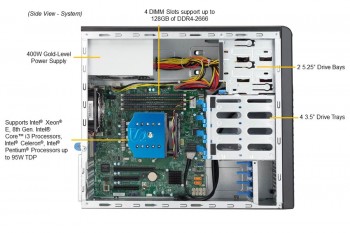

Single Socket H4 (LGA 1151),
CPU TDP support up to 95W
Support Intel® Xeon® E processors,
8th Gen. Intel® Core™ i3 Processors,
Intel® Celeron®, Intel® Pentium®

Memory Capacity:
4 DIMM slots
Up to 128GB ECC UDIMM
Up to DDR4-2666MHz
Memory Type:
2666/2400/2133MHz ECC DDR4 SDRAM
DIMM Sizes:
32GB, 16GB, 8GB
Note:
Future support for 128GB via BIOS update expected in early 2019

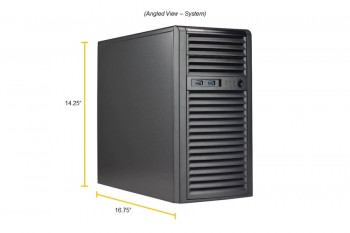

Mid-Tower Chassis

Height:
14.25" (362mm)
Width:
7.25" (184mm)
Depth:
16.75" (425mm)

Buttons:
Power On/Off button
LEDs:
Power LED
Hard drive activity LED
Network activity LED
System Information LED

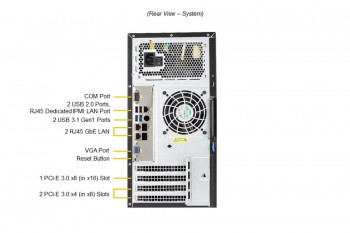

Ports:
2 USB 3.1 Gen 1 ports

BIOS Type:
UEFI 256Mb
BIOS Features:
ACPI 6.0
SMBIOS 2.7
Plug and Play (PnP)
RTC (Real Time Clock) Wakeup
PCI F/W 3.0

Chipset:
Intel® C242 chipset
SATA:
SATA3 (6Gbps) via Intel C242 controller
RAID 0, 1, 5, 10 support
Network Controllers:
Dual LAN with Intel® I210-AT

Internal:
4x Fixed 3.5" drive bays
Peripheral:
2x External 5.25" Peripheral bays

PCI-Express:
1x PCI-E 3.0 x8 (in x16) slot
2x PCI-E 3.0 x4 (in x8) slots
M.2:
M.2 Interface: 1 PCI-E 3.0 x4
M.2 Form Factor: 22110/2280
M.2 Key: M-Key

Super quiet operation with 12cm cooling fan and 80plus gold certification
Total Output Power and Input:
400W with Input 100 - 240Vac
AC Input Frequency:
50-60Hz
Dimensions (L x W x H):
140 x 150 x 86 mm
-12V:
Max: 0.3A
+12V:
18A
+5V:
Max: 22A
+3.3V:
Max: 24A
+5V standby:
Max: 3A
Certification:
80 PLUS Gold Certified

SATA:
6x SATA3 (6Gbps) ports
LAN:
2x RJ45 Ethernet LAN ports
1x RJ45 Dedicated IPMI LAN port
USB:
2x USB 3.1 (front)
2x USB 3.1 (rear)
2x USB 2.0 (rear)
Video:
1x VGA port
Serial Port / Header:
1x COM port
TPM:
1x TPM 2.0 Header

1x 9cm (rear) PWM fan w/ tool-less design
Optional 1x 8cm (front) cooling fan

RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature:
   10°C to 35°C (50°F to 95°F)
Non-operating Temperature:
   -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
   20% to 95% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
