5039C-T

$799.00

ADD TO CART

OVERVIEW

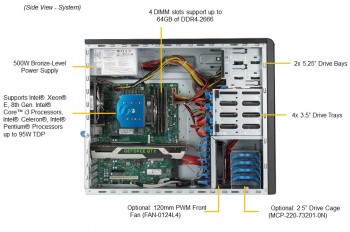

Supermicro 4Bays Single Processor Mid-Tower Server

Single socket H4 (LGA 1151) supports Intel® Xeon® E processor, 8th Gen. Intel® Core™ i3 Processors, Intel® Celeron®, Intel® Pentium®
Intel® C246 chipset
Up to 64GB ECC/non-ECC UDIMM, up to DDR4-2666MHz; 4x DIMM slots
2x PCI-E 3.0 x16 running at NA/16 or 8/8, 1x PCI-E 3.0 x4 slot, 1x PCI-E 3.0 x1 slot
2x M.2 (M-key, 2260/2280/22110), 1x U.2 for optional expanded storages
2x USB Type A & Type C, 4x USB 3.1 Gen1 (2x rear + 2x front), 2x USB 2.0 (front)
1x HDMI 2.0a port, 1x DVI-Dport, 1x DP 1.2 port, 1x TPM header, 1x COM header
4x Fixed 3.5", Opt. 4x 2.5" drive bays, 2x Standard 5.25" drive bays, 1x Fixed 3.5" device bay
500W Bronze Certified High Efficient Power Supply
Entry-Level Workstation, Designed for CAD and 3D Modeling Applications, NVIDIA® Quadro® Professional GPU Support

SPECIFICATIONS

SKU

5039C-T

Processor

CPU:
Single Socket H4 (LGA 1151),
CPU TDP support up to 95W
Support Intel® Xeon® E processors,
8th Gen. Intel® Core™ i3 Processors,
Intel® Celeron®, Intel® Pentium®
Core/Cache:
Up to 6-Cores

Memory

Memory Capacity:
4 DIMM slots
Up to 64GB ECC/non-ECC UDIMM
Up to DDR4-2666MHz
Memory Type:
2666/2400/2133MHz ECC DDR4 SDRAM
DIMM Sizes:
64GB, 32GB, 16GB, 8GB

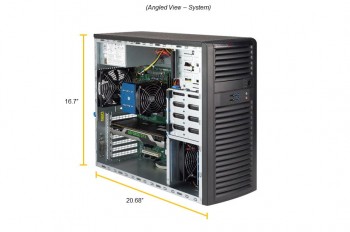

Chassis

Mid-Tower Chassis

Dimensions

Height:
16.7" (424mm)
Width:
7.6" (193mm)
Depth:
20.68" (525.3mm)

Front Panel

Buttons:
Power On/Off button
LEDs:
Power LED
Hard drive activity LED
Network activity LED
System Information LED
Ports:
2x USB 2.0 ports, 2x USB 3.1 Gen 1x ports
1x Line-out, 1 Mic-in

Bios	BIOS Type: UEFI 256Mb BIOS Features: ACPI 3.0 or later SMBIOS 2.7 or later SPI dual/quad speed support RTC wakeup

Onboard Devices

Chipset:

Intel® C246 chipset

SATA:

SATA3 (6Gbps) via Intel C246 controller

RAID 0, 1, 5, 10 support

Network Controllers

Single LAN with Intel® I210-AT

Single LAN with Intel® PHY I219LM

HDD Drive Bays

Internal:
4x Fixed 3.5" drive bays
Optional 4x internal 2.5" drive bays
Enterprise SATA HDD only recommended
Peripheral:
2x Standard 5.25" Peripheral drive bays
1x Internal 3.5" Fixed device bay

Expansion Slots

PCI-Express:
2x PCI-E 3.0 x16 running at NA/16 or 8/8
1x PCI-E 3.0 x4 slot
1x PCI-E 3.0 x1 slot
1x PCI 32bit 5V slot
M.2:
M.2 Interface: 2x PCI-E 3.0 x4
M.2 Form Factor: 2260/ 2280/ 22110
M.2 Key: M-Key (RAID 0,1 support)
U.2 Interface: 1x PCI-E 3.0 x4 (Shared with M.2#2)

Power Supply

500W AC power supply w/ PFC
AC Voltage:
100 - 240V, 50-60Hz, 7-3.5 Amp
+5V:
20 Amp
+5V standby:
3 Amp
+12V1:
17 Amp
+12V2:
17 Amp
+12V3:
17 Amp
+12V4:
18 Amp
-12V:
0.5 Amp
+3.3V:
15 Amp
Certification:
Bronze Level Bronze Certified

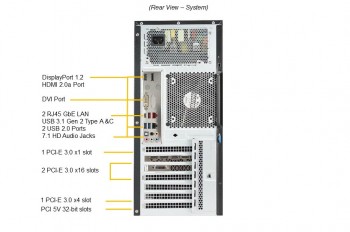

Input Output

SATA:
8x SATA3 (6Gbps) ports from Intel® C246
LAN:
2x RJ45 Ethernet LAN ports
USB:
2x USB 3.1 Gen 2 Type A and Type C (rear)
4x USB 3.1 Gen 1 (2x rear + 2x front)
2x USB 2.0 (front)
Video:
1x HDMI (2.0a) port
1x DVI-D port, 1 DisplayPort 1.2 port
Audio:
7.1 HD Jacks
Serial Port / Header:
1x COM port (header)
TPM:
1x TPM 2.0 Header

Cooling

1x 12cm rear exhaust fan
Optional 1x 12cm front cooling fan

Operating Environment

RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature:
10°C to 35°C (50°F to 95°F)
Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)

Details

PC Health Monitoring

CPU:

Monitors for CPU Cores, +1.8V, +3.3V, +5V, +-12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.

4+2-Phase-switching voltage regulator

FAN:

Low noise fan speed control

Temperature:

Monitoring for CPU and chassis environment

Thermal Control for 5x 4-pin fan connectors

PECI
