1029P-N32R

Please Inquire

Supermicro 1U 2x Drawer 32x 2.5" NVMe SSDs Dual Scalable CPU High End Server

Dual Socket P (LGA 3647)
Support 2nd Gen. Intel® Xeon® Scalable processors
24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM
Supports Intel® Optane™ DCPMM
2 PCI-E 3.0 x16 Low-profile slots
Dual Drawer/Tray
32x NVMe 2.5" SSDs
2x 10GBase-T LAN ports
Built in Intel QAT for Crypto/Compression
8x 40x56mm PWM fans
1600W Redundant Power Supplies Platinum Level
High Throughput Ingest, High Density Hot Storage, HPC / Data Analytics, Media/Video Streaming, Content Delivery Network (CDN), Big Data Top of Rack Storage

Storage configuration notice:
Hot-swap:
Dual Drawer/Tray with a total of 32 NVMe 2.5" SSDs
M.2:
2x M.2 Drive

To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 4 DIMMs and 4 NVMe).

SPECIFICATIONS

SKU	SYS-1029P-N32R

Processor

CPU:
Dual Socket P (LGA 3647)
2nd Gen. Intel® Xeon® Scalable Processors (Cascade Lake/Skylake),
3 UPI up to 10.4GT/s
Support CPU TDP up to 140W

Cores:
Up to 22 Cores

Note:
BIOS version 3.0a or above is required to support 2nd Gen. Intel® Xeon® Scalable processors

Memory

Memory Capacity:
24 DIMM slots
Up to 6TB 3DS ECC DDR4-2933MHz RDIMM
Supports Intel® Optane™ DCPMM

Memory Type:
2933/2666/2400/2133MHz ECC DDR4 RDIMM

Note:
2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
Cascade Lake only. Contact your Supermicro sales rep for more info.

Chassis

1U Rackmount Chassis

Dimensions

Height:
1.7" (43mm)

Width:
17.26" (438mm)

Depth:
35.95" (913mm)

Front Panel

Buttons:
Power On/Off button
UID button

LEDs:
Power LED
Hard drive activity LED
Network activity LEDs
System Overheat LED / Fan fail LED /
UID LED

Bios	BIOS Type: AMI 32Mb SPI Flash ROM

Onboard Devices

Chipset:
Intel® C627 chipset

Network Connectivity:
Intel® X550 Dual Port 10GBase-T

IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Graphics:
ASPEED AST2500 BMC

HDD Drive Bays

Hot-swap:
Dual Drawer/Tray with a total of 32 NVMe 2.5" SSDs

Expansion Slots

PCI-Express:
2 PCI-E 3.0 x16 Low-profile slots

M.2:
M.2 Interface: 2 PCI-E 3.0 x2, RAID 0, 1
M.2 Form Factor: 2260/2280/22110
M.2 Key: M-Key

Power Supply

1000 / 1600W 1U Redundant Power Supply

Total Output Power:
1000W / 1600W

Dimension (W x H x L):
73.5 x 40 x 185 mm

Input:
100 -- 127Vac / 13.8A / 47-63Hz
200 -- 240Vac / 9.6A / 47-63Hz
200 -- 240Vdc / 8.5A (CCC Only)

+12V:
Max: 83A / Min: 0A (1000W)
Max: 132A / Min: 0A (1600W)

12Vsb:
Max: 2.1A / Min: 0A

Output Type:
Gold Finger

Certification:
Platinum Level Certified

Input Output

LAN:

2 RJ45 10GBase-T ports

1 RJ45 Dedicated IPMI LAN port

USB:

2 USB 3.0 ports (rear)

Video:

1 VGA port

Serial Header

1 COM port (header)

Cooling

8x 40x56mm PWM fans

Operating Environment

RoHS:
RoHS Compliant

Environmental Spec.:
Operating Temperature:
10°C ~ 30°C (50°F ~ 86°F)
Non-operating Temperature:
-40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)

Details

Software:
Intel® Node Manager
IPMI 2.0
KVM with dedicated LAN
NMI
SSM, SPM, SUM
SuperDoctor® 5
Watch Dog

Power Configurations:
ACPI / APM Power Management

PHOTOS

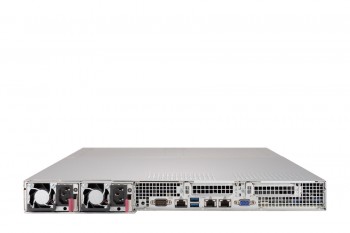

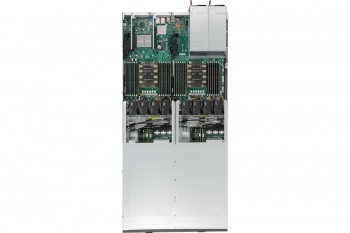

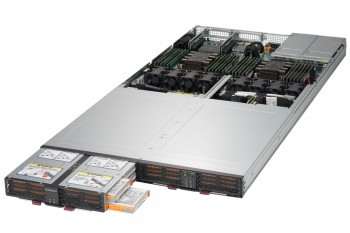

1029P-N32R

MY CONFIGURATION

CPU

Intel® Xeon® Scalable Platinum Processor 8180 (2.50 Ghz 205W)

Intel® Xeon® Scalable 2nd Gen Bronze Processor 3206R (1.90 Ghz 85W)

Intel® Xeon® Scalable 2nd Gen Bronze Processor 3204 (1.90 Ghz 85W)

Added

Intel® Xeon® Scalable 2nd Gen Gold Processor 5222 (3.80 Ghz 105W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 5218 (2.30 Ghz 125W)

Intel® Xeon® Scalable 2nd Gen Silver Processor 4214R (2.40 Ghz 100W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 6222 (1.80 Ghz 115W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 5215 (2.50 Ghz 85W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 6230 (2.10 Ghz 125W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 5220 (2.20 Ghz 125W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 6262 (1.90 Ghz 135W)

Intel® Xeon® Scalable 2nd Gen Silver Processor 4215R (3.20 Ghz 130W)

Intel® Xeon® Scalable 2nd Gen Silver Processor 4215 (2.50 Ghz 85W)

Intel® Xeon® Scalable 2nd Gen Silver Processor 4210R (2.40 Ghz 100W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 5218R (2.10 Ghz 125W)

Intel® Xeon® Scalable 2nd Gen Silver Processor 4216 (2.10 Ghz 100W)

MEMORY

Samsung 8GB DDR4 2933 ECC RDIMM Memory

Added

Samsung 32GB DDR4 2933 ECC RDIMM Memory

Samsung 16GB DDR4 2933 ECC RDIMM Memory

Samsung 64GB DDR4 2933 ECC RDIMM Memory

Samsung 32GB DDR4 3200 ECC RDIMM Memory

Samsung 16GB DDR4 3200 ECC RDIMM Memory

Samsung 8GB DDR4 3200 ECC RDIMM Memory

Samsung 64GB DDR4 3200 ECC RDIMM Memory

Hynix 64GB DDR4 2666 ECC LRDIMM Memory

Samsung 64GB DDR4 2933 ECC LRDIMM Memory

Samsung 128GB DDR4 3200 ECC LRDIMM Memory

NVMe M.2

Micron 7400 Pro NVMe M.2 (22x110) SSD 3.84TB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB

Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB

Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB

SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB

SAMSUNG PM9A3 M.2 Nvme SSD 960GB

Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB

SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB

Micron 7400 Pro NVMe M.2 (22x80) SSD 960GB

Micron 7400 Pro NVMe M.2 (22x110) SSD 1.92TB

WD Black SN850 M.2 G4 NVMe SSD 2TB

Micron 7400 Pro NVMe M.2 (22x80) SSD 480GB

Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB

WD Black SN850 M.2 G4 NVMe SSD 1TB

Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB

Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB

Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB

WD Black SN850 M.2 G4 NVMe SSD 500GB

Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB

Micron 7400 MAX NVMe M.2 (22x80) SSD 800GB

Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB

Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB

Micron 7400 MAX NVMe M.2 (22x80) SSD 400GB

Samsung 983 DCT M.2 NVMe SSD 1.92TB

*No NVMe M.2 Drives

Added

Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB

Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB

Samsung 983 DCT M.2 NVMe SSD 960GB

NVMe U.2/U.3

Micron 7450 PRO NVMe U.3 (15mm) SSD 960GB

Micron 7400 MAX NVMe U.3 (7mm) SSD 6.4TB

Samsung PM9A3 2.5" U.2 NVMe SSD 7.68TB

Micron 7450 MAX NVMe U.3 (15mm) SSD 12.8TB

Samsung PM9A3 2.5" U.2 NVMe SSD 960GB

Samsung PM9A3 2.5" U.2 NVMe SSD 1.92TB

Samsung PM9A3 2.5" U.2 NVMe SSD 15TB

Samsung PM9A3 2.5" U.2 NVMe SSD 3.84TB

Micron 7450 PRO NVMe U.3 (15mm) SSD 15.36TB

Micron 7450 PRO NVMe U.3 (15mm) SSD 3.84TB

Micron 7450 PRO NVMe U.3 (15mm) SSD 1.92TB

Micron 7450 PRO NVMe U.3 (15mm) SSD 7.68TB

Micron 7450 MAX NVMe U.3 (15mm) SSD 800GB

Micron 7450 MAX NVMe U.3 (15mm) SSD 3.2TB

Micron 7450 MAX NVMe U.3 (15mm) SSD 1.6TB

Micron 7450 MAX NVMe U.3 (15mm) SSD 6.4TB

Micron 7400 PRO NVMe U.3 (7mm) SSD 960GB

Added

Samsung 983 DCT 2.5" U.2 NVMe SSD 960GB

*No NVMe U.2 Drives

Micron 7400 PRO NVMe U.3 (7mm) SSD 7.68TB

Samsung 983 DCT 2.5" U.2 NVMe SSD 1.9TB

Micron 7400 MAX NVMe U.3 (7mm) SSD 3.2TB

Micron 7400 PRO NVMe U.3 (7mm) SSD 3.84TB

Micron 7400 MAX NVMe U.3 (7mm) SSD 800GB

Micron 7400 MAX NVMe U.3 (7mm) SSD 1.6TB

Micron 7400 PRO NVMe U.3 (7mm) SSD 1.92TB

NETWORK CARD

Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)

Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)

Broadcom NetXtreme 50G PCIe 3.0 x8 Ethernet Card (1x QSFP28)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)

Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)

Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)

Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)

Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)

Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)

Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)

Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)

*No Network Card

Added

Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)

Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)

Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)

Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)

Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)

Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)

Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)

Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)

Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)

Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)

OPERATING SYSTEM

*Please contact our sales for more operating system options

Added

Debian Linux (No Media) (32-Bit/64-Bit)

CentOS Enterprise Linux (No Media) (32-Bit/64-bit)

Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)

Fedora Linux Workstation Edition 64-bit (No Media)

Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)

Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)

Microsoft Windows Server 2022 Standard 64-bit-1User

WARRANTY

*1 Year Parts Replacement Warranty

Added

3 Year Parts Replacement Warranty - Server Value $500 to $2000

3 Year Parts Replacement Warranty - Server Value $2001 to $4000

3 Year Parts Replacement Warranty - Server Value $4001 to $7000

3 Year Parts Replacement Warranty - Server Value $7001 to $10000

3 Year Parts Replacement Warranty - Server Value Over $10000
