2013S-C0R

Please Inquire

SuperMicro 2U 8Bays Single Processor AMD Rackmount Server

Single AMD EPYC™ 7002-Series Processor
Up to 1TB Reg ECC DDR4 2666MHz SDRAM in 8 DIMMs
Up to 2TB Reg ECC DDR4 3200MHz SDRAM in 8 DIMMs
(Board revision 2.x required)
3x PCI-E 3.0 x16 (low profile)
3x PCI-E 3.0 x8 (low profile),
M.2 Interface: PCI-E 3.0 x4 (NVMe based)
M.2 Form Factor: 2280, 22110, M.2 Key: Onboard M-key
Number of M.2: Single
Integrated IPMI 2.0 + KVM with, dedicated LAN,
Software Out of Band License key (SFT-OOB-LIC) included for OOB BIOS management
2x 1GbE LAN ports via Intel® I210
8 hot-swap 3.5" SAS3/SATA3 Drive Bays (on-board Broadcom 3008 IR mode), 1 M.2 NVMe SSD slot Supported
740W Redundant Platinum Level, high-efficiency Power Supplies (Full redundancy based on configuration and application load)
Cloud and Virtualization needs, Connectivity/Storage Computer Nodes, Database Processing & Storage, High End Enterprise Server, Hosting & Application delivery

Storage configuration notice:
Hot-swap:
8x Hot-swap 3.5" SATA/SAS drive bays
M.2:
1x M.2 Drive

SKU	AS-2013S-C0R

Processor

CPU:
Single AMD EPYC™ 7002-series Processor (up to 200W)
Socket SP3

Cores:
Up to 32 Cores

Chipset:
System on Chip (SoC)

Memory

Memory Capacity:
8 DIMM slots
Supports up to 1TB Registered ECC DDR4 2666MHz SDRAM
8-channel memory bus

Memory Type:
DDR4 2666 MHz Registered ECC, 240-pin gold-plated DIMMs

DIMM Sizes:
4GB, 8GB, 16GB, 32GB, 64GB, 128GB

Memory Voltage:
1.2V

Error Detection:
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

Chassis

2U Rackmount Chassis

Dimensions

Height:
3.5" (89mm)

Width:
17.2" (437mm)

Depth:
25.5" (647mm)

Front Panel

Buttons:
Power On/Off button
System Reset button

LEDs:
Power LED
Hard drive activity LED
2x Network activity LEDs
System Overheat LED / Fan fail LED /
UID LED

Bios	BIOS Type: AMI 128Mb SPI Flash EEPROM BIOS Features: Plug and Play (PnP) DMI 2.3 PCI 2.2 ACPI 5.1 USB Keyboard Support SMBIOS 3.1.1

Onboard Devices

SATA/SAS:
SATA3 (6 Gbps)
Broadcom 3008 SAS3 (12 Gbps) controller
IR mode; RAID 0, 1, 10

IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2500 BMC

Network Controllers:
Intel® I210 Controller

VGA:
ASPEED AST2500 BMC

HDD Drive Bays

8 hot-swap 3.5" SAS3/SATA3 Drive Bays

Expansion Slots

PCI Express:
3 PCI-E 3.0 x16 (low profile)
3 PCI-E 3.0 x8 (low profile)

M.2:
Interface: PCI-E 3.0 x4 (NVMe based)
Form Factor: 2280, 22110
Key: Onboard M-key
Number of M.2: Single

Power Supply

740W Redundant high-efficiency power supply with PMBus

AC Input:
100-240 V, 50-60 Hz, 9-3.5 Amp

DC Output:
4 Amp @ +5V standby
61.7 Amp @ +12V

Certification:
Platinum Level Certified

Input Output

SATA/SAS:
8 SATA3 (6 Gbps) /
8 SAS3 ports via Broadcom 3008

LAN:
2x 1GbE LAN ports
1 RJ45 Dedicated IPMI LAN port

USB:
3 USB 3.0 ports
2 USB 2.0 ports

VGA:
1 VGA port

Others:
1 COM port (rear)
2 SATA DOM power connector
TPM 1.2 header

Cooling

3 heavy-duty PWM fans with optimal fan speed control

Operating Environment

RoHS:
RoHS Compliant

Environmental Spec.:
Operating Temperature:
10°C to 35°C (50°F to 95°F)
Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)

Details

PC Health Monitoring

CPU:
Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT
CPU switching voltage regulator

FAN:
Fan status tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors

Temperature:
Monitoring for CPU and chassis environment
CPU Thermal Trip Support
Thermal control for 8x Fan connectors
I²C Temperature Sensing Logic

LED:
CPU / System Overheat LED

Other Features:
Chassis Intrusion Detection
Chassis Intrusion Header

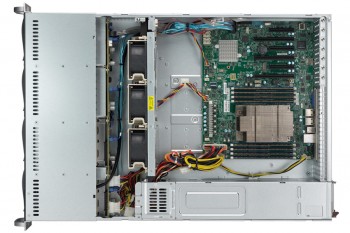

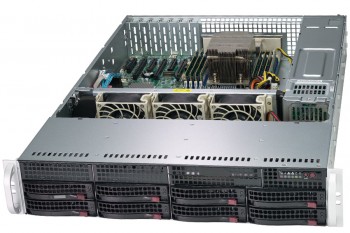

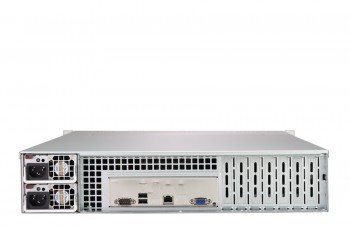

PHOTOS
