1113S-WN10RT

Please Inquire

Supermicro 1U 10Bays Single Processor AMD Rackmount Server

Single AMD EPYC™ 7002-Series Processor
Up to 2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs
Up to 4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs
(Board revision 2.x required)
2x PCI-E 3.0 x16 (FH/HL) slots, 1x PCI-E 3.0 x16 (LP) slot
2x M.2 PCI-E 3.0 (NVMe based)
Integrated IPMI 2.0 + KVM with dedicated LAN
2x 10GBase-T LAN ports, via Broadcom BCM57416
10x hot-swap 2.5" U.2 NVMe drive bays
4x SATA3 drive support with additional cables (optional)
750W Redundant Power Supplies Platinum Level (94%)
Virtualization, Cloud Computing, All Flash Storage

Storage configuration notice:
Hot-swap:
10x 2.5" NVMe storage devices
4 of them SAS3/SATA3 compatible

To maintain quality and integrity, this product is sold only as a completely-assembled system (with 1 CPU, minimum 8 DIMMs, 1 NVMe). Recommended configuration for best performance is at least 24 or 32 Cores per CPU.

SPECIFICATIONS

SKU	AS-1113S-WN10RT

Processor

CPU:
Single AMD EPYC™ 7002-series Processor
Socket SP3

Cores:
Up to 32 Cores

Chipset:
System on Chip (SoC)

Memory

Memory Capacity:
16 DIMM slots
Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM
8-channel memory bus

Memory Type:
DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs (7001 Processors)
DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required + 7002 Processors)

DIMM Sizes:
4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB*
(* Board revision 2.x required + 7002 Processors)

Memory Voltage:
1.2V

Error Detection:
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

Chassis

1U Rackmount Chassis

Dimensions

Height:
1.7" (43mm)

Width:
17.2" (437mm)

Depth:
23.5" (597mm)

Front Panel

Buttons:
Power On/Off button
System Reset button

LEDs:
Power LED
Hard drive activity LED
2x Network activity LEDs
System Overheat LED / Fan fail LED /
UID LED

Bios	BIOS Type: AMI 128Mb SPI Flash EEPROM BIOS Features: Plug and Play (PnP) DMI 2.3 PCI 2.2 ACPI 5.1 USB Keyboard Support SMBIOS 3.1.1

Onboard Devices

IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2500 BMC

Network Controllers:
Broadcom BCM57416 Controller

VGA:
ASPEED AST2500 BMC

HDD Drive Bays

10 hot-swap 2.5" U.2 NVMe drive bays

Expansion Slots

PCI Express:
2 PCI-E 3.0 x16 (FH/HL) slots
1 PCI-E 3.0 x16 (LP) slot

M.2:
Interface: PCI-E 3.0 x2 (NVMe based)
Form Factor: 2280, 22110
Key: Onboard M-key
Number of M.2: 2

Power Supply

700W/750W Redundant Power Supplies with PMBus
Total Output Power:
700W/750W

Dimension (W x H x L):
54.5 x 40.25 x 320 mm

Input:
100 - 140Vac / 8 - 6A / 50-60Hz
200 - 240Vac / 4.5 - 3.8A / 50-60Hz
200 - 240Vdc / 4.5 - 3.8A (CCC Only)

+12V:
Max: 58A / Min: 0.5A (100 - 140Vac)
Max: 62A / Min: 0.5A (200 - 240Vac)
Max: 62A / Min: 0.5A (200 - 240Vdc)
(CB/CCC Only)

+5V sb:
Max: 3A / Min: 0A

Output Type:
Gold Finger Connector Mating with Molex 45984-4343

Certification:
Platinum Level Certified

Input Output

NVMe:
Up to 10 U.2 NVMe support

SATA:
Optional 4 SATA3 (6 Gbps) support via additional cables

LAN:
2x 10GbBase-T LAN ports
1 RJ45 Dedicated IPMI LAN port

USB:
7 USB 3.0 ports (4 rear + 2 front + 1 Type A)

VGA:
1 VGA port

Others:
1 COM port
2 SATA DOM power connectors
TPM 1.2 header

Cooling

Fans:
6 heavy-duty PWM fans with optimal fan speed control

Air Shroud:
1 Air Shroud

Operating Environment

RoHS:
RoHS Compliant

Environmental Spec.:
Operating Temperature:
10°C to 30°C (50°F to 86°F)
Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)

Details

PC Health Monitoring

CPU:
Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT
CPU switching voltage regulator

FAN:
Up to 6-fan status tachometer monitoring
Up to six 4-pin fan headers
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors

Temperature:
Monitoring for CPU and chassis environment
CPU Thermal Trip Support
Thermal control for 6x Fan connectors
I²C Temperature Sensing Logic

LED:
CPU / System Overheat LED

Other Features:
Chassis Intrusion Detection
Chassis Intrusion Header

PHOTOS

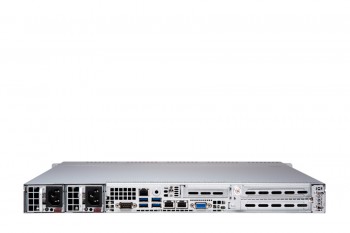

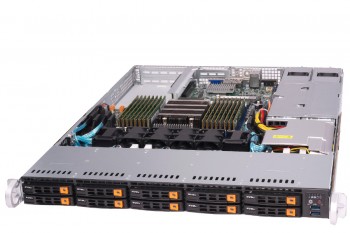

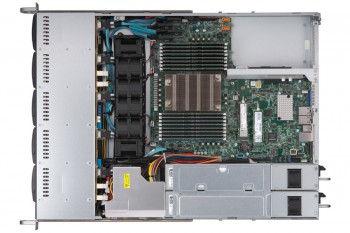

1113S-WN10RT
