R282-Z93

Please Inquire

Gigabyte 2U 12Bays Dual Processor AMD Rackmount Server

Supports up to 3 x double slot GPU cards
NVIDIA® NGC™ Ready server
Dual AMD EPYC™ 7002 series processor family
8-Channel RDIMM/LRDIMM DDR4 per processor, 32 x DIMMs
2 x 1Gb/s LAN ports (Intel® I350-AM2)
1 x Dedicated management port
12 x 3.5" SATA hot-swappable HDD/SSD bays
Ultra-Fast M.2 with PCIe Gen3 x4 interface
5 x PCIe Gen4 x16 expansion slots
1 x OCP 3.0 Gen4 x16 mezzanine slot
1 x OCP 2.0 Gen3 x8 mezzanine slot
Aspeed® AST2500 remote management controller
2000W 80 PLUS Platinum redundant power supply

Storage configuration notice:
Hot-swap:
12x 3.5" SATA/SAS hot-swappable HDD/SSD bays
SAS card is required for SAS devices support

SPECIFICATIONS

SKU

R282-Z93

Processor

AMD EPYC™ 7002 series processor family
Dual processors, 7nm, Socket SP3
Up to 64-core, 128 threads per processor
TDP up to 225W, cTDP up to 240W

Conditional support 280W

NOTE:

If only 1 CPU is installed, some PCIe or memory functions might be unavailable

Compatible with AMD EPYC™ 7001 series processor family

Memory

3‎2 x DIMM slots
DDR4 memory supported only
8-Channel memory per processor architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
Memory speed: Up to 3200*/ 2933 MHz

Note:
Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC

Chassis

2U Rackmount Chassis

Dimensions

438mm x87mm x730mm

Onboard Devices

LAN
2‎ x 1GbE LAN ports (1 x Intel® I350-AM2)
1 x 10/100/1000 management LAN

Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

HDD Drive Bays

1‎2 x 3.5" SATA/SAS hot-swappable HDD/SSD bays from onboard SATA ports
2.5" HDD/SSD supported
Default configuration supports:
12 x SATA drives
or
4 x SATA drives
8 x SAS drives via SAS HBA

Note:

SAS card is required for SAS devices support

Expansion Slots

Riser Card CRS2014:
1 x PCIe x16 slot (Gen4 x16), FHFL

Riser Card CRS2026:
2 x PCIe x16 slot (Gen4 x16), FHFL

1 x OCP 3.0 mezzanine slot with PCIe Gen4 x16 bandwidth from CPU_0
Supported NCSI function

1 x OCP 2.0 mezzanine slot with PCIe Gen3 x8 bandwidth (Type1, P1, P2)
Supported NCSI function

1 x M.2 slot:
M-key
PCIe Gen3 x4
Supports NGFF-2242/2260/2280/22110 cards
CPU TDP is limited to 225W if using M.2 device

NOTE:

Support is not provided for mixed GPU populations

Power Supply

2‎ x 2000W redundant PSU
80 PLUS Platinum

AC Input:
100-120V~/ 12A, 50-60Hz
180-240V~/ 10A, 50-60Hz

DC Input:
240Vdc/ 10A

DC output:
1000W@100-120V, +12.2V/ 81.5A, +12Vsb/ 2.5A
1600W@180-199V, +12.2V/ 131A, +12Vsb/ 2.5A
1800W@200-220V, +12.2V/ 147.5A, +12Vsb/ 2.5A
2000W@221-240V, +12V/ 163.5A, +12Vsb/ 2.5A

Input Output

Internal I/O
1‎x M.2 slot
1x USB 3.0 header
1x COM header
1x TPM header
1x Front panel header
1x HDD back plane board header
1x PMBus connector
1x IPMB connector
1x Clear CMOS jumper
1x BIOS recovery jumper

Front I/O
2 x USB 3.0
1x Power button with LED
1x ID button with LED
1x Reset button
1x NMI button
1x System status LED
1x HDD activity LED
2x LAN activity LEDs

Rear I/O
2x USB 3.0
1x VGA
2x RJ45
1x MLAN
1x ID button with LED

Cooling

4‎ x 80x80x38mm (16,300rpm)

Operating Environment

Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Ambient temperature limited to 30°C if using 280W CPU

Details

System Management
Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
JAVA Based Serial Over LAN
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

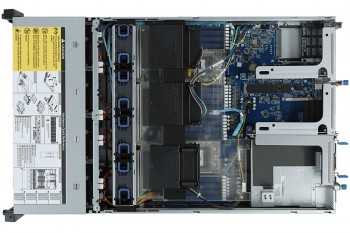

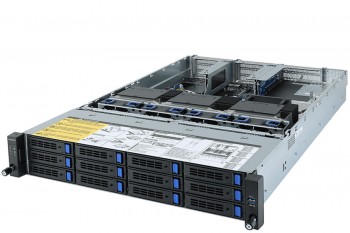

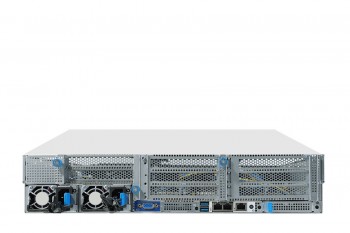

PHOTOS

R282-Z93

MY CONFIGURATION

CPU

AMD ROME EPYC™ 7302P Processor (3.0Ghz,155W)

AMD ROME EPYC™ 7352 Processor (2.3Ghz,155W)

AMD ROME EPYC™ 7302 Processor (3.0Ghz,155W)

AMD ROME EPYC™ 7272 Processor (2.9Ghz,120W)

AMD ROME EPYC™ 7642 Processor (2.3Ghz,225W)

AMD ROME EPYC™ 7702P Processor (2.0Ghz,200W)

AMD ROME EPYC™ 7702 Processor (2.0Ghz,200W)

AMD ROME EPYC™ 7452 Processor (2.35Ghz,155W)

AMD ROME EPYC™ 7402P Processor (2.8Ghz,180W)

AMD ROME EPYC™ 7502 Processor (2.5Ghz,180W)

AMD ROME EPYC™ 7502P Processor (2.5Ghz,180W)

AMD ROME EPYC™ 7552 Processor (2.2Ghz,200W)

AMD ROME EPYC™ 7542 Processor (2.9Ghz,225W)

AMD ROME EPYC™ 7402 Processor (2.8Ghz,180W)

AMD ROME EPYC™ 7262 Processor (3.2Ghz,155W)

AMD ROME EPYC™ 7252 Processor (3.1Ghz,120W)

Added

AMD ROME EPYC™ 7282 Processor (2.8Ghz,120W)

MEMORY

Samsung 16GB DDR4 2933 ECC RDIMM Memory

Samsung 8GB DDR4 2933 ECC RDIMM Memory

Added

Samsung 32GB DDR4 2933 ECC RDIMM Memory

Samsung 16GB DDR4 3200 ECC RDIMM Memory

Samsung 32GB DDR4 3200 ECC RDIMM Memory

Samsung 8GB DDR4 3200 ECC RDIMM Memory

Samsung 64GB DDR4 3200 ECC RDIMM Memory

Samsung 64GB DDR4 2933 ECC RDIMM Memory

Samsung 64GB DDR4 2933 ECC LRDIMM Memory

Hynix 64GB DDR4 2666 ECC LRDIMM Memory

Samsung 128GB DDR4 3200 ECC LRDIMM Memory

Enterprise-Class HDD/SSD

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 12TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 16TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 18TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 18TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 16TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 10TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 4TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 6TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 8TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 8TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 22TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 20TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 20TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB

Added

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 14TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 12TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 10TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 2TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 4TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 14TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 6TB

RAID CONTROLLER CARD

*NO RAID Controller Card

Added

LSI MegaRAID 9361-8i SAS 12Gb/s 8-Port 2GB Cache Controller with Battery Backup

LSI 9560-16I TRI MODE NVMe RAID CONTROLLER

Areca ARC-1886-16i 16 Ports SAS/SATA/NVMe RAID Controller Card

Areca ARC-1886-4x12i 4+12 Ports SAS/SATA/NVMe RAID Controller Card

NETWORK CARD

Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)

Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)

Broadcom NetXtreme 50G PCIe 3.0 x8 Ethernet Card (1x QSFP28)

Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)

Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)

Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)

Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)

Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)

Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)

Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)

Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)

*No Network Card

Added

Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)

Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)

Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)

Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)

Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)

Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)

Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)

Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)

GPU/Coprocessor

ASUS GeForce RTX 3090 TURBO GDDR6 Video Card 24G

Gigabyte GeForce RTX™ 3080 TURBO 10G (rev. 2.0) Graphics Card

NVIDIA L40 48GB GDDR6 GPU Card

NVIDIA H100 80GB HBM2e GPU Card

NVIDIA L40S 48GB GDDR6 GPU Card

ASUS GeForce RTX 3070 TURBO V2 Lite Hash Rite(LHR) Video Card 8GB

NVIDIA RTX 6000 ADA GDDR6 Video Card 48GB

NVIDIA RTX 4500 ADA GDDR6 Video Card 24GB

NVIDIA A100 80GB HBM2e GPU Card

NVIDIA RTX 5000 ADA GDDR6 Video Card 32GB

GIGABYTE GeForce RTX 3090 TURBO Video Card 24G

ASUS GeForce RTX 3080 TURBO GDDR6 Video Card 10G

NVIDIA RTX 4000 ADA GDDR6 Video Card 20GB

*No GPU

Added

OPERATING SYSTEM

*Please contact our sales for more operating system options

Added

Debian Linux (No Media) (32-Bit/64-Bit)

CentOS Enterprise Linux (No Media) (32-Bit/64-bit)

Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)

Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)

Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)

Fedora Linux Workstation Edition 64-bit (No Media)

Microsoft Windows Server 2025 Standard 64-bit-1User

WARRANTY

*1 Year Parts Replacement Warranty

Added

3 Year Parts Replacement Warranty - Server Value $500 to $2000

3 Year Parts Replacement Warranty - Server Value $2001 to $4000

3 Year Parts Replacement Warranty - Server Value $4001 to $7000

3 Year Parts Replacement Warranty - Server Value $7001 to $10000

3 Year Parts Replacement Warranty - Server Value Over $10000
