2029U-MTNRV-NEBS

Please Inquire

SuperServer 2029U-MTNRV-NEBS 2U 6 Bays Intel® Xeon Dual Socket Complete System

NEBS Level 3 Certified
Dual Socket P (LGA 3647)
Intel® Xeon® Gold 6240R
24 DIMMs; up to 1.5TB 3DS ECC DDR4-2933MHz† RDIMM
Up to 8 PCI-E Add-on Cards
Flexible LAN options
6 Hot-swap 2.5" drive bays
6 Hot-swap Heavy duty 6cm PWM fans
NVMe/SATA ports (NVMe from CPU1) or 6 SATA ports
1600W Redundant Power Supplies
Titanium Level (96%)
GPU Support (Optional)
Telecom Central Office and Data Center, 5G Core and Edge Computing, AI Inference and Machine Learning, Network Functions Virtualization, Cloud Computing

Storage configuration notice:
Hot-swap:
6x Hot-swap 2.5" drive bays, 6x NVMe/SATA ports (NVMe from CPU1) or 6x SATA ports; Optional SAS support via SAS storage controller
Note: SAS3 or NVMe support requires additional optional parts
M.2:
1x M.2 PCI-E 3.0 x4 M-Key NVMe (2240/2260/2280/22110) or 1x M.2 M-Key SATA3 (2240/2260/2280/22110) via optional parts
2x M.2 PCI-E 3.0 x4 M-Key NVMe (2260/2280/22110) via optional add-on card AOC-SLG3-2M2

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 4 DIMMs, 1 NIC adapter*). *NIC adapter requirement includes 1 Ultra Riser card.

SPECIFICATIONS

SKU	2029U-MTNRV-NEBS

Processor

CPU:

Dual Socket P (LGA 3647)
Intel® Xeon® Gold 6240R Processors (2.4GHZ) integrated for Complete System
CPU TDP 165W

Memory

Memory Capacity:

24 DIMM slots

Up to 1.5TB 3DS ECC DDR4-2933MHz† RDIMM

Memory Type:

2933†/2666/2400/2133MHz ECC DDR4 RDIMM

2666 ECC DDR4 NVDIMM

Note:

2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro

Chassis

2U Short Depth Rackmount

Dimensions

Width

17.2" (432mm)

Height

3.5" (89mm)

Depth

22.6" (574mm)

Front Panel

Front Bezel:

2U Front Bezel

Replaceable UL900-2004 certified air filter

Buttons:

Power On/Off button

System Reset button

LEDs:

Power status LED

HDD activity LED

Network activity LEDs

System information (overheat/UID) LED

Bios	BIOS Type: AMI 32Mb SPI Flash ROM

Onboard Devices

Chipset:

Intel® C621 chipset

SATA:

SATA3 (6Gbps); RAID 0, 1, 5, 10

Network Connectivity:

Flexible Networking options

Graphics:

ASPEED AST2500 BMC

HDD Drive Bays

Hot-swap:

6 Hot-swap 2.5" drive bays, 6 NVMe/SATA ports (NVMe from CPU1) or 6 SATA ports; Optional SAS support via SAS storage controller

Note: SAS3 or NVMe support requires additional optional parts

M.2:

1 M.2 PCI-E 3.0 x4 M-Key NVMe (2240/2260/2280/22110) or 1 M.2 M-Key SATA3 (2240/2260/2280/22110) via optional parts

2 M.2 PCI-E 3.0 x4 M-Key NVMe (2260/2280/22110) via optional add-on card AOC-SLG3-2M2

Expansion Slots

PCI-Express:

2 PCI-E 3.0 x16 (FH, 10.5"L)

4 PCI-E 3.0 x8 (FH, 10.5"L)

1 PCI-E 3.0 x8 (LP)

1 PCI-E 3.0 x8 (int)

(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)

Power Supply

1600W Redundant Power Supplies with PMBus:

Total Output Power:

1600W/1000W

Dimension:

(W x H x L)

73.5 x 40 x 203 mm

Input:

100-127Vac / 13 - 9A / 50-60Hz

200-240Vac / 10 - 8A / 50-60Hz

+12V:

Max: 83.3A / Min: 0A (100-127Vac)

Max: 133A / Min: 0A (200-240Vac)

12Vsb:

Max: 2.1A / Min: 0A

Output Type:

25 Pairs Gold Finger Connector

Input Output

SATA:

6 SATA3 (6Gbps) ports

LAN:

Flexible LAN options

USB:

2 USB 3.0 ports (rear)

Video:

1 VGA Connector

Serial Header:

1 Serial header

DOM:

2 SuperDOM (Disk on Module) ports

Cooling

Fans:
6 Hot-swap Heavy duty fans with optimal fan speed control

Air Shroud:
1 Set of Air Shroud

Operating Environment

RoHS

RoHS Compliant

Environmental Spec.

Operating Temperature:

Continuous: 5°C ~ 40°C (41°F ~ 104°F)

Short term: -5°C ~ 55°C (23°F ~ 131°F)

Non-operating Temperature:

-40°C to 70°C (-40°F to 158°F)

Operating Relative Humidity:

5% to 85% with excursion of

5% to 93% (non-condensing)

Non-operating Relative Humidity:

5% to 95% (non-condensing)

Details

Software:

Intel® Node Manager

Redfish API

IPMI 2.0

KVM with dedicated LAN

NMI

SSM, SPM, SUM

SuperDoctor® 5

Power Configurations:

ACPI Power Management

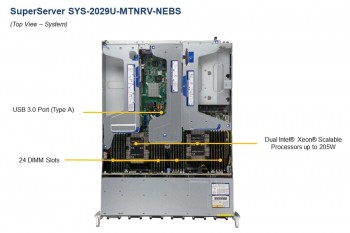

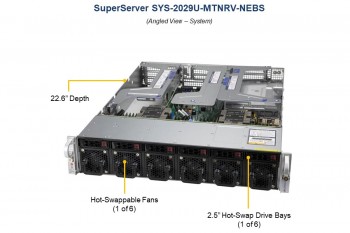

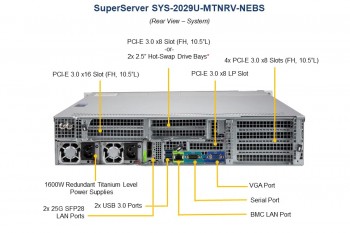

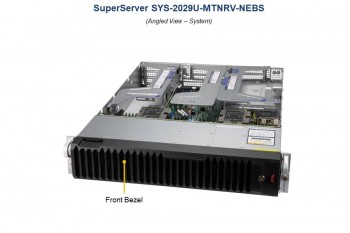

PHOTOS
