G292-Z20

Please Inquire

Gigabyte 2U 8Bays Single AMD EPYC™ 7002 Gen4 GPU Server

Supports up to 8 x double slot GPU cards
AMD EPYC™ 7002 series processor family
8-Channel RDIMM/LRDIMM DDR4, 8 x DIMMs
2 x 10Gb/s SFP+ LAN ports (Mellanox® ConnectX-4 Lx controller)
1 x Dedicated management port
8 x 2.5" hot-swappable HDD/SSD bays
2 x M.2 with PCIe Gen3 x4/x2 interface
8 x PCIe Gen4 expansion slots for GPUs
2 x PCIe Gen4 x16 half-length low-profile slots for add-on cards
Aspeed® AST2500 remote management controller
2+0 2200W 80 PLUS Platinum power supply

Storage configuration notice:
Hot-swap:
6x 2.5" SATA/SAS hot-swappable HDD/SSD bays
2x 2.5" U.2 hot-swappable SSD bays
SAS card is required for SAS devices support、
M.2:
1x M.2 Drive

SPECIFICATIONS

SKU

G292-Z20

Processor

AMD EPYC 7002 series

Memory

8x DIMM, Up to 512GB RDIMM, 1TB LRDIMM

Chassis

2U Rackmount Chassis

Dimensions

W448mm, H87.5mm, D800mm

Onboard Devices

2x 10G SFP+ - Mellanox ConnectX-4 Lx LAN
1x TPM header
Aspeed AST2500 Video

HDD Drive Bays

6x 2.5" SATA3
2x 2.5" NVMe

Expansion Slots

8x PCIe x16 for GPUs
2x PCIe x16 HL/LP

Power Supply

2200W Redundant, Platinum, 80-Plus

Input Output

1x MLAN
1x VGA
2x 10GbE SPF+ LAN
2x USB3.0

Cooling

8x 80x80x38mm (15000rpm) Fans

Operating Environment

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

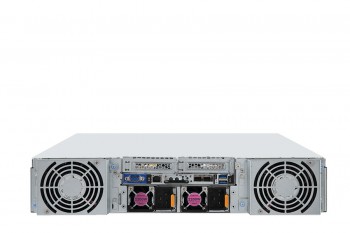

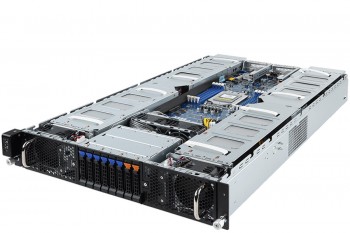

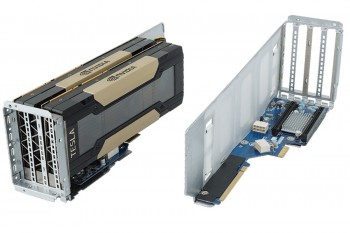

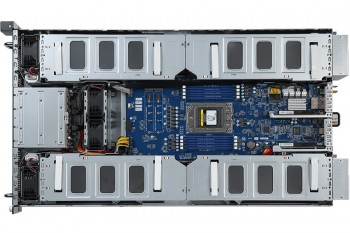

PHOTOS

G292-Z20

MY CONFIGURATION

CPU

AMD ROME EPYC™ 7642 Processor (2.3Ghz,225W)

AMD ROME EPYC™ 7402 Processor (2.8Ghz,180W)

AMD ROME EPYC™ 7262 Processor (3.2Ghz,155W)

AMD ROME EPYC™ 7302 Processor (3.0Ghz,155W)

AMD ROME EPYC™ 7282 Processor (2.8Ghz,120W)

AMD ROME EPYC™ 7272 Processor (2.9Ghz,120W)

AMD ROME EPYC™ 7252 Processor (3.1Ghz,120W)

Added

AMD ROME EPYC™ 7352 Processor (2.3Ghz,155W)

AMD ROME EPYC™ 7452 Processor (2.35Ghz,155W)

AMD ROME EPYC™ 7552 Processor (2.2Ghz,200W)

AMD ROME EPYC™ 7502 Processor (2.5Ghz,180W)

AMD ROME EPYC™ 7542 Processor (2.9Ghz,225W)

AMD ROME EPYC™ 7702 Processor (2.0Ghz,200W)

MEMORY

Samsung 8GB DDR4 2933 ECC RDIMM Memory

Added

Samsung 16GB DDR4 2933 ECC RDIMM Memory

Samsung 32GB DDR4 2933 ECC RDIMM Memory

Samsung 64GB DDR4 2933 ECC RDIMM Memory

Samsung 8GB DDR4 3200 ECC RDIMM Memory

Samsung 64GB DDR4 3200 ECC RDIMM Memory

Samsung 16GB DDR4 3200 ECC RDIMM Memory

Samsung 32GB DDR4 3200 ECC RDIMM Memory

Samsung 64GB DDR4 2933 ECC LRDIMM Memory

Hynix 64GB DDR4 2666 ECC LRDIMM Memory

Samsung 128GB DDR4 3200 ECC LRDIMM Memory

Enterprise-Class HDD/SSD

Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB

Samsung PM893 2.5" SATA 6Gb/s SSD 960GB

Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB

Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB

Intel D3-S4510 2.5" SATA III SSD 480Gb

Samsung PM893 2.5" SATA 6Gb/s SSD 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB

Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB

Samsung PM897 2.5" SATA 6Gb/s SSD 960GB

Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB

Samsung SM883 2.5" SATA III SSD 480GB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB

Samsung PM893 2.5" SATA 6Gb/s SSD 240GB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB

Added

NVMe M.2

Samsung 983 DCT M.2 NVMe SSD 1.92TB

Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB

Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB

Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB

Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB

Samsung 983 DCT M.2 NVMe SSD 960GB

SAMSUNG PM9A3 M.2 Nvme SSD 960GB

Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB

SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB

SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB

Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB

Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB

Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB

*No NVMe M.2 Drives

Added

Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB

Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB

Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB

WD Black SN850 M.2 G4 NVMe SSD 500GB

WD Black SN850 M.2 G4 NVMe SSD 1TB

WD Black SN850 M.2 G4 NVMe SSD 2TB

Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB

NVMe U.2/U.3

Micron 7450 MAX NVMe U.3 (15mm) SSD 3.2TB

Micron 7450 PRO NVMe U.3 (15mm) SSD 7.68TB

Micron 7450 PRO NVMe U.3 (15mm) SSD 1.92TB

Micron 7450 PRO NVMe U.3 (15mm) SSD 15.36TB

Micron 7450 MAX NVMe U.3 (15mm) SSD 1.6TB

Micron 7450 MAX NVMe U.3 (15mm) SSD 800GB

Micron 7450 PRO NVMe U.3 (15mm) SSD 3.84TB

Samsung 983 DCT 2.5" U.2 NVMe SSD 960GB

Micron 7450 MAX NVMe U.3 (15mm) SSD 12.8TB

Micron 7450 MAX NVMe U.3 (15mm) SSD 6.4TB

Samsung PM9A3 2.5" U.2 NVMe SSD 960GB

Samsung PM9A3 2.5" U.2 NVMe SSD 15TB

Samsung PM9A3 2.5" U.2 NVMe SSD 3.84TB

Samsung PM9A3 2.5" U.2 NVMe SSD 7.68TB

Samsung PM9A3 2.5" U.2 NVMe SSD 1.92TB

Micron 7450 PRO NVMe U.3 (15mm) SSD 960GB

Samsung 983 DCT 2.5" U.2 NVMe SSD 1.9TB

*No NVMe U.2/U.3 Drives

Added

RAID CONTROLLER CARD

*NO RAID Controller Card

Added

Broadcom 9500-8i SAS3/SATA/NVMe 8-Port HBA

LSI MegaRAID 9361-8i SAS 12Gb/s 8-Port 2GB Cache Controller with Battery Backup

Broadcom MegaRAID 9560-8i SAS3/SATA/NVMe 8-Port RAID Controller

Areca ARC-1886-8i 8 Ports SAS/SATA/NVMe RAID Controller Card

Areca ARC-1886-8X8i 8+8 Ports SAS/SATA/NVMe RAID Controller Card

Broadcom MegaRAID 9580-8i8e SAS3/SATA/NVMe 8+8-Port RAID Controller

NETWORK CARD

Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)

Broadcom NetXtreme 50G PCIe 3.0 x8 Ethernet Card (1x QSFP28)

Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)

Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)

Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)

Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)

Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)

Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)

Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)

Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)

Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)

Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)

Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)

Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)

Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)

Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)

Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)

Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)

*No Network Card

Added

Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)

Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)

GPU/Coprocessor

NVIDIA RTX 5000 ADA GDDR6 Video Card 32GB

NVIDIA L40 48GB GDDR6 GPU Card

NVIDIA H100 80GB HBM2e GPU Card

Gigabyte GeForce RTX™ 3080 TURBO 10G (rev. 2.0) Graphics Card

ASUS GeForce RTX 3070 TURBO V2 Lite Hash Rite(LHR) Video Card 8GB

NVIDIA L40S 48GB GDDR6 GPU Card

ASUS GeForce RTX 3090 TURBO GDDR6 Video Card 24G

NVIDIA RTX 6000 ADA GDDR6 Video Card 48GB

*No GPU

Added

ASUS GeForce RTX 3080 TURBO GDDR6 Video Card 10G

NVIDIA A100 80GB HBM2e GPU Card

NVIDIA RTX 4000 ADA GDDR6 Video Card 20GB

NVIDIA RTX 4500 ADA GDDR6 Video Card 24GB

GIGABYTE GeForce RTX 3090 TURBO Video Card 24G

OPERATING SYSTEM

*Please contact our sales for more operating system options

Added

Fedora Linux Workstation Edition 64-bit (No Media)

Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)

Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)

Debian Linux (No Media) (32-Bit/64-Bit)

CentOS Enterprise Linux (No Media) (32-Bit/64-bit)

Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)

Microsoft Windows Server 2025 Standard 64-bit-1User

WARRANTY

*1 Year Parts Replacement Warranty

Added

3 Year Parts Replacement Warranty - Server Value $500 to $2000

3 Year Parts Replacement Warranty - Server Value $2001 to $4000

Please Inquire
