G482-Z50

Please Inquire

Gigabyte 4U (12+10) Bays Dual Processor AMD Rackmount GPU Server

Up to 10x PCIe GPGPU cards
Dual AMD EPYC™ 7002 series processor family
8-Channel RDIMM/LRDIMM DDR4 per processor, 32 x DIMMs
2x 10Gb/s BASE-T LAN ports (Intel® X550-AT2)
2x 1Gb/s BASE-T LAN ports (Intel® I350-AM2)
1x dedicated management port
8x 2.5" NVMe, 2 x SATA/SAS 2.5" hot-swappable HDD/SSD bays
12x 3.5" SATA/SAS hot-swappable HDD/SSD bays
10x FHFL Gen3 expansion slots for GPU cards
1x low profile PCIe Gen3 expansion slot
Aspeed® AST2500 remote management controller
3x 80 PLUS Platinum 2200W redundant PSU

Storage configuration notice:
Hot-swap:
12x 3.5" hot-swappable HDD/SSD bays
8x amber HDD trays compatible with NVMe or SATA/SAS devices
2x blue HDD trays compatible with SATA/SAS devices only

SPECIFICATIONS

SKU

G482-Z50

Processor

AMD EPYC™ 7002 series processor family
Dual processors, 7nm
Up to 64-core, 128 threads per processor
TDP up to 225W, cTDP up to 240W

Fully support 280W

NOTE:
If only 1 CPU is installed, some PCIe or memory functions might be unavailable

Compatible with AMD EPYC™ 7001 series processor family

Memory

3‎2x DIMM slots
DDR4 memory supported only
8-Channel memory per processor architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
Memory speed: Up to 3200/ 2933 MHz

Note:
Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC

Chassis

4U Rackmount Chassis

Dimensions

448x 176x 880 (mm)

Onboard Devices

LAN
Rear Side:
2x 10Gb/s BASE-T LAN ports (Intel® X550-AT2)
1x 10/100/1000 management LAN

Front Side:
2x 1Gb/s BASE-T LAN ports (Intel® I350-AM2)

Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

HDD Drive Bays

1‎2x 3.5" hot-swappable HDD/SSD bays
- Compatible with SATA/SAS devices only
10x 2.5" hot-swappable HDD/SSD bays
- 8x amber HDD trays compatible with NVMe or SATA/SAS devices
- 2x blue HDD trays compatible with SATA/SAS devices only

Pre-install with Broadcom SAS3008 storage adapter with IR mode and expander board
Bandwidth: SATAIII 6Gb/s or SAS 12Gb/s per port

Expansion Slots

1‎0x PCIe x16 slots (Gen3 x16 bus) for GPUs
1x PCIe x16 (Gen3 x8 bus) Half-length low-profile slot in front, occupied by CRA3338 HBA
1x PCIe x16 (Gen3 x16 bus) Half-length low-profile slot in rear side#

Non-supported SAS Card with internal cable due to cable routing limitation

- System is validated for population with a uniform GPU model
- Support is not provided for mixed GPU populations

Power Supply

3‎x 2200W redundant PSUs
80 PLUS Platinum

AC Input:
- 100-127V~/ 14A, 47-63Hz
- 200-240V~/ 12.6A, 47-63Hz

DC Output:
- Max 1200W/ 100-127V~
+12.12V/ 95.6A
+12Vsb/ 3.5A
- Max 2200W/ 200-240V
+12.12V/ 178.1A
+12Vsb/ 3.5A

NOTE:
The system power supply requires C19 type power cord

Input Output

Internal I/O
1x TPM header
1x Front panel header
Front I/O
2‎x USB 3.0
1x VGA
2x RJ45
1x MLAN (Reserved, enabled by jumper switch)
1x Power button with LED
1x ID button with LED
1x Reset button
1x NMI button
1x System status LED
1x HDD access LED
Rear I/O
2x RJ45
1x MLAN (Primary port)
Backplane I/O
1‎2x 3.5" ports and 10x 2.5" ports

Cooling

4‎x 40x40x28mm Fans(25,000rpm)

6x 60x60x76mm Fans(21,700rpm)

Operating Environment

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

NOTE:
Please contact Technical Support for more information about optimized GPU operating temperature

Details

System Management
Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
JAVA Based Serial Over LAN
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

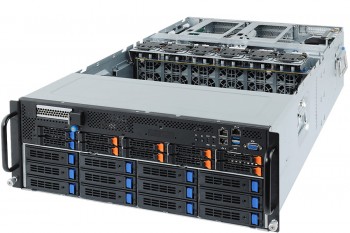

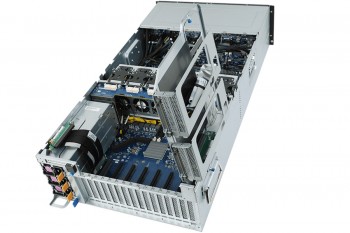

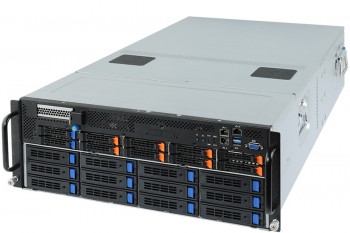

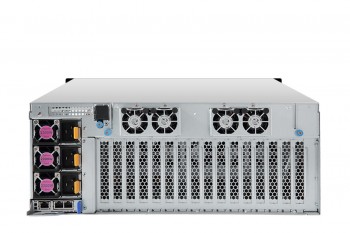

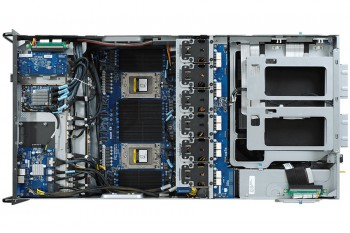

PHOTOS
