G482-Z51

Please Inquire

OVERVIEW

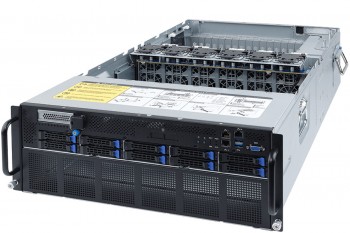

Gigabyte 4U 10Bays Dual Processor AMD Rackmount GPU Server

Up to 8x PCIe Gen4 GPGPU cards
Dual AMD EPYC™ 7002 series processor family
8-Channel RDIMM/LRDIMM DDR4 per processor, 32 x DIMMs
2x 10Gb/s BASE-T LAN ports (Intel® X550-AT2)
2x 1Gb/s BASE-T LAN ports (Intel® I350-AM2)
1x dedicated management port
10x SATA 2.5" hot-swappable HDD/SSD bays
8 x FHFL Gen4 expansion slots for GPU cards
Aspeed® AST2500 remote management controller
3x 80 PLUS Platinum 2200W redundant PSU

Storage configuration notice:
Hot-swap:
10x 2.5" SATA hot-swappable bays

SPECIFICATIONS

SKU

G482-Z51

Processor

AMD EPYC™ 7002 series processor family
Dual processors, 7nm
Up to 64-core, 128 threads per processor
TDP up to 225W, cTDP up to 240W

Fully support 280W

NOTE:
If only 1 CPU is installed, some PCIe or memory functions might be unavailable

Compatible with AMD EPYC™ 7001 series processor family

Memory

3‎2 x DIMM slots
DDR4 memory supported only
8-Channel memory per processor architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
Memory speed: Up to 3200/ 2933 MHz

Note:
Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC

Chassis

4U Rackmount Chassis

Dimensions

448x 176x 880 (mm)

Onboard Devices

LAN
Rear Side:
2 x 10Gb/s BASE-T LAN ports (Intel® X550-AT2)
1 x 10/100/1000 management LAN

Front Side:
2 x 1Gb/s BASE-T LAN ports (Intel® I350-AM2)

Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

HDD Drive Bays

1‎0x 2.5" SATA hot-swappable HDD/SSD bays

NOTE:

SATA devices supported only

Expansion Slots

8‎x PCIe x16 slots (Gen4 x16 bus) for GPUs

- System is validated for population with a uniform GPU model
- Support is not provided for mixed GPU populations
- Limited to PCIe Gen3 when using AMD Naples

Power Supply

3‎x 2200W redundant PSUs
80 PLUS Platinum

AC Input:
- 100-127V~/ 14A, 47-63Hz
- 200-240V~/ 12.6A, 47-63Hz

DC Output:
- Max 1200W/ 100-127V~
+12.12V/ 95.6A
+12Vsb/ 3.5A
- Max 2200W/ 200-240V
+12.12V/ 178.1A
+12Vsb/ 3.5A

NOTE:
The system power supply requires C19 type power cord

Input Output

Internal I/O
1‎x TPM header
1x Front panel header
Front I/O
2 x USB 3.0
1x VGA
2x RJ45
1x MLAN (Reserved, enabled by jumper switch)
1x Power button with LED
1x ID button with LED
1x Reset button
1x NMI button
1x System status LED
1x HDD access LED
Rear I/O
2x RJ45
1x MLAN (Primary port)
Backplane I/O
1‎0x 2.5" ports
Supports SATA 6Gb/s

Cooling

6‎x 60x60x76mm Fans(21,700rpm)

Operating Environment

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

NOTE:

Please contact Technical Support for more information about optimized GPU operating temperature

Details

System Management
Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
JAVA Based Serial Over LAN
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

PHOTOS

G482-Z51

MY CONFIGURATION

CPU

AMD ROME EPYC™ 7452 Processor (2.35Ghz,155W)

AMD ROME EPYC™ 7702P Processor (2.0Ghz,200W)

AMD ROME EPYC™ 7552 Processor (2.2Ghz,200W)

AMD ROME EPYC™ 7542 Processor (2.9Ghz,225W)

AMD ROME EPYC™ 7642 Processor (2.3Ghz,225W)

AMD ROME EPYC™ 7502P Processor (2.5Ghz,180W)

AMD ROME EPYC™ 7702 Processor (2.0Ghz,200W)

AMD ROME EPYC™ 7502 Processor (2.5Ghz,180W)

AMD ROME EPYC™ 7282 Processor (2.8Ghz,120W)

AMD ROME EPYC™ 7402P Processor (2.8Ghz,180W)

AMD ROME EPYC™ 7402 Processor (2.8Ghz,180W)

AMD ROME EPYC™ 7352 Processor (2.3Ghz,155W)

AMD ROME EPYC™ 7302P Processor (3.0Ghz,155W)

AMD ROME EPYC™ 7302 Processor (3.0Ghz,155W)

AMD ROME EPYC™ 7252 Processor (3.1Ghz,120W)

Added

AMD ROME EPYC™ 7262 Processor (3.2Ghz,155W)

AMD ROME EPYC™ 7272 Processor (2.9Ghz,120W)

MEMORY

Samsung 16GB DDR4 2933 ECC RDIMM Memory

Samsung 8GB DDR4 2933 ECC RDIMM Memory

Added

Samsung 32GB DDR4 2933 ECC RDIMM Memory

Samsung 64GB DDR4 2933 ECC RDIMM Memory

Samsung 8GB DDR4 3200 ECC RDIMM Memory

Samsung 16GB DDR4 3200 ECC RDIMM Memory

Samsung 32GB DDR4 3200 ECC RDIMM Memory

Samsung 64GB DDR4 3200 ECC RDIMM Memory

Samsung 128GB DDR4 3200 ECC LRDIMM Memory

Hynix 64GB DDR4 2666 ECC LRDIMM Memory

Samsung 64GB DDR4 2933 ECC LRDIMM Memory

Enterprise-Class HDD/SSD

Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB

Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB

Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB

Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB

Samsung SM883 2.5" SATA III SSD 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 480GB

Intel D3-S4510 2.5" SATA III SSD 480Gb

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB

Samsung PM897 2.5" SATA 6Gb/s SSD 960GB

Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB

Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB

Added

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB

Samsung PM893 2.5" SATA 6Gb/s SSD 240GB

Samsung PM893 2.5" SATA 6Gb/s SSD 960GB

NETWORK CARD

Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)

Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)

Broadcom NetXtreme 50G PCIe 3.0 x8 Ethernet Card (1x QSFP28)

Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)

Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)

Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)

Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)

Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)

Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)

Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)

*No Network Card

Added

Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)

Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)

Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)

Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)

Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)

Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)

Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)

Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)

Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)

Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)

GPU/Coprocessor

NVIDIA L40S 48GB GDDR6 GPU Card

NVIDIA RTX 4000 ADA GDDR6 Video Card 20GB

GIGABYTE GeForce RTX 3090 TURBO Video Card 24G

NVIDIA A100 80GB HBM2e GPU Card

ASUS GeForce RTX 3080 TURBO GDDR6 Video Card 10G

NVIDIA RTX 4500 ADA GDDR6 Video Card 24GB

ASUS GeForce RTX 3090 TURBO GDDR6 Video Card 24G

NVIDIA RTX 5000 ADA GDDR6 Video Card 32GB

NVIDIA RTX 6000 ADA GDDR6 Video Card 48GB

*No GPU

Added

ASUS GeForce RTX 3070 TURBO V2 Lite Hash Rite(LHR) Video Card 8GB

NVIDIA H100 80GB HBM2e GPU Card

NVIDIA L40 48GB GDDR6 GPU Card

Gigabyte GeForce RTX™ 3080 TURBO 10G (rev. 2.0) Graphics Card

OPERATING SYSTEM

*Please contact our sales for more operating system options

Added

Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)

Fedora Linux Workstation Edition 64-bit (No Media)

Debian Linux (No Media) (32-Bit/64-Bit)

CentOS Enterprise Linux (No Media) (32-Bit/64-bit)

Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)

Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)

Microsoft Windows Server 2025 Standard 64-bit-1User

WARRANTY

*1 Year Parts Replacement Warranty

Added

3 Year Parts Replacement Warranty - Server Value $500 to $2000

3 Year Parts Replacement Warranty - Server Value $2001 to $4000

3 Year Parts Replacement Warranty - Server Value $4001 to $7000

3 Year Parts Replacement Warranty - Server Value $7001 to $10000

3 Year Parts Replacement Warranty - Server Value Over $10000

Please Inquire
	ADD TO QUOTE
