ESC4000A-E10-WOCPU068Z

Please Inquire

ASUS 2U 8Bays Dual 3rd Gen MILAN Processor Rackmount Server

Powered by AMD EPYC™ 7002/7003 processor
Up to 11 PCIe® 4.0 slots
GPU-optimized design
Supports NVIDIA® NVLink
A choice of PCIe Gen 4.0, OCP 3.0, NVMe and M.2
Redundant 2200W Platinum power supplies
ASUS thermal control technology
ASUS performance tuning technology
Complete IT infrastructure remote management

Storage configuration notice:
8x SATA3 6Gb/s ports + 1 x M.2 connector /or
6x SATA3 6Gb/s ports + 2 x U.2 NVMe drives + 1x M.2 connector

SPECIFICATIONS

SKU	ESC4000A-E10-WOCPU068Z

Processor

1 x Socket SP3 (LGA 4094)
AMD EPYC™ 7002 Series

Memory

Total Slots : 8 (8-channel)

Capacity : Maximum up to 2048GB RDIMM

Memory Type :
DDR4 3200 RDIMM
DDR4 3200 LRDIMM
DDR4 3200 LR-DIMM 3DS

Memory Size :
256GB, 128GB, 64GB, 32GB, 16GB

Chassis

2U Rackmount Chassis

Dimensions

800mm x 440mm x 88.9mm (2U)
31.50" x 17.22" x 3.5"

Front Panel

1 x Q-code/port-80 LED
4 x USB 3.2 Gen1 ports

Onboard Devices

Networking
1 x Dual Port Intel I350-AM2 Gigabit LAN controller + 1 x Mgmt LAN

Graphic
Aspeed AST2500 with 64MB VRAM

HDD Drive Bays

8 x 3.5" or 2.5" Hot-swap Storage Bays

(Backplane Supports 4 x SATA/SAS + 4 x SATA/SAS/NVMe Devices)

*default setting supports 2 x NVMe devices.

Note
*Users need to remove Slimline cables from the PCIe riser board, and re-connect the cables to the backplane for total 4 x NVMe devices.

Expansion Slots

Rear:
4 x PCIe x16 slots (Gen4 x16 link, FH,FL) for dual-slot GPU cards or
8 x PCIe x16 slots (Gen4 x8 link, FH,FL) for single-slot GPU cards

2 x PCIe x16 slots (Gen4 x16 link, LP,HL)

Front:
SKU-1 (default)
1 x PCIe x8 slot (Gen4 x8 link, LP,HL)

SKU-2 (by request)

1 x PCIe x8 slot (Gen4 x8 link, LP,HL) or
1 x OCP3.0 slot (Gen4 x8 link) by switching cables

SKU-3 (by request)
1 x PCIe x8 slot (Gen4 x8 link, LP,HL) or
2 x M.2 socket (Gen4 x4 link, up to 22110 module) by switching cables

Power Supply

1+1 Redundant 2200W 80 PLUS Platinum Power Supply

Rating: 100-127Vac/200-240Vac,14A/12.6A,47-63Hz

Input Output

Front I/O Ports
1 x Q-code/port-80 LED
4 x USB 3.2 Gen1 ports

Rear I/O Ports
2 x USB 3.2 Gen1 port
1 x VGA port
1 x Management port (RJ45)
2 x Gigabit LAN ports (RJ45)

Operating Environment

Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)

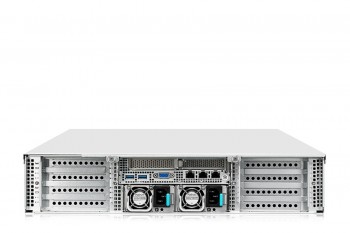

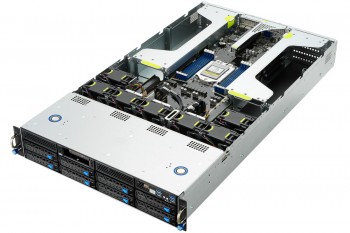

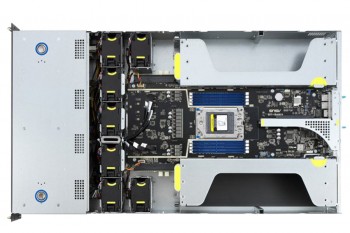

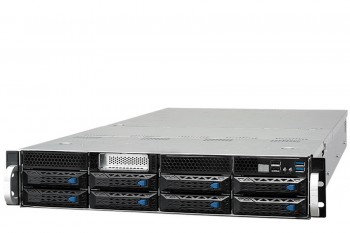

PHOTOS

ESC4000A-E10-WOCPU068Z

MY CONFIGURATION

CPU

AMD EPYC 3rd Gen MILAN 7443 24 Core 2.85GHz

AMD EPYC 3rd Gen MILAN 7643 48 Core 2.30GHz

AMD EPYC 3rd Gen MILAN 7763 64 Core 2.45GHz

AMD EPYC 3rd Gen MILAN 7713P 64 Core 2.00GHz

AMD EPYC 3rd Gen MILAN 75F3 32 Core 2.95GHz

AMD EPYC 3rd Gen MILAN 74F3 24 Core 3.20GHz

AMD EPYC 3rd Gen MILAN 7543P 32 Core 2.80GHz

AMD EPYC 3rd Gen MILAN 7543 32 Core 2.80GHz

AMD EPYC 3rd Gen MILAN 7513 32 Core 2.60GHz

AMD EPYC 3rd Gen MILAN 7663 56 Core 2.00GHz

AMD EPYC 3rd Gen MILAN 7413 24 Core 2.65GHz

AMD EPYC 3rd Gen MILAN 73F3 16 Core 3.50GHz

AMD EPYC 3rd Gen MILAN 7343 16 Core 3.20GHz

AMD EPYC 3rd Gen MILAN 7453 28 Core 2.75GHz

AMD EPYC 3rd Gen MILAN 7443P 24 Core 2.85GHz

AMD EPYC 3rd Gen MILAN 7313P 16 Core 3.00GHz

AMD EPYC 3rd Gen MILAN 72F3 8 Core 3.70GHz

AMD EPYC 3rd Gen MILAN 7313 16 Core 3.00GHz

Added

AMD ROME EPYC™ 7282 Processor (2.8Ghz,120W)

AMD ROME EPYC™ 7542 Processor (2.9Ghz,225W)

AMD ROME EPYC™ 7502P Processor (2.5Ghz,180W)

AMD ROME EPYC™ 7552 Processor (2.2Ghz,200W)

AMD ROME EPYC™ 7642 Processor (2.3Ghz,225W)

AMD ROME EPYC™ 7702 Processor (2.0Ghz,200W)

AMD ROME EPYC™ 7702P Processor (2.0Ghz,200W)

AMD ROME EPYC™ 7252 Processor (3.1Ghz,120W)

AMD ROME EPYC™ 7302 Processor (3.0Ghz,155W)

AMD ROME EPYC™ 7502 Processor (2.5Ghz,180W)

AMD ROME EPYC™ 7262 Processor (3.2Ghz,155W)

AMD ROME EPYC™ 7302P Processor (3.0Ghz,155W)

AMD ROME EPYC™ 7272 Processor (2.9Ghz,120W)

AMD ROME EPYC™ 7352 Processor (2.3Ghz,155W)

AMD ROME EPYC™ 7402 Processor (2.8Ghz,180W)

AMD ROME EPYC™ 7402P Processor (2.8Ghz,180W)

AMD ROME EPYC™ 7452 Processor (2.35Ghz,155W)

AMD EPYC 3rd Gen MILAN 7713 64 Core 2.00GHz

MEMORY

Samsung 64GB DDR4 3200 ECC RDIMM Memory

Samsung 8GB DDR4 3200 ECC RDIMM Memory

Samsung 16GB DDR4 3200 ECC RDIMM Memory

Samsung 32GB DDR4 3200 ECC RDIMM Memory

Samsung 8GB DDR4 2933 ECC RDIMM Memory

Added

Samsung 64GB DDR4 2933 ECC RDIMM Memory

Samsung 32GB DDR4 2933 ECC RDIMM Memory

Samsung 16GB DDR4 2933 ECC RDIMM Memory

Samsung 64GB DDR4 2933 ECC LRDIMM Memory

Samsung 128GB DDR4 3200 ECC LRDIMM Memory

Hynix 64GB DDR4 2666 ECC LRDIMM Memory

Enterprise-Class HDD/SSD

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 16TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 12TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 14TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 8TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 16TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 18TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 18TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 10TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 4TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 20TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 22TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 20TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB

Added

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 6TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 14TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 12TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 8TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 10TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 2TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 4TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 6TB

NVMe M.2

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB

Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB

WD Black SN850 M.2 G4 NVMe SSD 2TB

Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB

WD Black SN850 M.2 G4 NVMe SSD 1TB

WD Black SN850 M.2 G4 NVMe SSD 500GB

Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB

SAMSUNG PM9A3 M.2 Nvme SSD 960GB

SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB

SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB

Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB

Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB

*No NVMe M.2 Drives

Added

Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB

Samsung 983 DCT M.2 NVMe SSD 1.92TB

Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB

Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB

Samsung 983 DCT M.2 NVMe SSD 960GB

Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB

Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB

Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB

Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB

NVMe U.2/U.3

Micron 7450 MAX NVMe U.3 (15mm) SSD 3.2TB

Micron 7450 PRO NVMe U.3 (15mm) SSD 960GB

Micron 7450 PRO NVMe U.3 (15mm) SSD 15.36TB

Micron 7450 PRO NVMe U.3 (15mm) SSD 7.68TB

Micron 7450 MAX NVMe U.3 (15mm) SSD 800GB

Micron 7450 PRO NVMe U.3 (15mm) SSD 1.92TB

Micron 7450 PRO NVMe U.3 (15mm) SSD 3.84TB

Micron 7450 MAX NVMe U.3 (15mm) SSD 1.6TB

Samsung 983 DCT 2.5" U.2 NVMe SSD 960GB

Micron 7450 MAX NVMe U.3 (15mm) SSD 6.4TB

Micron 7450 MAX NVMe U.3 (15mm) SSD 12.8TB

Samsung PM9A3 2.5" U.2 NVMe SSD 960GB

Samsung PM9A3 2.5" U.2 NVMe SSD 15TB

Samsung PM9A3 2.5" U.2 NVMe SSD 3.84TB

Samsung PM9A3 2.5" U.2 NVMe SSD 7.68TB

Samsung PM9A3 2.5" U.2 NVMe SSD 1.92TB

Samsung 983 DCT 2.5" U.2 NVMe SSD 1.9TB

*No NVMe U.2/U.3 Drives

Added

RAID CONTROLLER CARD

*NO RAID Controller Card

Added

Broadcom 9500-8i SAS3/SATA/NVMe 8-Port HBA

LSI MegaRAID 9361-8i SAS 12Gb/s 8-Port 2GB Cache Controller with Battery Backup

Broadcom MegaRAID 9560-8i SAS3/SATA/NVMe 8-Port RAID Controller

Areca ARC-1886-8i 8 Ports SAS/SATA/NVMe RAID Controller Card

Areca ARC-1886-8X8i 8+8 Ports SAS/SATA/NVMe RAID Controller Card

Broadcom MegaRAID 9580-8i8e SAS3/SATA/NVMe 8+8-Port RAID Controller

NETWORK CARD

Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)

Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)

Broadcom NetXtreme 50G PCIe 3.0 x8 Ethernet Card (1x QSFP28)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)

Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)

Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)

Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)

Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)

Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)

Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)

Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)

*No Network Card

Added

Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)

Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)

Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)

Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)

Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)

Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)

Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)

Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)

Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)

Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)

GPU/Coprocessor

ASUS GeForce RTX 3090 TURBO GDDR6 Video Card 24G

Gigabyte GeForce RTX™ 3080 TURBO 10G (rev. 2.0) Graphics Card

NVIDIA H100 80GB HBM2e GPU Card

NVIDIA L40 48GB GDDR6 GPU Card

ASUS GeForce RTX 3070 TURBO V2 Lite Hash Rite(LHR) Video Card 8GB

ASUS GeForce RTX 3080 TURBO GDDR6 Video Card 10G

NVIDIA L40S 48GB GDDR6 GPU Card

NVIDIA A100 80GB HBM2e GPU Card

*No GPU

Added

NVIDIA RTX 4500 ADA GDDR6 Video Card 24GB

NVIDIA RTX 5000 ADA GDDR6 Video Card 32GB

GIGABYTE GeForce RTX 3090 TURBO Video Card 24G

NVIDIA RTX 4000 ADA GDDR6 Video Card 20GB

NVIDIA RTX 6000 ADA GDDR6 Video Card 48GB

OPERATING SYSTEM

*Please contact our sales for more operating system options

Added

CentOS Enterprise Linux (No Media) (32-Bit/64-bit)

Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)

Fedora Linux Workstation Edition 64-bit (No Media)

Debian Linux (No Media) (32-Bit/64-Bit)

Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)

Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)

Microsoft Windows Server 2025 Standard 64-bit-1User

Power Cord

220V to 110V, C19 to NEMA 5-15P, Black 10ft Power Cord

Added

220V to 220V, C19 to NEMA L6-20, Black 10ft Power Cord

WARRANTY

*1 Year Parts Replacement Warranty

Added

3 Year Parts Replacement Warranty - Server Value $500 to $2000

3 Year Parts Replacement Warranty - Server Value $2001 to $4000

3 Year Parts Replacement Warranty - Server Value $4001 to $7000

3 Year Parts Replacement Warranty - Server Value $7001 to $10000

3 Year Parts Replacement Warranty - Server Value Over $10000

Please Inquire
	ADD TO QUOTE

3622

2782.0000
