RM13304-X12DPl-i6

Please Inquire

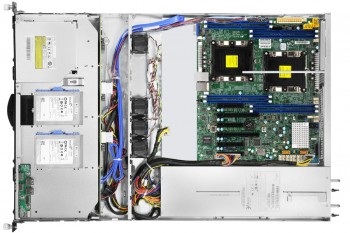

Chenbro 1U 4Bay Dual Processor Rackmount Server

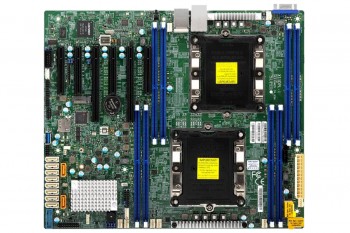

Supermicro Motherboard X12DPl-i6
3rd Gen Intel® Xeon® Scalable processors, Dual Socket LGA-4189 (Socket P+)
8x DIMM Slots,up to 2TB ECC RDIMM
Intel® C621A Chipset
4x 3.5" Hot-swap HDD bays
650W Redundant Power supply

Storage configuration notice:
Hot-swap:
4x Hot-swap 3.5" SAS/SATA drive bays
M.2:
Supports 1x M.2 form factor 2280

SKU	RM13304-X12DPl-i6

Processor

3rd Gen Intel® Xeon® Scalable processors
Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 185W TDP, Dual UPI up to 11.2 GT/s

Memory

Memory Capacity:
8 DIMM slots
Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 2TB ECC RDIMM, DDR4-3200MHz
Memory Type:
3200/2933/2666MHz ECC 3DS DDR4 LRDIMM, RDIMM
DIMM Sizes:
256GB
LRDIMM: 256GB
RDIMM: 256GB
Memory Voltage:
1.2V
Error Detection:
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

Chassis

1U Rackmount Chassis

Dimensions

D x W x H
657.5 x 438.5 x 43.5 (mm)
25.89”x 17.27” x 1.72”

Front Panel

1x Power On/Off
1x UID
2x USB3.0

Bios	BIOS Type: AMI UEFI

Onboard Devices

Chipset:
Intel® C621A
SATA:
Intel® C621A controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI:
ASPEED AST2600 BMC
Graphics:
ASPEED AST2600 BMC
Network Controllers:
Dual LAN with Intel® i210 Gigabit Ethernet Controller

HDD Drive Bays

4x 3.5" Hot-swap HDD bays

Expansion Slots

1x Full Height & Half Length

Power Supply

1x PSU, 650W, 1+1 Redundant, w/Bracket

Input Output

LAN:
2x RJ45 Gigabit Ethernet LAN ports
USB:
5x USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
Video Output:
1x VGA port(s)
Serial Port:
1x COM Port(s) (1 header)
DOM:
2x SATA DOM (Disk on Module) power connector support
TPM:
1x TPM Header

Cooling

4x 40mm Fan, PWM, T28, Ball Bearing, L500mm

Operating Environment

Operating Temperature Range:
10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range:
-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range:
8% - 90% (non-condensing)
Non Operating Relative Humidity Range:
5% - 95% (non-condensing)

PHOTOS

RM13304-X12DPl-i6

MY CONFIGURATION

CPU

Intel® Xeon® Scalable 3rd Gen Gold Processor 6336Y (2.40 GHz 185W)

Intel® Xeon® Scalable 3rd Gen Platinum Processor 8353H (2.50 GHz 150W)

Intel® Xeon® Scalable 3rd Gen Platinum Processor 8352S (2.30 GHz 185W)

Intel® Xeon® Scalable 3rd Gen Platinum Processor 8352M (2.30 GHz 185W)

Intel® Xeon® Scalable 3rd Gen Silver Processor 4314 (2.40 GHz 135W)

Intel® Xeon® Scalable 3rd Gen Silver Processor 4316 (2.30 GHz 150W)

Intel® Xeon® Scalable 3rd Gen Silver Processor 4310 (2.10 GHz 120W)

Added

Intel® Xeon® Scalable 3rd Gen Gold Processor 6348H (2.30 GHz 165W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 6338T (2.10 GHz 165W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 6338N (2.20 GHz 185W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 6334 (3.60 Ghz 165W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 5318Y (2.10 Ghz 165W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 6330H (2.00 Ghz 150W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 6330N (2.20 Ghz 165W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 5320 (2.20 Ghz 185W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 5320T (2.30 Ghz 150W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 5320H (2.40 Ghz 150W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 5317 (3.00 Ghz 150W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 5318S (2.10 Ghz 165W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 5318H (2.50 Ghz 150W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 5318N (2.10 Ghz 150W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 5315Y (3.20 Ghz 140W)

MEMORY

Samsung 8GB DDR4 2933 ECC RDIMM Memory

Samsung 32GB DDR4 2933 ECC RDIMM Memory

Samsung 16GB DDR4 2933 ECC RDIMM Memory

Samsung 64GB DDR4 2933 ECC RDIMM Memory

Samsung 16GB DDR4 3200 ECC RDIMM Memory

Samsung 8GB DDR4 3200 ECC RDIMM Memory

Added

Samsung 64GB DDR4 3200 ECC RDIMM Memory

Samsung 32GB DDR4 3200 ECC RDIMM Memory

Hynix 64GB DDR4 2666 ECC LRDIMM Memory

Samsung 128GB DDR4 3200 ECC LRDIMM Memory

Samsung 64GB DDR4 2933 ECC LRDIMM Memory

Enterprise-Class HDD/SSD

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB

Added

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB

NVMe M.2

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB

Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB

Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB

SAMSUNG PM9A3 M.2 Nvme SSD 960GB

Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB

SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB

SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB

Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB

WD Black SN850 M.2 G4 NVMe SSD 2TB

WD Black SN850 M.2 G4 NVMe SSD 1TB

Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB

Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB

Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB

WD Black SN850 M.2 G4 NVMe SSD 500GB

Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB

Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB

Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB

Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB

Samsung 983 DCT M.2 NVMe SSD 1.92TB

*No NVMe M.2 Drives

Added

Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB

Samsung 983 DCT M.2 NVMe SSD 960GB

NETWORK CARD

Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)

Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)

Broadcom NetXtreme 50G PCIe 3.0 x8 Ethernet Card (1x QSFP28)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)

Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)

Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)

Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)

Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)

Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)

Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)

Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)

*No Network Card

Added

Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)

Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)

Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)

Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)

Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)

Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)

Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)

Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)

Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)

Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)

OPERATING SYSTEM

*Please contact our sales for more operating system options

Added

Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)

Fedora Linux Workstation Edition 64-bit (No Media)

Debian Linux (No Media) (32-Bit/64-Bit)

Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)

Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)

CentOS Enterprise Linux (No Media) (32-Bit/64-bit)

-Microsoft Windows 11 Professional 32/64-bit

Microsoft Windows Server 2025 Standard 64-bit-1User

WARRANTY

*1 Year Parts Replacement Warranty

Added

3 Year Parts Replacement Warranty - Server Value $500 to $2000

3 Year Parts Replacement Warranty - Server Value $2001 to $4000

3 Year Parts Replacement Warranty - Server Value $4001 to $7000

3 Year Parts Replacement Warranty - Server Value $7001 to $10000

3 Year Parts Replacement Warranty - Server Value Over $10000

Please Inquire
	ADD TO QUOTE
