ESC4000-E10-WOCPU009Z

Please Inquire

OVERVIEW

ASUS 2U 8Bays Dual Processor Rackmount Server

Powered by dual-socket 3rd Gen Intel Scalable processors, with 16 DIMMs and support for a maximum TDP of up to 205 watts per socket
GPU-optimized design allows four dual-slot GPUs for AI workloads
Up to eight all-flash NVMe and eight SATA/SAS drives on front panel to enable extensive storage and high-throughput performance
Up to eleven PCIe® 4.0 slots to enable higher bandwidth and improved data-transfer rates
Flexible air- solution to achieve lower power-usage effectiveness (PUE) and optimized TCO for data centers
Onboard ASUS ASMB10-iKVM for out-of-band management with ASPEED AST2600 controller
Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
High power efficiency with redundant 2200W or 1600W 80 Plus® Platinum power supplies
Two hot-plug, hot-swap fans design for fully redundancy protection and thermal efficiency

Storage configuration notice:
Hot-swap:
8x Hot-swap 3.5" drive bays

M.2 Drive Bay

SPECIFICATIONS

SKU	ESC4000-E10-WOCPU009Z

Processor

2 x Socket P+ (LGA 4189)

3rd Gen Intel® Xeon® Scalable Processors Family(205W)

Memory

Total Slots : 16 (8-channel per CPU, 8 DIMM per CPU)
Capacity : Maximum up to 2048GB RDIMM
Memory Type :
DDR4 3200 RDIMM
DDR4 3200 LRDIMM
DDR4 3200 LR-DIMM 3DS
Memory Size :
128GB, 64GB, 32GB, 16GB

Chassis

2U Rackmount Chassis

Dimensions

800mm x 440mm x 88mm
31.50" x 17.22" x 3.5"

Front Panel

Front Switch/LED:
1x Power Button/LED
1x Location Button/LED
1x Message LED
1x HDD Access LED
2x LAN LED
1x Q-code/port-80 LED

Rear Switch/LED:
1x Power Button/LED
1x Location LED
1x Message LED
1x HDD Access LED

Onboard Devices

Networking:
1x Dual Port Intel I350-AM2 Gigabit LAN controller + 1 x Mgmt LAN

HDD Drive Bays

8x 3.5" or 2.5" Hot-swap Storage Bays
(SKU-1 & SKU-2 Backplane Supports 6x SATA/SAS + 2x SATA/SAS/NVMe Devices)
(SKU-3 Backplane Supports 8x SATA/SAS/NVMe Devices)

1x M.2 socket (Gen3 x4 link or SATA mode, up to 2280 on-motherboard)

Expansion Slots

Rear:
4x PCIe x16 slots (Gen4 x16 link, FH,FL) for dual-slot GPU cards or
8x PCIe x16 slots (Gen4 x8 link, FH,FL) for single-slot GPU cards
2x PCIe x16 slots (Gen4 x16 link, LP,HL)

Front:
SKU-1 (default)
1x PCIe x8 slot (Gen4 x8 link, LP,HL)
4x M.2 sockets (Gen4 x4 link, up to 22110 module)

SKU-2 (by request)
1x PCIe x8 slot (Gen4 x8 link, LP,HL)
1x OCP3.0 slot (Gen4 x16 link)

SKU-3 (by request)
N/A

Power Supply

1+1 Redundant 2200W 80 PLUS Platinum Power Supply
Rating: 100-127Vac/200-240Vac,14A/12.6A,47-63Hz

Input Output

Front I/O Ports:
4x USB 3.2 Gen1 ports

Rear I/O Ports:
2x USB 3.2 Gen1 port
1x VGA port
1x Management port (RJ45)
2x Gigabit LAN ports (RJ45)

Operating Environment

Operation temperature: 10℃ ~ 35℃ /
Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)

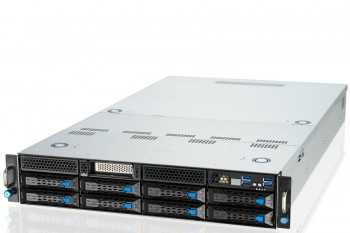

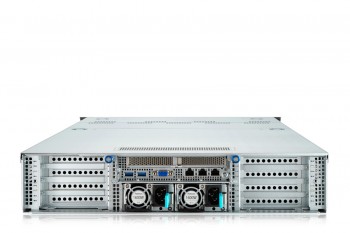

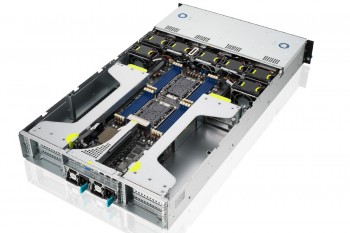

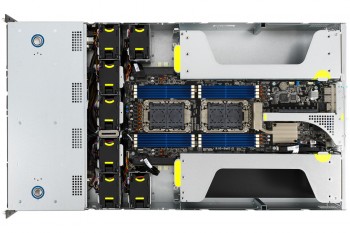

PHOTOS

ESC4000-E10-WOCPU009Z

MY CONFIGURATION

CPU

Intel® Xeon® Scalable 3rd Gen Platinum Processor 8356H (3.90 GHz 190W)

Intel® Xeon® Scalable 3rd Gen Silver Processor 4310 (2.10 GHz 120W)

Added

Intel® Xeon® Scalable 3rd Gen Silver Processor 4316 (2.30 GHz 150W)

Intel® Xeon® Scalable 3rd Gen Platinum Processor 8352V (2.10 GHz 195W)

Intel® Xeon® Scalable 3rd Gen Silver Processor 4314 (2.40 GHz 135W)

Intel® Xeon® Scalable 3rd Gen Platinum Processor 8351N (2.40 GHz 225W)

Intel® Xeon® Scalable 3rd Gen Platinum Processor 8352M (2.30 GHz 185W)

Intel® Xeon® Scalable 3rd Gen Platinum Processor 8352S (2.30 GHz 185W)

Intel® Xeon® Scalable 3rd Gen Platinum Processor 8352Y (2.20 GHz 205W)

Intel® Xeon® Scalable 3rd Gen Platinum Processor 8353H (2.50 GHz 150W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 6348H (2.30 GHz 165W)

Intel® Xeon® Scalable 3rd Gen Platinum Processor 8354H (3.10 GHz 205W)

Intel® Xeon® Scalable 3rd Gen Platinum Processor 8358P (2.60 GHz 240W)

Intel® Xeon® Scalable 3rd Gen Platinum Processor 8358 (2.60 GHz 250W)

Intel® Xeon® Scalable 3rd Gen Platinum Processor 8360HL (3.00 GHz 225W)

Intel® Xeon® Scalable 3rd Gen Platinum Processor 8360Y (2.40 GHz 250W)

Intel® Xeon® Scalable 3rd Gen Platinum Processor 8362 (2.80 GHz 265W)

Intel® Xeon® Scalable 3rd Gen Platinum Processor 8368 (2.40 GHz 270W)

Intel® Xeon® Scalable 3rd Gen Platinum Processor 8360H (3.00 GHz 225W)

Intel® Xeon® Scalable 3rd Gen Platinum Processor 8368Q (2.60 GHz 270W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 6330H (2.00 Ghz 150W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 5315Y (3.20 Ghz 140W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 5318N (2.10 Ghz 150W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 5318Y (2.10 Ghz 165W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 5318H (2.50 Ghz 150W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 5318S (2.10 Ghz 165W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 6330 (2.00 Ghz 205W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 5320H (2.40 Ghz 150W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 5320 (2.20 Ghz 185W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 5320T (2.30 Ghz 150W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 5317 (3.00 Ghz 150W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 6336Y (2.40 GHz 185W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 6338N (2.20 GHz 185W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 6330N (2.20 Ghz 165W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 6334 (3.60 Ghz 165W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 6338 (2.00 GHz 205W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 6348 (2.60 GHz 235W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 6338T (2.10 GHz 165W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 6346 (3.10 GHz 205W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 6342 (2.80 GHz 230W)

MEMORY

Samsung 32GB DDR4 2933 ECC RDIMM Memory

Samsung 8GB DDR4 2933 ECC RDIMM Memory

Samsung 64GB DDR4 2933 ECC RDIMM Memory

Samsung 16GB DDR4 2933 ECC RDIMM Memory

Samsung 64GB DDR4 3200 ECC RDIMM Memory

Samsung 8GB DDR4 3200 ECC RDIMM Memory

Added

Samsung 32GB DDR4 3200 ECC RDIMM Memory

Samsung 16GB DDR4 3200 ECC RDIMM Memory

Hynix 64GB DDR4 2666 ECC LRDIMM Memory

Samsung 128GB DDR4 3200 ECC LRDIMM Memory

Samsung 64GB DDR4 2933 ECC LRDIMM Memory

Enterprise-Class HDD/SSD

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 4TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 6TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 14TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 10TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 12TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 18TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 16TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 8TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 16TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 20TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 18TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 22TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 20TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 6TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB

Added

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 4TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 10TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 14TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 8TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 12TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 2TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB

NVMe M.2

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB

Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB

Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB

SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB

SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB

SAMSUNG PM9A3 M.2 Nvme SSD 960GB

Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB

WD Black SN850 M.2 G4 NVMe SSD 2TB

Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB

WD Black SN850 M.2 G4 NVMe SSD 1TB

Samsung 983 DCT M.2 NVMe SSD 1.92TB

WD Black SN850 M.2 G4 NVMe SSD 500GB

Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB

Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB

Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB

Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB

Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB

Samsung 983 DCT M.2 NVMe SSD 960GB

Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB

Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB

*No NVMe M.2 Drives

Added

Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB

OS DRIVE

*No OS Drive

Added

Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB

Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB

Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB

Samsung PM893 2.5" SATA 6Gb/s SSD 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 240GB

Samsung PM893 2.5" SATA 6Gb/s SSD 960GB

RAID CONTROLLER CARD

*NO RAID Controller Card

Added

Broadcom 9500-8i------- SAS3/SATA/NVMe 8-Port HBA

Broadcom 9500-8i SAS3/SATA/NVMe 8-Port HBA

Broadcom MegaRAID 9560-8i SAS3/SATA/NVMe 8-Port RAID Controller

Broadcom MegaRAID 9560-8i------------ SAS3/SATA/NVMe 8-Port RAID Controller

Areca ARC-1886-8i 8 Ports SAS/SATA/NVMe RAID Controller Card

Areca ARC-1886-8X8i 8+8 Ports SAS/SATA/NVMe RAID Controller Card

Broadcom MegaRAID 9580-8i8e SAS3/SATA/NVMe 8+8-Port RAID Controller

Areca ARC-1886-4x12i 4+12 Ports SAS/SATA/NVMe RAID Controller Card

NETWORK CARD

Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)

Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)

Broadcom NetXtreme 50G PCIe 3.0 x8 Ethernet Card (1x QSFP28)

Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)

Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)

Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)

Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)

Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)

Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)

Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)

*No Network Card

Added

Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)

Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)

Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)

Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)

Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)

Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)

Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)

Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)

Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)

Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)

GPU/Coprocessor

ASUS GeForce RTX 3080 TURBO GDDR6 Video Card 10G

NVIDIA A100 80GB HBM2e GPU Card

NVIDIA L40S 48GB GDDR6 GPU Card

GIGABYTE GeForce RTX 3090 TURBO Video Card 24G

NVIDIA RTX 4000 ADA GDDR6 Video Card 20GB

NVIDIA RTX 5000 ADA GDDR6 Video Card 32GB

NVIDIA RTX 4500 ADA GDDR6 Video Card 24GB

NVIDIA RTX 6000 ADA GDDR6 Video Card 48GB

ASUS GeForce RTX 3090 TURBO GDDR6 Video Card 24G

ASUS GeForce RTX 3070 TURBO V2 Lite Hash Rite(LHR) Video Card 8GB

*No GPU

Added

OPERATING SYSTEM

*Please contact our sales for more operating system options

Added

CentOS Enterprise Linux (No Media) (32-Bit/64-bit)

Fedora Linux Workstation Edition 64-bit (No Media)

Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)

Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)

Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)

Debian Linux (No Media) (32-Bit/64-Bit)

Microsoft Windows Server 2025 Standard 64-bit-1User

WARRANTY

*1 Year Parts Replacement Warranty

Added

3 Year Parts Replacement Warranty - Server Value $500 to $2000

3 Year Parts Replacement Warranty - Server Value $2001 to $4000

3 Year Parts Replacement Warranty - Server Value $4001 to $7000

3 Year Parts Replacement Warranty - Server Value $7001 to $10000

3 Year Parts Replacement Warranty - Server Value Over $10000

Please Inquire
	ADD TO QUOTE

3871

3062.0000
