2U4G-ROME/2T

Please Inquire

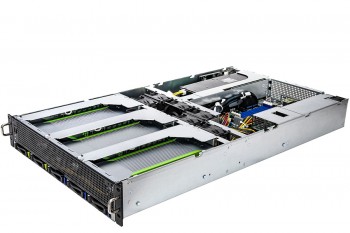

ASRock 2U 4Bays Single AMD Processor Rackmount GPU Server

2U Rackmount with 1+1 2000W Redundant PSU
Single Socket SP3 (LGA 4094), supports AMD EPYC™ 7003 (with AMD 3D V-Cache™ Technology)/7002 series processors
8x DIMM slots (1DPC), supports DDR4 RDIMM, LRDIMM, RDIMM/LRDIMM-3DS
4x dual-slot PCIe4.0 x16, 1 PCIe4.0 x16
3x 2.5" SATA drive bays, 1x 2.5" NVMe/SATA drive bay, 1x 2.5" NVMe drive bay
2x RJ45 (10GbE) by Intel® X550-AT2
1x OCP 2.0 connector A and B (2x PCIe3.0 x8)
Remote Management (IPMI)

Storage configuration notice:
Hot-swap:
4x 2.5" SATA Bays

SKU	2U4G-ROME-2T

Processor

CPU:
Supports AMD EPYC™ 7003 (with AMD 3D V-Cache™ Technology)/7002 Series Processors
A BIOS update is required to support AMD EPYC™ 7003 series processors with AMD 3D V-Cache™ Technology
Socket:
Single Socket SP3 (LGA4094)

Memory

Supported DIMM Quantity:
8 DIMM slots
Supported Type:
8 Channels memory technology
Support DDR4 3200/2933 RDIMM, and LRDIMM
Max. Capacity per DIMM:
RDIMM: 64GB, 32GB, 16GB
LRDIMM: 256GB, 128GB, 64GB
Max. DIMM Frequency:
RDIMM: 3200/2933MHz
LRDIMM: 3200/2933MHz
Voltage:
1.2V

Chassis

2U Rackmount Chassis

Dimensions

438mmx 795mmx 87.5 mm(without ear)
17.2"x 31.3"x 3.4"

Front Panel

Buttons:
Power button
UID button
LEDs:
2 x LAN LEDs (L1, L2, LED)
System event LED
I/O Ports:
2 x USB 2.0 ports

Onboard Devices

Ethernet
Interface:
10000/1000 /100 /10 Mbps by Intel® X550
Additional GbE Controller:
2x RJ45 10G base-T by Intel® X550
1x RJ45 Dedicated IPMI LAN port by RTL8211E
Supports Wake-On-LAN
Supports Energy E_cient Ethernet 802.3az
Supports Dual LAN with Teaming function
Supports PXE
LAN1 supports NCSI

Graphics
Controller:
ASPEED AST2500
VRAM:
DDR4 256Mb

HDD Drive Bays

4x 2.5" SATA 6GB/s HDDs(1x SATA3 HDD could support NVME or SATA3 6GB/s HDDs) + 1x NVME

Expansion Slots

PCIe x 16:
1 PCIe4.0 x16 (in the rear side)
Mezzanine slot:
1 x OCP Mezzanine Type A (Gen3 x8 )
1 x OCP Mezzanine Type B (Gen3 x8 )
M.2:
1 M-key (PCIe3.0 x4 or SATA 6Gb/s), supports 2280/2242 form factor

Power Supply

Type:
2 (1+1), Redundant
Output Watts:
2000W, Platinum
AC Input:
High Line 200-240V, 50/60Hz

Input Output

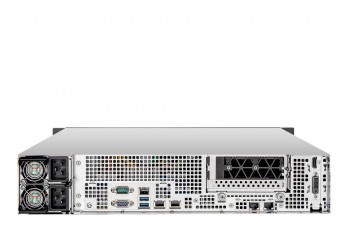

Rear I/O
UID Button/LED:
1x UID button w/ LED
VGA Port:
1x DB15 (VGA)
Serial Port:
1x DB9 (COM)
USB 3.2 Gen1 Port:
2x Type-A (USB3.2 Gen1)
RJ45:
2x RJ45 (10GbE)
1x dedicated IPMI

Cooling

80 x 38 mm x 6 Fan

Operating Environment

Temperature:
Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity:
Non operation humidity: 20% ~ 90% ( Non condensing)
