J5010-02-G4

$8,493.00

AIC 5U with PCIe switch JBOX

Based on Broadcom Atlas 88096 PCIe Gen4 Switch Solution
450mm short-depth system design
High-efficiency/wattage redundant power supply
High-performance and low noise swappable system fans
BMC for system remote monitoring
Extended PCIe slot pitch for better air cooling flow
4U height PCIe card carrier design for top insertion power input Gaming GPU cards
Modular backplane design options for different applications
PCIe X16 GPU / PCIe X8 Add-on cards / PCIe X4 NVMe

SKU	J5010-02-G4

Chassis

5U Chassis

Dimensions

435mm x450mm x219mm
17.1" x17.7" x8.6"

Expansion Slots

Form Factor:
Supports 8x full-height, full-length dual slot/double-width cards
2x PCIe X16 HHHL add-on cards
2x PCIe X1 link for PCIe switch management

Power Supply

2000W dual 1+1 hot-swap redundant 80+ Platinum
1200W dual 1+1 hot-swap redundant 80+ Platinum
Power Entry:
AC Inlet
2000W module C20
1200W module C14

Cooling

6x 12038 PWM fans

Operating Environment

Operating Environment:
Operating temperature: 0° - 35°C
System relative humidity: 20% - 80%
Non-operating Environment:
Operating altitude condition: 0 ~ 10K ft
Storage temperature: -20° ~ 60°C
System relative humidity: 10% - 90%

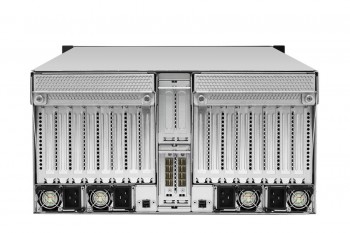

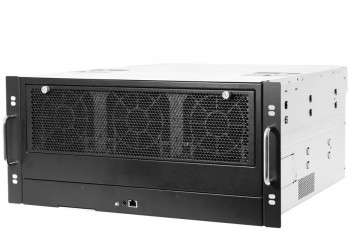

PHOTOS

J5010-02-G4

MY CONFIGURATION

WARRANTY

*1 Year Parts Replacement Warranty

Added

3 Year Parts Replacement Warranty - Server Value $500 to $2000

+ $299.00

3 Year Parts Replacement Warranty - Server Value $2001 to $4000

+ $399.00

3 Year Parts Replacement Warranty - Server Value $4001 to $7000

+ $599.00

3 Year Parts Replacement Warranty - Server Value $7001 to $10000

+ $899.00

3 Year Parts Replacement Warranty - Server Value Over $10000

+ $1,280.00

$8,493.00	ADD TO CART
	ADD TO QUOTE
