J2024-06-35X

Please Inquire

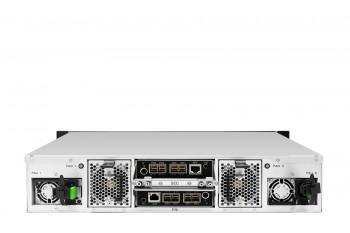

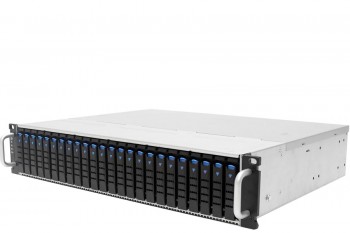

AIC 2U 24Bays Single SAS Expander JBOD

Ruggedized design (Internal board to board connection)
Tool-less design
Hot-swap expander modules, drives, PSU, fans
Short-depth
Clear front panel LED indicators
Optimized thermal solution
BMC onboard

SKU	J2024-06-35X

Chassis

2U Chassis

Dimensions

438mm x345mm x87.5mm
17.2" x13.6" x3.4"

HDD Drive Bays

24x 2.5" Hot-swap HDD Bays

Power Supply

550W 1+1 hot-swap redundant 80+ Platinum
Power Entry:
Dual AC Inlet

Cooling

2x 60x56mm hot-swap fans

Operating Environment

Operating Environment:
Temperature: 0ºC to 35ºC
Relative humidity: 20% to 80%
Non-operating Environment:
Temperature: -20ºC to 60ºC
Relative humidity: 10% to 90%

Details

Dual expanders (Optional)

12Gb & 6Gb SAS if using dual expanders
12Gb & 6Gb SAS/SATA if using single expander

PHOTOS

J2024-06-35X

MY CONFIGURATION

Enterprise-Class HDD/SSD

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB

Samsung SM883 2.5" SATA III SSD 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB

Samsung PM893 2.5" SATA 6Gb/s SSD 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB

Samsung PM893 2.5" SATA 6Gb/s SSD 960GB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB

Samsung PM893 2.5" SATA 6Gb/s SSD 240GB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB

Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB

Added

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB

Samsung PM897 2.5" SATA 6Gb/s SSD 960GB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB

Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
