RM41736-H12DSi-NT6

Please Inquire

OVERVIEW

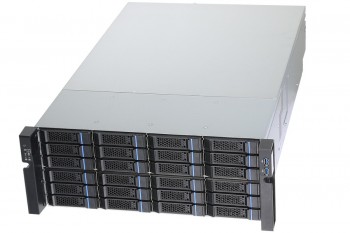

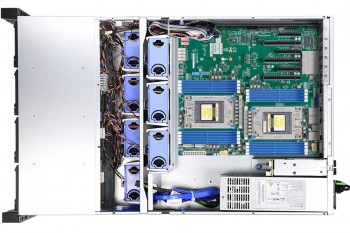

Chenbro 4U 36Bay Dual AMD Processor Rackmount Server

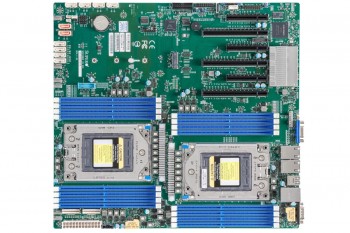

Supermicro Motherboard H12DSi-NT6
Dual AMD EPYC™ 7003/7002 Series Processors
16x DIMM Slots,up to 4TB ECC RDIMM
36x 3.5" Hot-swap HDD bays
1200W Redundant Power supply

Storage configuration notice:
Hot-swap:
36x Hot-swap 3.5" SAS/SATA drive bays

2x Hot-swap 2.5" rear drive bays
M.2:
1x M.2

SPECIFICATIONS

SKU	RM41736-H12DSi-NT6

Processor

CPU:
Dual AMD EPYC™ 7003/7002 Series Processors
(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
Socket SP3
Cores:
Up to 64 Cores
Chipset:
System on Chip

Memory

Memory Capacity:
16 DIMM slots
Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM
8-channel memory bus
For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks
Memory Type:
DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
DIMM Sizes:
8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage:
1.2V
Error Detection:
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

Chassis

4U Rackmount Chassis

Dimensions

D x W x H
699.0 x 432.0 x 176.0 (mm)
27.52” x 17.01” x 6.93”

Front Panel

1x Power On/Off
1x Alarm Mute
1x System Reset
2x USB3.0

Bios	BIOS Type: AMI 256Mb SPI Flash EEPROM BIOS Features: Plug and Play (PnP) DMI 2.3 PCI 2.2 ACPI 6.2 USB Keyboard Support SMBIOS 3.1.1

Onboard Devices

SATA:
SATA3 (6 Gbps)
IPMI:
Support for Intelligent Platform Management Interface v. 2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2600 BMC
Network Controllers:
Dual LAN via Broadcom BCM57416 10GBase-T Ethernet Controller
VGA:
ASPEED AST2600 BMC

HDD Drive Bays

36x 3.5" HOT-SWAP HDD bays

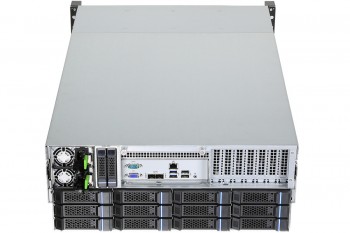

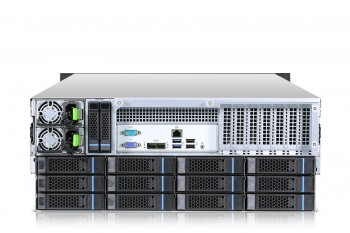

2x 2.5" rear HOT-SWAP HDD bays

Expansion Slots

7 x Low Profile

Power Supply

1 x CRPS, 1200W, Full Range, 80+ Platinum, Acbel FSF050-00AG, w/mounting Bracket

Input Output

On board I/O
SATA:
10 SATA3 (6 Gbps) ports
LAN:
2x 10GBase-T LAN ports
1 RJ45 Dedicated IPMI LAN port
USB:
2 USB 2.0 ports (rear)
4 USB 3.0 ports (2 rear, 2 headers)
VGA:
1 VGA port
Others:
1 COM port (rear)
2 SATA DOM power connectors
4 PCI-E 4.0 NVMe x4 internal ports
TPM 2.0 header

Cooling

7 x 80mm Fan, PWM, T38, Ball Bearing, 4P4C , 7500RPM ,L85mm, Hot-swap, w/Fan Holder

Operating Environment

Operating Temperature Range:
0°C - 50°C (32°F - 122°F)
Non-Operating Temperature Range:
-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range:
10% - 85% (non-condensing)
Non Operating Relative Humidity Range:
10% - 95% (non-condensing)

PHOTOS

RM41736-H12DSi-NT6

MY CONFIGURATION

CPU

AMD EPYC 3rd Gen MILAN 7543P 32 Core 2.80GHz

AMD EPYC 3rd Gen MILAN 7313P 16 Core 3.00GHz

AMD EPYC 3rd Gen MILAN 72F3 8 Core 3.70GHz

Added

AMD EPYC 3rd Gen MILAN 7313 16 Core 3.00GHz

AMD EPYC 3rd Gen MILAN 7443 24 Core 2.85GHz

AMD EPYC 3rd Gen MILAN 73F3 16 Core 3.50GHz

AMD EPYC 3rd Gen MILAN 7343 16 Core 3.20GHz

AMD EPYC 3rd Gen MILAN 7443P 24 Core 2.85GHz

AMD EPYC 3rd Gen MILAN 7413 24 Core 2.65GHz

AMD EPYC 3rd Gen MILAN 7453 28 Core 2.75GHz

AMD EPYC 3rd Gen MILAN 7713P 64 Core 2.00GHz

AMD EPYC 3rd Gen MILAN 7543 32 Core 2.80GHz

AMD EPYC 3rd Gen MILAN 74F3 24 Core 3.20GHz

AMD EPYC 3rd Gen MILAN 7513 32 Core 2.60GHz

AMD EPYC 3rd Gen MILAN 7663 56 Core 2.00GHz

AMD EPYC 3rd Gen MILAN 7763 64 Core 2.45GHz

AMD EPYC 3rd Gen MILAN 7713 64 Core 2.00GHz

AMD EPYC 3rd Gen MILAN 7643 48 Core 2.30GHz

AMD EPYC 3rd Gen MILAN 75F3 32 Core 2.95GHz

MEMORY

Samsung 32GB DDR4 3200 ECC RDIMM Memory

Samsung 64GB DDR4 3200 ECC RDIMM Memory

Samsung 8GB DDR4 3200 ECC RDIMM Memory

Added

Samsung 16GB DDR4 3200 ECC RDIMM Memory

Samsung 8GB DDR4 2933 ECC RDIMM Memory

Samsung 32GB DDR4 2933 ECC RDIMM Memory

Samsung 64GB DDR4 2933 ECC RDIMM Memory

Samsung 16GB DDR4 2933 ECC RDIMM Memory

Samsung 128GB DDR4 3200 ECC LRDIMM Memory

Hynix 64GB DDR4 2666 ECC LRDIMM Memory

Samsung 64GB DDR4 2933 ECC LRDIMM Memory

Enterprise-Class HDD/SSD

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 18TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 6TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 14TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 10TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 12TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 8TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 16TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 18TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 16TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 4TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 20TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 22TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 20TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 4TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 6TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB

Added

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 10TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 12TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 14TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 8TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 2TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB

NVMe M.2

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB

Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB

Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB

SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB

Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB

SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB

SAMSUNG PM9A3 M.2 Nvme SSD 960GB

WD Black SN850 M.2 G4 NVMe SSD 1TB

WD Black SN850 M.2 G4 NVMe SSD 2TB

Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB

Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB

WD Black SN850 M.2 G4 NVMe SSD 500GB

Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB

Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB

Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB

Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB

Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB

*No NVMe M.2 Drives

Added

Samsung 983 DCT M.2 NVMe SSD 1.92TB

Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB

Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB

Samsung 983 DCT M.2 NVMe SSD 960GB

OS DRIVE

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB

Samsung PM893 2.5" SATA 6Gb/s SSD 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB

Samsung SM883 2.5" SATA III SSD 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB

Samsung PM893 2.5" SATA 6Gb/s SSD 960GB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB

Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB

Samsung PM897 2.5" SATA 6Gb/s SSD 960GB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB

Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB

*No OS Drive

Added

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB

Samsung PM893 2.5" SATA 6Gb/s SSD 240GB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB

RAID CONTROLLER CARD

*NO RAID Controller Card

Added

LSI 9560-16I TRI MODE NVMe RAID CONTROLLER

NETWORK CARD

Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)

Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)

Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)

Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)

Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)

Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)

Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)

Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)

Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)

Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)

Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)

Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)

Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)

Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)

Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)

Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)

Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)

Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)

*No Network Card

Added

Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)

OPERATING SYSTEM

*Please contact our sales for more operating system options

Added

Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)

Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)

Fedora Linux Workstation Edition 64-bit (No Media)

CentOS Enterprise Linux (No Media) (32-Bit/64-bit)

Debian Linux (No Media) (32-Bit/64-Bit)

Microsoft Windows Server 2025 Standard 64-bit-1User

WARRANTY

*1 Year Parts Replacement Warranty

Added

3 Year Parts Replacement Warranty - Server Value $500 to $2000

3 Year Parts Replacement Warranty - Server Value $2001 to $4000

3 Year Parts Replacement Warranty - Server Value $4001 to $7000

3 Year Parts Replacement Warranty - Server Value $7001 to $10000

3 Year Parts Replacement Warranty - Server Value Over $10000

Please Inquire
	ADD TO QUOTE

3985

3176.0000
