ESC8000A-E11

Please Inquire

ASUS 4U 8Bays Dual AMD Processor Rackmount Server

Fueled by dual-socket AMD EPYC™ 7003 series processors supporting a 280 W TDP
Up to 11 PCIe® 4.0 slots enables higher bandwidth and improved data transfer rates
GPU-optimized design allows eight dual-slot active or passive GPUs, including NVIDIA® A100 or AMD Instinct™ MI100
Supports NVIDIA NVLink® bridge to enable performance scaling
Up to eight 3.5” or 2.5” flexible storage bays to enable extensive storage and high-throughput performance
High power efficiency with four redundant 3000 W 80 Plus Titanium power supplies
Optimized power-saving thermal design with independent CPU and GPU airflow tunnels
Onboard ASUS ASMB10-iKVM for out-of-band management with ASPEED AST2600 controller
Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency

Storage configuration notice:
Hot-swap:
8x Hot-swap 2.5" drive bays
M.2:
2x M.2

SKU	ESC8000A-E11

Processor

2x Socket SP3 (LGA 4094)
AMD EPYC™ 7003 Series

Memory

Total Slots :
32 (8-channel, 2DPC)
Capacity :
Max. 8,192GB
Memory Type :
DDR4 3200 RDIMM / LRDIMM / LRDIMM 3DS
Memory Size :
256GB, 128GB, 64GB, 32GB, 16GB

Chassis

4U Rackmount Chassis

Dimensions

800 x 440 x 175.6mm

HDD Drive Bays

8 x 3.5" Hot-swap Storage Bays
(Backplane Supports 4 x SATA/SAS + 4 SATA/SAS/NVMe Devices)*

Modular support 2 x M.2 sockets (Gen4 x4 link, up to 22110) by SKU configuration.

To support SATA/SAS drives, an additional HBA/RAID card is required.
To support NVMe SSD, from CPU direct signal, the Max. Qty is 2. If uesrs equip with Broadcom 9560-16I card, the Max. Qty is 4.

Expansion Slots

8 x PCIe x16 slots (Gen4 x16 link, FH,FL) for dual-slot GPU cards
SKU-1 (2PCIe + 2NVMe)
Front: 1 x PCIe x16 slot (Gen4 x8 link, FH,HL)
Rear: 1 x PCIe x16 slot (Gen4 x16 link, FH,HL)
SKU-2 (1PCIe + 1OCP3.0 + 2NVMe)
Front: 1 x PCIe x16 slot (Gen4 x8 link, FH,HL)
Rear: 1 x OCP3.0 NIC socket (Gen4 x16 link)
SKU-3 (3PCIe)
Front: 1 x PCIe x16 slot (Gen4 x8 link, FH,HL)
Rear: 1 x PCIe x16 slot (Gen4 x16 link, FH,HL)
1 x PCIe x16 slot (Gen4 x8 link, LP,HL)
SKU-4 (3PCIe + 2NVMe)
Front: 1 x PCIe x16 slot (Gen4 x8 link, FH,HL)
Rear: 1 x PCIe x16 slot (Gen4 x8 link, FH,HL)
1 x PCIe x16 slot (Gen4 x8 link, LP,HL)

Power Supply

2+2 Redundant 2200W 80 PLUS Platinum Power Supply
Rating: 100-127/200-240Vac,14A/12.6A,50-60Hz Class I
2+2 Redundant 3000W 80 PLUS Titanium Power Supply
Rating: 220-240Vac,15.5A,50-60Hz Class I

Input Output

Front I/O Ports

2 x USB 3.2 Gen1 ports
Rear I/O Ports

1 x Management port (RJ45)

Operating Environment

Operation temperature: 10℃ ~ 35℃
Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)

Details

Switch/LED

Front :
1 x Power Button/LED
1 x Location Button/LED
1 x Message LED
Rear :
1 x Location LED

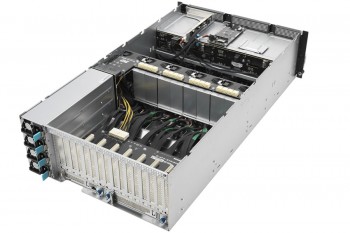

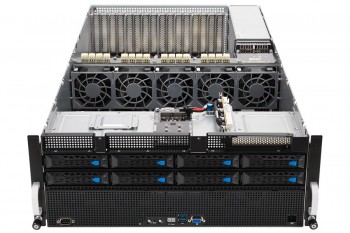

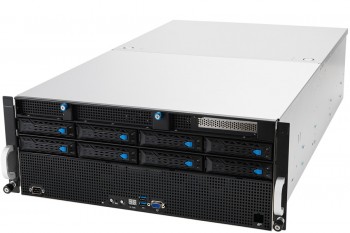

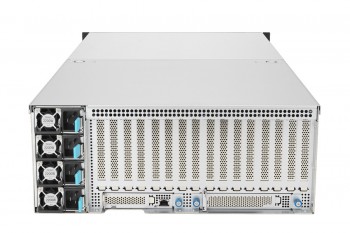

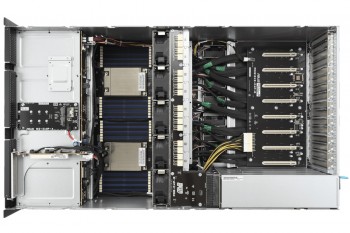

PHOTOS

ESC8000A-E11

MY CONFIGURATION

CPU

AMD EPYC 3rd Gen MILAN 74F3 24 Core 3.20GHz

AMD EPYC 3rd Gen MILAN 72F3 8 Core 3.70GHz

Added

AMD EPYC 3rd Gen MILAN 7313P 16 Core 3.00GHz

AMD EPYC 3rd Gen MILAN 7313 16 Core 3.00GHz

AMD EPYC 3rd Gen MILAN 7443P 24 Core 2.85GHz

AMD EPYC 3rd Gen MILAN 7443 24 Core 2.85GHz

AMD EPYC 3rd Gen MILAN 7413 24 Core 2.65GHz

AMD EPYC 3rd Gen MILAN 7453 28 Core 2.75GHz

AMD EPYC 3rd Gen MILAN 73F3 16 Core 3.50GHz

AMD EPYC 3rd Gen MILAN 7343 16 Core 3.20GHz

AMD EPYC 3rd Gen MILAN 7663 56 Core 2.00GHz

AMD EPYC 3rd Gen MILAN 7513 32 Core 2.60GHz

AMD EPYC 3rd Gen MILAN 7543P 32 Core 2.80GHz

AMD EPYC 3rd Gen MILAN 7543 32 Core 2.80GHz

AMD EPYC 3rd Gen MILAN 7643 48 Core 2.30GHz

AMD EPYC 3rd Gen MILAN 7763 64 Core 2.45GHz

AMD EPYC 3rd Gen MILAN 75F3 32 Core 2.95GHz

AMD EPYC 3rd Gen MILAN 7713P 64 Core 2.00GHz

AMD EPYC 3rd Gen MILAN 7713 64 Core 2.00GHz

MEMORY

Samsung 32GB DDR4 3200 ECC RDIMM Memory

Samsung 8GB DDR4 3200 ECC RDIMM Memory

Added

Samsung 16GB DDR4 3200 ECC RDIMM Memory

Samsung 64GB DDR4 3200 ECC RDIMM Memory

Samsung 8GB DDR4 2933 ECC RDIMM Memory

Samsung 32GB DDR4 2933 ECC RDIMM Memory

Samsung 16GB DDR4 2933 ECC RDIMM Memory

Samsung 64GB DDR4 2933 ECC RDIMM Memory

Hynix 64GB DDR4 2666 ECC LRDIMM Memory

Samsung 64GB DDR4 2933 ECC LRDIMM Memory

Samsung 128GB DDR4 3200 ECC LRDIMM Memory

Enterprise-Class HDD/SSD

Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB

Samsung PM893 2.5" SATA 6Gb/s SSD 960GB

Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB

Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB

Samsung PM893 2.5" SATA 6Gb/s SSD 480GB

Samsung SM883 2.5" SATA III SSD 480GB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB

Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB

Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB

Samsung PM897 2.5" SATA 6Gb/s SSD 960GB

Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB

Added

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB

Samsung PM893 2.5" SATA 6Gb/s SSD 240GB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB

NVMe M.2

Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB

SAMSUNG PM9A3 M.2 Nvme SSD 960GB

SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB

Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB

Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB

SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB

WD Black SN850 M.2 G4 NVMe SSD 1TB

WD Black SN850 M.2 G4 NVMe SSD 2TB

Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB

Samsung 983 DCT M.2 NVMe SSD 960GB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB

Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB

Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB

WD Black SN850 M.2 G4 NVMe SSD 500GB

Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB

Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB

Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB

Samsung 983 DCT M.2 NVMe SSD 1.92TB

Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB

Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB

*No NVMe M.2 Drives

Added

Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB

(Optional) Enterprise-Class HDD/SSD

Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB

Samsung PM893 2.5" SATA 6Gb/s SSD 240GB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB

Samsung PM893 2.5" SATA 6Gb/s SSD 960GB

Micron 7450 PRO NVMe U.3 (15mm) SSD 960GB

Samsung PM893 2.5" SATA 6Gb/s SSD 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB

Samsung SM883 2.5" SATA III SSD 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB

*No Hard Drive

Added

Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB

Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB

Samsung 983 DCT 2.5" U.2 NVMe SSD 1.9TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB

Samsung PM897 2.5" SATA 6Gb/s SSD 960GB

Samsung 983 DCT 2.5" U.2 NVMe SSD 960GB

Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB

RAID CONTROLLER CARD

*NO RAID Controller Card

Added

Broadcom 9500-8i SAS3/SATA/NVMe 8-Port HBA

Broadcom MegaRAID 9560-8i SAS3/SATA/NVMe 8-Port RAID Controller

Broadcom MegaRAID 9580-8i8e SAS3/SATA/NVMe 8+8-Port RAID Controller

YM 4U Bay 3.5" Hot Swap SAS/SATA Drive Bays w/ 12G SAS HBA and Cables

NETWORK CARD

Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)

Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)

Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)

Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)

Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)

Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)

Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)

Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)

Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)

Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)

Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)

Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)

Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)

Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)

Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)

Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)

Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)

Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)

*No Network Card

Added

Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)

GPU/Coprocessor

NVIDIA TESLA P100 VLink Video Card 16GB

ASUS GeForce RTX 3080 TURBO GDDR6 Video Card 10G

NVIDIA L40S 48GB GDDR6 GPU Card

NVIDIA RTX 4000 ADA GDDR6 Video Card 20GB

NVIDIA RTX 6000 ADA GDDR6 Video Card 48GB

GIGABYTE GeForce RTX 3090 TURBO Video Card 24G

*No GPU

Added

NVIDIA H100 80GB HBM2e GPU Card

ASUS GeForce RTX 3070 TURBO V2 Lite Hash Rite(LHR) Video Card 8GB

NVIDIA A100 80GB HBM2e GPU Card

NVIDIA RTX 4500 ADA GDDR6 Video Card 24GB

NVIDIA RTX 5000 ADA GDDR6 Video Card 32GB

ASUS GeForce RTX 3090 TURBO GDDR6 Video Card 24G

Gigabyte GeForce RTX™ 3080 TURBO 10G (rev. 2.0) Graphics Card

NVIDIA L40 48GB GDDR6 GPU Card

OPERATING SYSTEM

*Please contact our sales for more operating system options

Added

Debian Linux (No Media) (32-Bit/64-Bit)

Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)

Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)

Fedora Linux Workstation Edition 64-bit (No Media)

CentOS Enterprise Linux (No Media) (32-Bit/64-bit)

Microsoft Windows Server 2025 Standard 64-bit-1User

WARRANTY

*1 Year Parts Replacement Warranty

Added

3 Year Parts Replacement Warranty - Server Value $500 to $2000

3 Year Parts Replacement Warranty - Server Value $2001 to $4000

3 Year Parts Replacement Warranty - Server Value $4001 to $7000

3 Year Parts Replacement Warranty - Server Value $7001 to $10000

3 Year Parts Replacement Warranty - Server Value Over $10000

Please Inquire
	ADD TO QUOTE

3987

5330.0000
