ESC4000A-E12-26WGP

Please Inquire

ASUS 2U (4+2)Bays Single AMD Processor Rackmount GPU Server

Powerful performance
AI and HPC workloads ready
Power-efficient system design
Comprehensive cooling solutions
Scale-up storage and expansion design
Flexible networking module design
Enhanced IT-infrastructure management

Storage configuration notice:
External:
2x 2.5" Hot-swap HDD Bays
4x 3.5" Hot-swap HDD Bay

SKU	ESC4000A-E12-26WGP

Processor

1x Socket SP5 (LGA 6096)
AMD EPYC™ 9004 series (up to 400W)

Memory

Total Slots : 12 (12-channel)
Capacity : Maximum up to 3TB RDIMM
Memory Type :
DDR5 4800/4400 RDIMM/RDIMM 3DS
Memory Size :
64GB, 32GB, 16GB RDIMM
256GB, 128GB 3DS RDIMM

Chassis

2U Rackmount Chassis

Dimensions

800mm x 439.5mm x 88.9mm (2U)
31.50" x 17.30" x 3.50"

Onboard Devices

Storage

Storage Controller :
CPU Integrated
Optional kits:
ASUS PIKE II 3008 8-port SAS 12Gb/s HBA card
ASUS PIKE II 3108 8-port SAS HW 12Gb/s RAID card
Broadcom MegaRAID 9540-8i
Broadcom MegaRAID 9560-16i

Networking
2x GbE LAN ports (Intel I350 Controller)
1x Management Port

HDD Drive Bays

2x 2.5" & 4x 3.5" Hot-swap Storage Bays

RAID card is required to support SAS hard drives
additional 2 x NVMe support required a RAID card.

Expansion Slots

Rear:
4 x PCIe x16 slots (Gen5 x16 link, FH, FL) for dual-slot GPU cards or
8 x PCIe x16 slots (Gen5 x8 link, FH,FL) for single-slot GPU cards

1 x PCIe x16 slots (Gen5 x16 link, FH, HL)
1 x PCIe x16 slot (Gen5 x16/x8 link, FH, HL) or OCP socket option or M.2 riser module
1 x PCIe x8 slot (Gen5 x0/x8 link, LP, HL)

Front: 1 x PCIe x8 slot (Gen5 x8 link, LP, HL) Only for SKU1

Power Supply

1+1 Redundant 2600W 80 PLUS Titanium CRPS-R Power Supply

Input Output

Front I/O Ports
1x Q-code/port-80 LED
4x USB 3.2 Gen1 ports

Rear I/O Ports
2x USB 3.2 Gen1 ports
2x Gigabit LAN ports
1x MAnagement port
1x VGA port

Switch/LED
Front :
1x Power Button/LED
1x Location Button/LED
1x Message LED
1x Q-Code/Port 80 LED
2x LAN LED
Rear :
1x Power Button/LED
1x Location LED
1x Message LED

Operating Environment

Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)

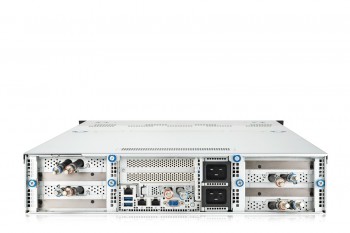

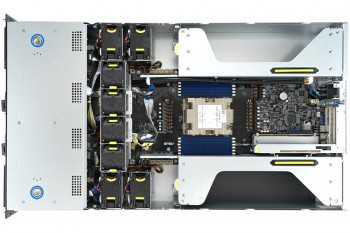

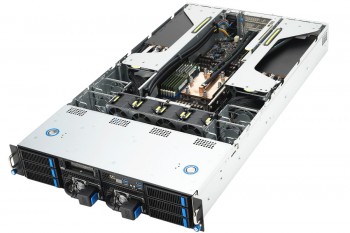

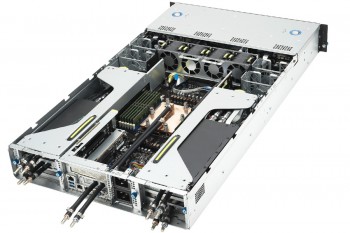

PHOTOS

ESC4000A-E12-26WGP

MY CONFIGURATION

CPU

AMD EPYC 4th Gen Processor 9554 (3.10GHz,360W)

AMD EPYC 4th Gen Processor 9654P (2.40GHz,360W)

AMD EPYC 4th Gen Processor 9554P (3.10GHz,360W)

AMD EPYC 4th Gen Processor 9374F (3.85GHz,320W)

AMD EPYC 4th Gen Processor 9274F (3.40GHz,320W)

AMD EPYC 4th Gen Processor 9454P (2.75GHz,290W)

AMD EPYC 4th Gen Processor 9354P (3.25GHz,280W)

AMD EPYC 4th Gen Processor 9474F (3.60GHz,360W)

AMD EPYC 4th Gen Processor 9174F (4.10GHz,320W)

AMD EPYC 4th Gen Processor 9354 (3.25GHz,280W)

AMD EPYC 4th Gen Processor 9654 (2.40GHz,360W)

AMD EPYC 4th Gen Processor 9634 (2.25GHz,290W)

AMD EPYC 4th Gen Processor 9534 (2.45GHz,280W)

AMD EPYC 4th Gen Processor 9224 (2.50GHz,200W)

AMD EPYC 4th Gen Processor 9454 (3.75GHz,290W)

AMD EPYC 4th Gen Processor 9334 (2.70GHz,210W)

AMD EPYC 4th Gen Processor 9124 (3.00GHz,200W)

Added

AMD EPYC 4th Gen Processor 9254 (2.50GHz,200W)

MEMORY

Samsung 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Samsung 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Samsung 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Added

Enterprise-Class HDD/SSD

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 6TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 8TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 14TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 12TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 4TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 16TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 18TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 10TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 18TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 16TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 20TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 22TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 20TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB

Added

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 6TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 4TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 8TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 12TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 10TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 14TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 2TB

(Optional) Enterprise-Class HDD/SSD

Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB

Samsung PM9A3 2.5" U.2 NVMe SSD 15TB

Micron 7450 PRO NVMe U.3 (15mm) SSD 960GB

Micron 7450 PRO NVMe U.3 (15mm) SSD 1.92TB

Micron 7450 MAX NVMe U.3 (15mm) SSD 1.6TB

Micron 7450 MAX NVMe U.3 (15mm) SSD 3.2TB

Micron 7450 MAX NVMe U.3 (15mm) SSD 800GB

Micron 7450 PRO NVMe U.3 (15mm) SSD 3.84TB

Micron 7450 PRO NVMe U.3 (15mm) SSD 15.36TB

Micron 7450 PRO NVMe U.3 (15mm) SSD 7.68TB

Micron 7450 MAX NVMe U.3 (15mm) SSD 6.4TB

Micron 7450 MAX NVMe U.3 (15mm) SSD 12.8TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB

Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB

Samsung PM897 2.5" SATA 6Gb/s SSD 960GB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB

Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB

Samsung PM893 2.5" SATA 6Gb/s SSD 240GB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB

*No Hard Drive

Added

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB

Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB

Samsung PM893 2.5" SATA 6Gb/s SSD 960GB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB

Samsung PM893 2.5" SATA 6Gb/s SSD 480GB

Samsung SM883 2.5" SATA III SSD 480GB

Samsung PM9A3 2.5" U.2 NVMe SSD 1.92TB

Samsung PM9A3 2.5" U.2 NVMe SSD 960GB

Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB

Samsung PM9A3 2.5" U.2 NVMe SSD 3.84TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB

Samsung PM9A3 2.5" U.2 NVMe SSD 7.68TB

RAID CONTROLLER CARD

*NO RAID Controller Card

Added

LSI 9560-16I TRI MODE NVMe RAID CONTROLLER

Areca ARC-1886-16i 16 Ports SAS/SATA/NVMe RAID Controller Card

Areca ARC-1886-4x12i 4+12 Ports SAS/SATA/NVMe RAID Controller Card

NETWORK CARD

Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)

Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)

Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)

Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)

Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)

Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)

Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)

Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)

Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)

Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)

Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)

Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)

Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)

Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)

Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)

Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)

Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)

Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)

*No Network Card

Added

Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)

GPU/Coprocessor

NVIDIA L40S 48GB GDDR6 GPU Card

GIGABYTE GeForce RTX 3090 TURBO Video Card 24G

*No GPU

Added

NVIDIA A100 80GB HBM2e GPU Card

NVIDIA RTX 4000 ADA GDDR6 Video Card 20GB

NVIDIA RTX 5000 ADA GDDR6 Video Card 32GB

ASUS GeForce RTX 3090 TURBO GDDR6 Video Card 24G

NVIDIA RTX 4500 ADA GDDR6 Video Card 24GB

NVIDIA RTX 6000 ADA GDDR6 Video Card 48GB

NVIDIA L40 48GB GDDR6 GPU Card

NVIDIA H100 80GB HBM2e GPU Card

ASUS GeForce RTX 3070 TURBO V2 Lite Hash Rite(LHR) Video Card 8GB

Gigabyte GeForce RTX™ 3080 TURBO 10G (rev. 2.0) Graphics Card

OPERATING SYSTEM

*Please contact our sales for more operating system options

Added

Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)

Debian Linux (No Media) (32-Bit/64-Bit)

CentOS Enterprise Linux (No Media) (32-Bit/64-bit)

Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)

Fedora Linux Workstation Edition 64-bit (No Media)

Microsoft Windows Server 2025 Standard 64-bit-1User

WARRANTY

*1 Year Parts Replacement Warranty

Added

3 Year Parts Replacement Warranty - Server Value $500 to $2000

3 Year Parts Replacement Warranty - Server Value $2001 to $4000

3 Year Parts Replacement Warranty - Server Value $4001 to $7000

3 Year Parts Replacement Warranty - Server Value $7001 to $10000

3 Year Parts Replacement Warranty - Server Value Over $10000

Please Inquire
