E283-Z90-AAD1

Please Inquire

OVERVIEW

Gigabyte 2U 4Bays Short Depth Dual AMD Processor Rackmount Server

AMD EPYC™ 9004 series processor family
Dual processor, 5nm technology
12-Channel RDIMM DDR5, 24x DIMMs
Dual ROM Architecture supported
2x 1Gb/s LAN ports (Intel® I350-AM2)
1x dedicated management port
4x 2.5" Gen4 NVMe/SATA hot-swappable bays on rear side
2x Ultra-Fast M.2 with PCIe Gen3 interface
6x FHHL PCIe Gen5 expansion slots
2x OCP 3.0 Gen5x16 mezzanine slots
Dual 1600W (240V) 80 PLUS Platinum redundant power supply

Storage configuration notice:
External:
rear 4x 2.5" Hot-swap HDD Bays

M.2:
1x M.2

SPECIFICATIONS

SKU	E283-Z90-AAD1

Processor

AMD EPYC™ 9004 series processor family
Dual processor, 5nm technology
Up to 96-core, 192 threads per processor
cTDP up to 400W

Socket
2 x LGA 6096
Socket SP5

Memory

24 x DIMM slots
DDR5 memory supported only
12-Channel memory architecture per processor
RDIMM modules up to 128GB supported
3DS RDIMM modules up to 256GB supported
Memory speed: Up to 4800 MHz

Chassis

2U Rackmount Chassis

Dimensions

438mm x 87mm x 625mm

Onboard Devices

LAN
2x 1GbE LAN ports (1x Intel® I350-AM2)
Supported NCSI function
1x 10/100/1000 management LAN

Video
Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

HDD Drive Bays

4x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays on rear side
SAS card is required for SAS devices support

Expansion Slots

Riser Card CRS101T:
1x PCIex16 slot (Gen5x16), FHHL from CPU_0

Riser Card CRS101Q:
1x PCIex16 slot (Gen5x16), FHHL from CPU_1

Riser Card CRS202M:
1x PCIex16 slot (Gen5x16), FHHL from CPU_0
1x PCIex16 slot (Gen5x8), FHHL from CPU_0

Riser Card CRS202N:
1x PCIex16 slot (Gen5x16), FHHL from CPU_1
1x PCIex16 slot (Gen5x8), FHHL from CPU_0

2x OCP 3.0 slots with PCIe Gen5x16 bandwidth
(1x from CPU_0 and 1x from CPU_1)
Supported NCSI function

1x M.2 slot:
M-key
PCIe Gen3x4 from CPU_0
Supports 2280/22110 cards

1x M.2 slot:
M-key
PCIe Gen3x4 from CPU_1
Supports 2280/22110 cards
Occupied by CRS2810. 4x SATA ports

1x M.2 slot:
M-key
PCIe Gen3x2 from CPU_1
Supports 2280/22110 cards

Power Supply

Dual 1600W (240V) 80 PLUS Platinum redundant power supply

AC Input:
100-120V~/ 12A, 50-60Hz
200-240V~/ 10A, 50-60Hz

DC Input:
240Vdc/ 10A

DC Output:
Max 1000W/ 100-120V~
+ 12V/ 81.5A
+ 12Vsb/ 2.5A
Max 1600W/ 200-240V~ or 240Vdc Input
+ 12V/ 133A
+ 12Vsb/ 2.5A

Input Output

Internal I/O
3x M.2 slots
1x TPM header
2x OCP 3.0 mezzanine slots

Front I/O
2x USB 3.2 Gen1
1x Power button with LED
1x ID button with LED
1x NMI button
1x Reset button
2x LAN activity LEDs
1x HDD activity LED
1x System status LED

Rear I/O
2x USB 3.2 Gen1
1x Mini-DP
2x RJ45
1x MLAN
1x ID button with LED

Backplane I/O
Rear Side Backplane P/N: 9CBP2022NR-00
Speed and bandwidth:
PCIe Gen4x4 or SATA 6Gb/s or SAS 12Gb/s on rear side

Cooling

4x 80x80x38mm (18,300rpm) System Fans

Operating Environment

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Details

System Management
Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

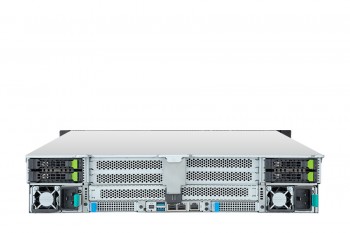

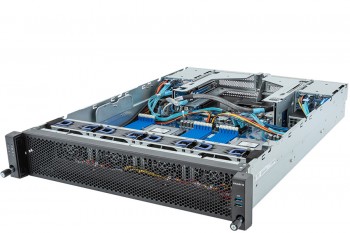

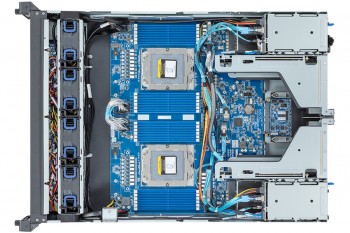

PHOTOS

E283-Z90-AAD1

MY CONFIGURATION

CPU

AMD EPYC 4th Gen Processor 9354 (3.25GHz,280W)

AMD EPYC 4th Gen Processor 9454 (3.75GHz,290W)

AMD EPYC 4th Gen Processor 9334 (2.70GHz,210W)

AMD EPYC 4th Gen Processor 9224 (2.50GHz,200W)

AMD EPYC 4th Gen Processor 9124 (3.00GHz,200W)

Added

AMD EPYC 4th Gen Processor 9254 (2.50GHz,200W)

AMD EPYC 4th Gen Processor 9634 (2.25GHz,290W)

AMD EPYC 4th Gen Processor 9654 (2.40GHz,360W)

AMD EPYC 4th Gen Processor 9554 (3.10GHz,360W)

AMD EPYC 4th Gen Processor 9534 (2.45GHz,280W)

AMD EPYC 4th Gen Processor 9474F (3.60GHz,360W)

AMD EPYC 4th Gen Processor 9174F (4.10GHz,320W)

AMD EPYC 4th Gen Processor 9274F (3.40GHz,320W)

AMD EPYC 4th Gen Processor 9374F (3.85GHz,320W)

MEMORY

Samsung 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Samsung 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Added

Samsung 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Micron 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Micron 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Micron 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

NVMe M.2

WD Black SN850 M.2 G4 NVMe SSD 2TB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB

Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB

SAMSUNG PM9A3 M.2 Nvme SSD 960GB

Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB

SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB

SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB

Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB

Micron 7400 Pro NVMe M.2 (22x80) SSD 480GB

Micron 7400 Pro NVMe M.2 (22x110) SSD 1.92TB

Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB

Micron 7400 Pro NVMe M.2 (22x80) SSD 960GB

Micron 7400 Pro NVMe M.2 (22x110) SSD 3.84TB

Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB

WD Black SN850 M.2 G4 NVMe SSD 500GB

Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB

WD Black SN850 M.2 G4 NVMe SSD 1TB

Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB

Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB

Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB

Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB

*No NVMe M.2 Drives

Added

Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB

Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB

Micron 7400 MAX NVMe M.2 (22x80) SSD 800GB

Micron 7400 MAX NVMe M.2 (22x80) SSD 400GB

(Optional) Enterprise-Class HDD/SSD

Micron 7400 MAX NVMe U.3 (7mm) SSD 800GB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB

Micron 7400 PRO NVMe U.3 (7mm) SSD 1.92TB

Micron 7400 PRO NVMe U.3 (7mm) SSD 3.84TB

Micron 7400 PRO NVMe U.3 (7mm) SSD 7.68TB

Micron 7400 PRO NVMe U.3 (7mm) SSD 960GB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB

Micron 7400 MAX NVMe U.3 (7mm) SSD 1.6TB

Micron 7400 MAX NVMe U.3 (7mm) SSD 6.4TB

Micron 7400 MAX NVMe U.3 (7mm) SSD 3.2TB

Micron 7450 PRO NVMe U.3 (15mm) SSD 960GB

Micron 7450 PRO NVMe U.3 (15mm) SSD 1.92TB

Micron 7450 PRO NVMe U.3 (15mm) SSD 3.84TB

Micron 7450 PRO NVMe U.3 (15mm) SSD 15.36TB

Micron 7450 PRO NVMe U.3 (15mm) SSD 7.68TB

Micron 7450 MAX NVMe U.3 (15mm) SSD 3.2TB

Micron 7450 MAX NVMe U.3 (15mm) SSD 1.6TB

Micron 7450 MAX NVMe U.3 (15mm) SSD 800GB

Micron 7450 MAX NVMe U.3 (15mm) SSD 12.8TB

Micron 7450 MAX NVMe U.3 (15mm) SSD 6.4TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB

Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB

Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB

Added

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB

Samsung PM893 2.5" SATA 6Gb/s SSD 240GB

Samsung PM897 2.5" SATA 6Gb/s SSD 960GB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB

Samsung PM893 2.5" SATA 6Gb/s SSD 960GB

Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB

Samsung PM893 2.5" SATA 6Gb/s SSD 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB

Samsung SM883 2.5" SATA III SSD 480GB

Samsung PM9A3 2.5" U.2 NVMe SSD 1.92TB

Samsung PM9A3 2.5" U.2 NVMe SSD 3.84TB

Samsung PM9A3 2.5" U.2 NVMe SSD 960GB

Samsung PM9A3 2.5" U.2 NVMe SSD 7.68TB

Samsung PM9A3 2.5" U.2 NVMe SSD 15TB

RAID CONTROLLER CARD

*NO RAID Controller Card

Added

Broadcom 9500-8i SAS3/SATA/NVMe 8-Port HBA

Broadcom MegaRAID 9560-8i SAS3/SATA/NVMe 8-Port RAID Controller

Areca ARC-1886-8i 8 Ports SAS/SATA/NVMe RAID Controller Card

Areca ARC-1886-8X8i 8+8 Ports SAS/SATA/NVMe RAID Controller Card

Broadcom MegaRAID 9580-8i8e SAS3/SATA/NVMe 8+8-Port RAID Controller

OPERATING SYSTEM

*Please contact our sales for more operating system options

Added

CentOS Enterprise Linux (No Media) (32-Bit/64-bit)

Debian Linux (No Media) (32-Bit/64-Bit)

Fedora Linux Workstation Edition 64-bit (No Media)

Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)

Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)

Microsoft Windows Server 2022 Standard 64-bit-1User

WARRANTY

*1 Year Parts Replacement Warranty

Added

3 Year Parts Replacement Warranty - Server Value $500 to $2000

3 Year Parts Replacement Warranty - Server Value $2001 to $4000

3 Year Parts Replacement Warranty - Server Value $4001 to $7000

3 Year Parts Replacement Warranty - Server Value $7001 to $10000

3 Year Parts Replacement Warranty - Server Value Over $10000

Please Inquire
	ADD TO QUOTE
