R163-Z30-AAB1

Please Inquire

OVERVIEW

Gigabyte 1U 4Bays Dual Single Processor Rackmount Server

AMD EPYC™ 9004 series processor family
Single processor, 5nm technology
12-Channel RDIMM DDR5, 12x DIMMs
Dual ROM Architecture supported
1x 1Gb/s LAN port (Intel® I210-AT)
1x Dedicated management port
4x 3.5/2.5" Gen4 NVMe/SATA hot-swappable bays
1x M.2 slot with PCIe Gen3x4 interface
2x FHHL PCIe Gen5x16 slots
2x OCP 3.0 Gen5x16 mezzanine slots
Dual 800W 80 PLUS Platinum redundant power supply

Storage configuration notice:
External:
4x 3.5" Hot-swap HDD Bays

M.2:
1x M.2

SPECIFICATIONS

SKU	R163-Z30-AAB1

Processor

AMD EPYC™ 9004 series processor family
Single processor, 5nm technology
Up to 96-core, 192 threads per processor
cTDP up to 320W

Supports CPU 360W at ambient 30°C
Supports CPU 400W at ambient 25°C

Socket
1 x LGA 6096
Socket SP5

Memory

12 x DIMM slots
DDR5 memory supported only
12-Channel memory architecture
RDIMM modules up to 128GB supported
3DS RDIMM modules up to 256GB supported
Memory speed: Up to 4800 MHz

Chassis

1U Rackmount Chassis

Dimensions

438mm x 43.5mm x 710mm

Onboard Devices

LAN
1 x 1Gb/s LAN port (1 x Intel® I210-AT)
Supported NCSI function
1 x 10/100/1000 management LAN

Video
Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

HDD Drive Bays

4 x 3.5/2.5" Gen4 NVMe/SATA/SAS hot-swappable bays

SAS card is required for SAS devices support

Expansion Slots

Riser Card CRS101V:
1x PCIex16 (Gen5x16) FHHL slot

Riser Card CRS101W:
1x PCIex16 (Gen5x16) FHHL slot

2x OCP 3.0 slots with PCIe Gen5x16 bandwidth
Supported NCSI function

1x M.2 slot:
M-key
PCIe Gen3x4
Supports 2280/22110 cards

Power Supply

Dual 800W 80 PLUS Platinum redundant power supply

AC Input:
100-240V~/ 10-4A, 50-60Hz

DC Input:
240Vdc/ 4.5A

DC Output:
Max 800W
+ 12V/ 66A
+ 12Vsb/ 2.5A

NOTE: The default power supply is based on a basic system configuration. Please contact with technical representatives to determine the best power supply selection for your system configuration requirements and preferred efficiency.

Input Output

Internal I/O
1x M.2 slot
1x TPM header
2x OCP 3.0 mezzanine slots

Front I/O
2x USB 3.2 Gen1
1x Power button with LED
1x ID button with LED
1x NMI button
1x Reset button
1x LAN activity LED
1x HDD activity LED
1x System status LED

Rear I/O
2x USB 3.2 Gen1
1x Mini-DP
1x RJ45
1x MLAN
1x ID button with LED

Backplane I/O
Backplane P/N: 9CBP1047NR-00
Speed and bandwidth:
PCIe Gen4x4 or SATA 6Gb/s or SAS 12Gb/s

Cooling

System Fans
4 x 40x40x56mm (29,700rpm)
2 x 40x40x28mm (25,000rpm)

Operating Environment

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Details

System Management
Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

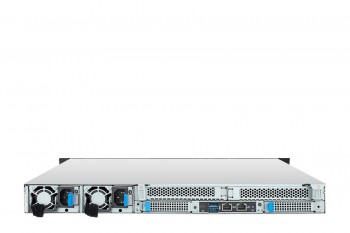

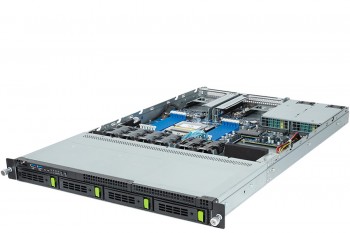

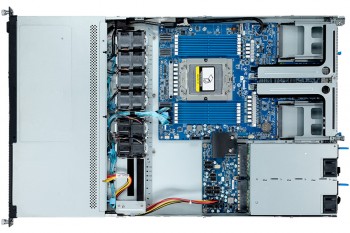

PHOTOS

R163-Z30-AAB1

MY CONFIGURATION

CPU

AMD EPYC 4th Gen Processor 9634 (2.25GHz,290W)

AMD EPYC 4th Gen Processor 9654P (2.40GHz,360W)

AMD EPYC 4th Gen Processor 9554P (3.10GHz,360W)

AMD EPYC 4th Gen Processor 9454P (2.75GHz,290W)

AMD EPYC 4th Gen Processor 9474F (3.60GHz,360W)

AMD EPYC 4th Gen Processor 9174F (4.10GHz,320W)

AMD EPYC 4th Gen Processor 9354P (3.25GHz,280W)

AMD EPYC 4th Gen Processor 9274F (3.40GHz,320W)

AMD EPYC 4th Gen Processor 9374F (3.85GHz,320W)

AMD EPYC 4th Gen Processor 9224 (2.50GHz,200W)

AMD EPYC 4th Gen Processor 9654 (2.40GHz,360W)

AMD EPYC 4th Gen Processor 9534 (2.45GHz,280W)

AMD EPYC 4th Gen Processor 9554 (3.10GHz,360W)

AMD EPYC 4th Gen Processor 9354 (3.25GHz,280W)

AMD EPYC 4th Gen Processor 9254 (2.50GHz,200W)

AMD EPYC 4th Gen Processor 9454 (3.75GHz,290W)

AMD EPYC 4th Gen Processor 9124 (3.00GHz,200W)

Added

AMD EPYC 4th Gen Processor 9334 (2.70GHz,210W)

MEMORY

Samsung 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Added

Micron 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Micron 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Samsung 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Micron 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Samsung 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

NVMe M.2

Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB

Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB

SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB

Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB

Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB

SAMSUNG PM9A3 M.2 Nvme SSD 960GB

SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB

Micron 7400 Pro NVMe M.2 (22x80) SSD 960GB

Micron 7400 Pro NVMe M.2 (22x110) SSD 1.92TB

Micron 7400 Pro NVMe M.2 (22x80) SSD 480GB

Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB

Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB

*No NVMe M.2 Drives

Added

Micron 7400 Pro NVMe M.2 (22x110) SSD 3.84TB

WD Black SN850 M.2 G4 NVMe SSD 500GB

WD Black SN850 M.2 G4 NVMe SSD 2TB

WD Black SN850 M.2 G4 NVMe SSD 1TB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB

Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB

Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB

Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB

Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB

Micron 7400 MAX NVMe M.2 (22x80) SSD 800GB

Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB

Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB

Micron 7400 MAX NVMe M.2 (22x80) SSD 400GB

(Optional) Enterprise-Class HDD/SSD

Micron 7400 MAX NVMe U.3 (7mm) SSD 6.4TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 18TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 20TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 22TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 20TB

Micron 7400 PRO NVMe U.3 (7mm) SSD 3.84TB

Micron 7400 PRO NVMe U.3 (7mm) SSD 7.68TB

Micron 7400 MAX NVMe U.3 (7mm) SSD 1.6TB

Micron 7400 PRO NVMe U.3 (7mm) SSD 1.92TB

Micron 7400 PRO NVMe U.3 (7mm) SSD 960GB

Micron 7400 MAX NVMe U.3 (7mm) SSD 800GB

Micron 7450 PRO NVMe U.3 (15mm) SSD 1.92TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 16TB

Micron 7400 MAX NVMe U.3 (7mm) SSD 3.2TB

Micron 7450 PRO NVMe U.3 (15mm) SSD 960GB

Micron 7450 PRO NVMe U.3 (15mm) SSD 3.84TB

Micron 7450 PRO NVMe U.3 (15mm) SSD 7.68TB

Micron 7450 PRO NVMe U.3 (15mm) SSD 15.36TB

Micron 7450 MAX NVMe U.3 (15mm) SSD 3.2TB

Micron 7450 MAX NVMe U.3 (15mm) SSD 1.6TB

Micron 7450 MAX NVMe U.3 (15mm) SSD 800GB

Micron 7450 MAX NVMe U.3 (15mm) SSD 6.4TB

Micron 7450 MAX NVMe U.3 (15mm) SSD 12.8TB

Samsung PM9A3 2.5" U.2 NVMe SSD 960GB

Samsung PM9A3 2.5" U.2 NVMe SSD 1.92TB

Samsung PM9A3 2.5" U.2 NVMe SSD 3.84TB

Samsung PM9A3 2.5" U.2 NVMe SSD 15TB

Samsung PM9A3 2.5" U.2 NVMe SSD 7.68TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 4TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 6TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB

Added

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 10TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 14TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 12TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 8TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 2TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 12TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 4TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 6TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 10TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 14TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 8TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 16TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 18TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB

NETWORK CARD

Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)

Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)

Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)

Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)

Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)

Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)

Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)

Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)

Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)

*No Network Card

Added

Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)

Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)

Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)

Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)

Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)

Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)

Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)

Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)

Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)

Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)

OPERATING SYSTEM

*Please contact our sales for more operating system options

Added

Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)

Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)

Fedora Linux Workstation Edition 64-bit (No Media)

CentOS Enterprise Linux (No Media) (32-Bit/64-bit)

Debian Linux (No Media) (32-Bit/64-Bit)

Microsoft Windows Server 2022 Standard 64-bit-1User

WARRANTY

*1 Year Parts Replacement Warranty

Added

3 Year Parts Replacement Warranty - Server Value $500 to $2000

3 Year Parts Replacement Warranty - Server Value $2001 to $4000

3 Year Parts Replacement Warranty - Server Value $4001 to $7000

3 Year Parts Replacement Warranty - Server Value $7001 to $10000

3 Year Parts Replacement Warranty - Server Value Over $10000

Please Inquire
