Supermicro 1U 12Bays Dual AMD Processor Rackmount Server

Dual AMD EPYC™ 7003/7002 Series Processors (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
Expansion slots: 2 PCI-E 4.0 x16 (FH, 9.5"L), 1 PCI-E 4.0 x16 (LP), 1 PCI-E 4.0 x16 (internal proprietary LP slot)
Integrated IPMI 2.0 + KVM with dedicated LAN, Software Out of Band License, key (SFT-OOB-LIC) included for OOB BIOS management
Dual-port 10GBase-T and Dual-port 10G SFP+ via Intel X710-TM4
Drive Bays: 12 Hot-swap 2.5" U.2 NVMe drive bays or SATA3/SAS3 (via optional SAS kit)
1200W Redundant Power Supplies Titanium Level (96%) (Full redundancy based on configuration and application load)
Virtualization, Cloud Computing, High End Enterprise Server

Storage configuration notice:
External:
12x 2.5" Hot-swap U.2 Drive Bays

To maintain quality and integrity, this product is sold only as a completely-assembled system (for optimal performance 16 DIMMs & at least 24/32 cores per CPU is recommended). Minimum requirement is 2 CPUs, 4 DIMMs, 1 storage drive.

SPECIFICATIONS

SKU	AS-1124US-TNRP

Processor

CPU：
Dual AMD EPYC™ 7003/7002 Series Processors
(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
Socket SP3
Supports CPU TDP up to 280W

Cores：
Up to 64 Cores

Note：
Certain CPUs with high TDP may be supported only under specific conditions. Please contact Technical Support for additional information about specialized system optimization

Memory

Memory Capacity：
32 DIMM slots
Supports up to 8TB Registered ECC DDR4 3200MHz SDRAM
8-channel memory bus

Memory Type：
DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs

DIMM Sizes：
4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB

Memory Voltage：
1.2V

Error Detection：
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

Chassis

1U Rackmount Chassis

Dimensions

Height:
1.7" (43mm)
Width:
17.2" (437mm)
Depth:
29.1" (739mm)

Front Panel

Buttons:
Power On/Off button
System UID button
LEDs:
Power LED
Hard drive activity LED
Network activity LEDs
UID LED

Bios	BIOS Type: AMI 128Mb SPI Flash EEPROM

Onboard Devices

Chipset:
System on Chip (SoC)

SATA:
SATA3 (6Gbps)

Network Connectivity:
Networking options provided via Ultra Riser card

IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Graphics:
ASPEED AST2500 BMC

HDD Drive Bays

Hot-swap:
12 Hot-swap 2.5" U.2 NVMe drive bays

HDD Backplane:
Supports 12 NVMe or 12 SAS3 HDD or 12 SATA3

Expansion Slots

2x PCI-E 4.0 x16 (FH/HL, 9.5"L)
1x PCI-E 4.0 x16 (LP)
1x PCI-E 4.0 x16 (internal proprietary LP slot)
(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)

Power Supply

1200W Redundant Power Supplies with PMBus
Total Output Power:
800W: 100 – 127Vac
1200W: 200 – 240Vac
1200W: 200 -240Vdc (for CCC only)
Dimension (W x H x L):
73.5 x 40 x 203 mm
Input:
100-127Vac / 9.8 - 7A / 50-60Hz
200-240Vac / 7.5 - 6A / 50-60Hz
200-240Vdc / 7.5 - 6A (for CCC only)
+12V:
Max: 66.7A / Min: 0A (100-127Vac)
Max: 100A / Min: 0A (200-240Vac)
Max: 100A / Min: 0A (200-240Vdc)
+12Vsb:
Max: 2.1A / Min: 0A
Output Type:
25 Pairs Gold Finger Connector
Certification:
Titanium Level

Input Output

NVMe:
12 NVMe ports (default)

LAN:
Dual-port 10GBase-T and Dual-port 10G SFP+ via Intel X710-TM4
1 RJ45 Dedicated IPMI LAN port

USB:
4 USB 3.0 ports
(2 rear + 1 Type A + 1 front)

VGA:
1 VGA port

SAS:
12 SAS3 ports support via optional SAS kit

SATA:
12 SATA3 ports support via optional kits

Others:
1 COM port (rear)
2 SATA DOM power connectors
TPM 2.0 header

Cooling

Fans:
8 Heavy duty fans with optimal fan speed control
Air Shroud:
1 Air Shroud

Operating Environment

RoHS:
RoHS Compliant

Environmental Spec.:
Operating Temperature:
10°C ~ 30°C (50°F ~ 86°F)
Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)

Details

PC Health Monitoring
CPU:
Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator

FAN:
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors

Temperature:
Monitoring for CPU and chassis environment
Thermal Control for fan connectors

PHOTOS

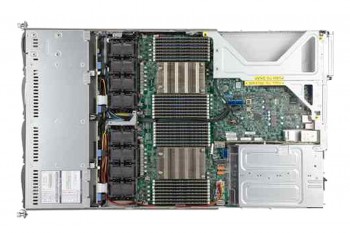

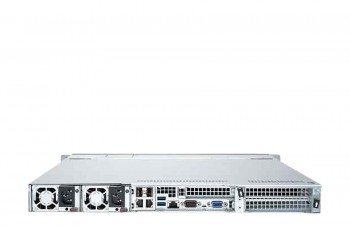

1124US-TNRP
