2024US-TRT

Please Inquire

Supermicro 2U 12Bays Dual Processor Rackmount Server

Dual AMD EPYC™ 7003/7002 Series Processors (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
3.Expansion slots:2 PCI-E 4.0 x16 (FH, 10.5" L) slots, 1 PCI-E 4.0 x16 (FH, 9.5" L) slot, 1 PCI-E 4.0 x16 (LP) slot, 1 PCI-E 4.0 x8 (FH, 9.5" L, in x16) slot, 1 PCI-E 4.0 x8 (internal proprietary LP in x16) slot
4.Integrated IPMI 2.0 + KVM with dedicated LAN, Software Out of Band License key (SFT-OOB-LIC) included for OOB BIOS management
Dual 10GBase-T LAN ports via Intel® X710-AT2
12 hot-swap 3.5" Drive Bays: 12 SATA3 by default or 8 SATA3 + 4 NVMe via optional tray or 12 SAS3 via optional SAS kit
1600W Redundant Power Supplies
Titanium Level (96%+)(Full redundancy based on configuration and application load)
Virtualization, Cloud Computing, High End Enterprise Server, Hyperconverged Storage, Flexible Networking Options

Storage configuration notice:
External:

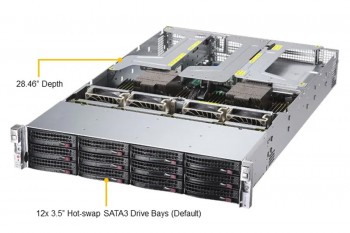

12x 3.5" Hot-swap Drive Bays

To maintain quality and integrity, this product is sold only as a completely-assembled system (for optimal performance 16 DIMMs is recommended). Minimum requirement is 2 CPUs, 4 DIMMs, 1 HDD/NVMe.

SPECIFICATIONS

SKU	AS-2024US-TRT

Processor

CPU:
Dual AMD EPYC™ 7003/7002 Series Processors
(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
Socket SP3
Supports CPU TDP up to 280W

Cores:
Up to 64 Cores

Chipset:
System on Chip (SoC)

Note:
Certain CPUs with high TDP higher than 225W may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization

Memory

Memory Capacity:
32 DIMM slots
Supports up to 8TB Registered ECC DDR4 3200MHz SDRAM
8-channel memory bus

Memory Type:
DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs

DIMM Sizes:
4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB

Memory Voltage:
1.2V

Error Detection:
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

Chassis

2U Rackmount chassis

Dimensions

Height:
3.5" (89mm)
Width:
17.2" (437mm)
Depth:
28.46" (723mm)

Front Panel

Buttons:
Power On/Off button
System Reset button

LEDs:
Power LED
Hard drive activity LED
2x Network activity LEDs
System Overheat LED / Fan fail LED /
UID LED

Bios	BIOS Type: AMI 128Mb SPI Flash EEPROM BIOS Features: Plug and Play (PnP) DMI 2.3 PCI 2.2 ACPI 5.1 USB Keyboard Support SMBIOS 3.1.1

Onboard Devices

SATA:
SATA3 (6 Gbps)
Graphics:
ASPEED AST2500 BMC

HDD Drive Bays

Hot-swap:
12 hot-swap 3.5" Drive Bays:
12 SATA3 by default
or 8 SATA3 + 4 NVMe via optional kit
or 12 SAS3 via optional SAS kit

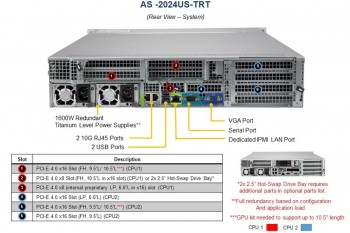

Expansion Slots

2 PCI-E 4.0 x16 (FH, 10.5" L) slots
1 PCI-E 4.0 x16 (FH, 9.5" L) slot
1 PCI-E 4.0 x16 (LP) slot
1 PCI-E 4.0 x8 (FH, 9.5" L, in x16) slot
1 PCI-E 4.0 x8 (internal proprietary LP in x16) slot
(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers.)

Power Supply

1600W Redundant Power Supplies with PMBus
Total Output Power:
1600W/1000W

Dimension (W x H x L):
73.5 x 40 x 203 mm

Input:
100-127Vac / 13 - 9A / 50-60Hz
200-240Vac / 10 - 8A / 50-60Hz

+12V:
Max: 83.3A / Min: 0A (100-127Vac)
Max: 133A / Min: 0A (200-240Vac)

12Vsb:
Max: 2.1A / Min: 0A

Output Type:
25 Pairs Gold Finger Connector

Certification:
Titanium Level

Input Output

SATA:
12 SATA3 (6 Gbps) ports

LAN:
Dual 10GBase-T LAN ports via Intel® X710-AT2
1 RJ45 Dedicated IPMI LAN port

USB:
3 USB 3.0 ports (2 rear + 1 Type A)

VGA:
1 VGA port

SAS:
12 SAS3 ports support via optional SAS kit

NVMe:
4 NVMe support via optional tray

Others:
1 COM port (rear)
2 SATA DOM power connector
TPM 1.2 header

Cooling

4 heavy-duty PWM fans with optimal fan speed control

Operating Environment

RoHS:
RoHS Compliant

Environmental Spec.:
Operating Temperature:
10°C to 35°C (50°F to 95°F)
Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)

Note:
Support for operating 35°C is available in certain system configurations. Contact sales rep or Technical Support for more details.

Details

PC Health Monitoring

CPU:

Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT

CPU switching voltage regulator

FAN:

Up to 8-fan status tachometer monitoring

Up to eight 4-pin fan headers

Status monitor for speed control

Pulse Width Modulated (PWM) fan connectors

Temperature:

Monitoring for CPU and chassis environment

CPU Thermal Trip Support

Thermal control for 8x Fan connectors

I²C Temperature Sensing Logic

LED:

CPU / System Overheat LED

Other Features

Chassis Intrusion Detection

Chassis Intrusion Header
