J2012-04-04X

Please Inquire

AIC 2U 12Bays Single SAS Expander JBOD

Ruggedized design (Internal board to board connection)
Short-depth
Tool-less design
Hot-swap expander modules, drives, PSU, fans
Clear front panel LED indicators
Optimized thermal solution
BMC onboard

SKU	J2012-04-04X

Details

General
Number of Expander:
Single

Dual(Optional)
Expander Chip:
LSI SAS4X40
Host/Expansion Interface :
4 x Mini SAS HD (SFF-8674) per expander module (backward compatible with SFF-8644 SAS12G)

Drives Supported
Drive Interface:
24Gb & 12Gb SAS if using dual expanders
24Gb & 12Gb SAS + 6Gb SAS/SATA if using single expander
Form Factor:
3.5"

Administration / Management
Admin/Firmware Upgrade:
In-band & Serial port interface
IEM port
LED Indicators, Audible Alarm: Yes

Hot swap & Redundancy
Drive Bays:
12 x hot swap
Cooling:
2 x 60x56mm hot swap fans
Power Supply:
550W 1+1 hot swap redundant power supply 80+ Platinum
800W 1+1 hot swap redundant power supply 80+ Titanium(Optional)
Power Entry:
Dual AC Inlet
Expander Modules:
Dual expanders (Optional)

Electrical & Environment
Platinum:
100~127V~, 50/60Hz, 7.0A
200~240V~, 50/60Hz, 3.5A
Titanium:
100-127V~,50/60Hz,10A
200-240V~,50/60Hz, 5A
Operating Environment:
Temperature : 0ºC to 35ºC
Relative humidity : 20% to 80%
Non-operating Environment:
Storage temperature : -20° ~ 60°C
System relative humidity : 10% - 90%

Dimensions (W x D x H):
mm: 438 x 385.45 x 88.2
inches: 17.2 x 15.2 x 3.5

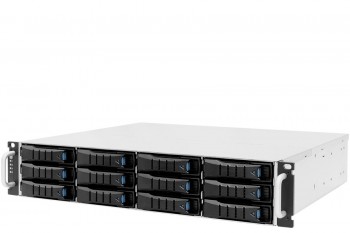

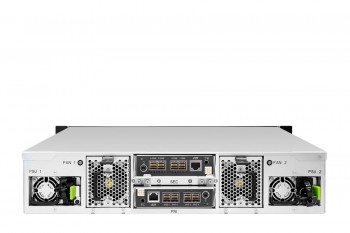

PHOTOS

J2012-04-04X

MY CONFIGURATION

Enterprise-Class HDD/SSD

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 10TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 12TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 8TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 6TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 14TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 16TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 18TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 4TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 16TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 20TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 18TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 22TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 20TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 6TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 4TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 8TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 10TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 12TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 14TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB

Added

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 2TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB

Server Optional Parts

SFF-8644-8644 2m/6ft DATA Cable

Added

WARRANTY

*1 Year Parts Replacement Warranty

Added

3 Year Parts Replacement Warranty - Server Value $500 to $2000

3 Year Parts Replacement Warranty - Server Value $2001 to $4000

3 Year Parts Replacement Warranty - Server Value $4001 to $7000

3 Year Parts Replacement Warranty - Server Value $7001 to $10000

3 Year Parts Replacement Warranty - Server Value Over $10000

Please Inquire
	ADD TO QUOTE
