J2024-07-04X

Please Inquire

AIC 2U 24Bays Single SAS Expander JBOD

Ruggedized design (Internal board to board connection)
Tool-less design
Hot-swap expander modules, drives, PSU, fans
Short-depth
Clear front panel LED indicators
Optimized thermal solution
BMC onboard

SKU	J2024-07-04X

Details

General
Number of Expander:
Single
Dual(Optional)
Expander Chip:
LSI SAS4X40
Host/Expansion Interface:
4 x Mini SAS HD (SFF-8674) per expander module (backward compatible with SFF-8644 SAS12G)

Drives Supported
Drive Interface :
24Gb &12Gb SAS if using dual expanders
24Gb & 12Gb SAS + 6Gb SAS/SATA if using single expander
Form Factor: SFF 2.5"

Administration / Management
Admin/Firmware Upgrade:
In-band & Serial port interface
IEM port
LED Indicators, Audible Alarm:
Yes

Hot swap & Redundancy
Drive Bays: 24 hot swap
Cooling:
2 x 60x56mm hot swap fans
Power Supply (options):
800W 1+1 hot swap redundant power supply 80+ Platinum
800W 1+1 hot swap redundant power supply 80+ Titanium(Optional)
Power Entry: Dual AC Inlet
Expander Modules: Dual expanders (Optional)

Electrical & Environment
Universal A/C Input:
100~127V~,50/60Hz, 7.0A
200~240V~,50/60Hz, 3.5A
Operating Environment:
Temperature : 0ºC to 35ºC
Relative humidity: 20% to 80%
Non-operating Environment:
Storage temperature : -20° ~ 60°C
System relative humidity: 10% - 90%

Physical Specification
Dimensions (W x D x H):
mm: 438 x 345 x 87.5
inches: 17.2 x 13.6 x 3.4

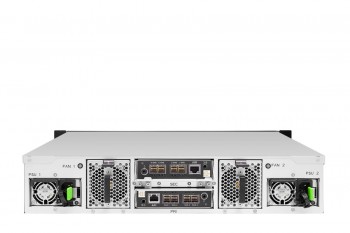

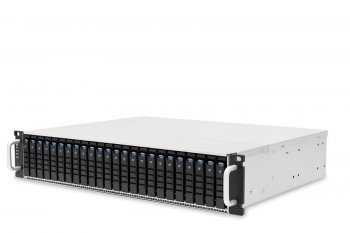

PHOTOS
