J4024-05-04X

$2,182.00

AIC 4U 24Bays Single SAS Expander JBOD

Ruggedized design (Internal board-to-board connection)
Short-depth
Tool-less design
Hot-swap expander modules, drives, PSU, fans
Clear front panel LED indicators
Optimized thermal solution
BMC onboard

SKU	J4024-05-04X

Details

General
Number of Expander:
Single
Dual(Optional)
Expander Chip:
LSI SAS4X40
Host/Expansion Interface:
4 x Mini SAS HD (SFF-8674) per expander module (backward compatible with SFF-8644 SAS12G)

Drives Supported
Drive Interface :
24Gb & 12Gb SAS if using dual expanders
24Gb & 12Gb SAS + 6Gb SAS/SATA if using single expander
Form Factor:
3.5"

Administration / Management
Admin/Firmware Upgrade:
In-band & Serial port interface
IEM port
LED Indicators, Audible Alarm:
Yes

Hot swap & Redundancy
Drive Bays:
24 hot swap
Cooling:
4 x 60x56mm hot-swap fans
Power Supply:
800W 1+1 hot-swap redundant power supply 80+ Platinum
800W 1+1 hot-swap redundant power supply 80+ Titanium
Power Entry: Dual AC Inlet
Expander Modules:
Dual expanders (Optional)

Electrical & Environment
Universal A/C Input:
100~127V~, 50/60Hz, 7.0A
200~240V~, 50/60Hz, 3.5A
Operating Environment:
Operating temperature : 0° - 35°C
System relative humidity : 20% - 80%
Non-operating Environment:
Storage temperature : -20° ~ 60°C
System relative humidity : 10% - 90%

Physical Specification
Dimensions (W x D x H):
mm: 438 x 385.5 x 174.4
inches: 17.2 x 15.1 x 6.9

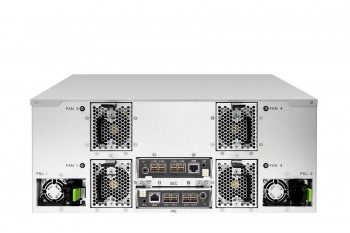

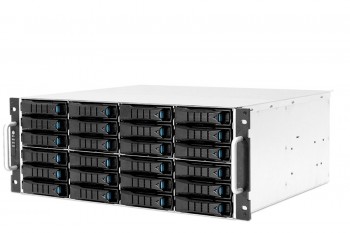

PHOTOS

J4024-05-04X

MY CONFIGURATION

Enterprise-Class HDD/SSD

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 18TB

+ $300.00

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 12TB

+ $220.00

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 8TB

+ $135.00

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 10TB

+ $202.00

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 4TB

+ $59.00

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 14TB

+ $260.00

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB

+ $120.00

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 18TB

+ $337.00

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 16TB

+ $270.00

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB

+ $173.00

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB

+ $307.00

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 6TB

+ $80.00

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB

+ $220.00

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB

+ $232.00

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 20TB

+ $361.00

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 16TB

+ $247.00

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB

+ $348.00

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 22TB

+ $435.00

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB

+ $448.00

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB

+ $355.00

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 20TB

+ $370.00

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB

+ $45.00

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB

+ $43.00

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 6TB

+ $92.00

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 4TB

+ $57.00

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB

Added

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB

+ $85.00

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 8TB

+ $132.00

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 10TB

+ $152.00

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 14TB

+ $219.00

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 12TB

+ $186.00

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB

+ $156.00

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB

+ $31.00

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB

+ $94.00

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB

+ $170.00

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB

+ $100.00

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB

+ $177.00

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB

+ $230.00

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB

+ $252.00

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB

+ $327.00

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 2TB

+ $18.00

WARRANTY

$2,182.00	ADD TO CART
	ADD TO QUOTE
