SYS-212H-TN

Please Inquire

Supermicro 2U 8Bays Single Processor Rackmount Server

Hyper is a flagship performance rackmount server designed for scale-out cloud workloads.
Single Intel® Xeon® 6 Processor.
16 DIMM slots supporting up to 1TB of memory (6700E series CPU).
Double width add-on card support.
Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible).
Breeze through high throughput workloads with PCIe 5.0 NVMe drive support.
Trusted Platform Module (TPM) 2.0 onboard.
Modularized and Tool-less design for easy serviceability.
Virtualization, Software-defined Storage, AI Inference and Machine Learning, Cloud Computing, Enterprise Server, Data Center Optimized, Database Processing and High Density Storage

Storage configuration notice:
8x 2.5" Drives

2x M.2 drive
To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 1 CPU, 1 DIMM, 1 Storage Device HDD/HDS/M.2 and 1 NIC) NIC requirement can be either AIOM or PCIe card.

SPECIFICATIONS

SKU	SYS-212H-TN

Processor

CPU:
Single Socket E2 (LGA-4710)
Intel® Xeon® 6 6700 series processors with E-cores

Core Count:
Up to 144C/144T; Up to 108MB Cache

Note:
Supports up to 330W TDP CPUs (Air Cooled)

Max GPU Count:
Up to 1 double-width or 2 single-width GPU(s)

CPU-GPU Interconnect:
PCIe 5.0 x16 CPU-to-GPU Interconnect

Memory

Slot Count: 16 DIMM slots
Max Memory (1DPC): Up to 1TB 6400MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 1TB 5200MT/s ECC DDR5 RDIMM

Chassis

2U Rackmount Chassis

Dimensions

Height:
3.5" (88.9 mm)
Width:
17.2" (437 mm)
Depth:
31.74" (806.2 mm)

Front Panel

LED:
HDD activity
LAN1 activity
Power status
System information

Buttons:
Power On/Off
UID button

Bios	BIOS Type: AMI 64MB SPI Flash

Onboard Devices

NVMe:
NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)

Chipset:
System on Chip

Network Connectivity:
Via AIOM

HDD Drive Bays

Drive Bays Configuration:

Default: Total 8 bay(s)

8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bay(s)

Option A: Total 16 bay(s)

8 front hot-swap 2.5" PCIe 5.0 x4 NVMe* drive bay(s)

8 front hot-swap 2.5" SAS*/SATA* drive bay(s)

Option B: Total 16 bay(s)

16 front hot-swap 2.5" SAS*/SATA* drive bay(s)

Option C: Total 24 bay(s)

24 front hot-swap 2.5" SAS*/SATA* drive bay(s)

(*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)

M.2:

2 M.2 NVMe slot(s) (M-key 2280/22110/25110; VROC required for RAID)

Expansion Slots

Option A
1 PCIe 5.0 x16 FHFL double-width slot(s)
1 PCIe 5.0 x16 FH/10.5"L double-width slot(s)
1 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)

Option B
1 PCIe 5.0 x16 FHFL double-width slot(s)
2 PCIe 5.0 x8 FH/10.5"L slot(s)
1 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)

Power Supply

2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL):
73.5 x 40 x 265 mm

AC Input:
800W: 100-127Vac / 50-60Hz
1200W: 200-240Vac / 50-60Hz
1200W: 230-240Vdc / 50-60Hz (for CCC only)

+12V:
Max: 66.7A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vac-240Vac)
Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)

12V SB:
Max: 2.1A / Min: 0A

Output Type:
Backplanes (gold finger)

Input Output

LAN:
1 RJ45 1 GbE Dedicated BMC LAN port(s)

USB:
2 USB 3.0 port(s) (rear)

Video:
1 VGA port(s)

Cooling

Fans:
6 counter-rotating 60x60x56mm Fan(s)

Air Shroud:
1 CPU Air Shroud(s)

Operating Environment

Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)

Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)

Operating Relative Humidity: 8% to 90% (non-condensing)

Non-operating Relative Humidity: 5% to 95% (non-condensing)

Details

Management
Software:
SuperCloud Composer
Supermicro Server Manager (SSM)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Power configurations:
Power-on mode for AC power recovery
ACPI Power Management

Security
Hardware:
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features:
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown

PC Health Monitoring
CPU:
Monitors for CPU Cores, Chipset Voltages, Memory
FAN:
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for fan connectors

PHOTOS

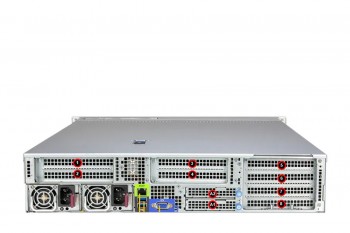

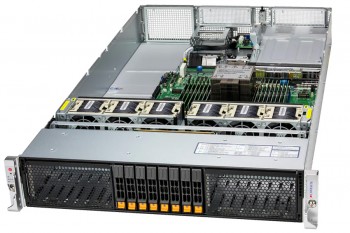

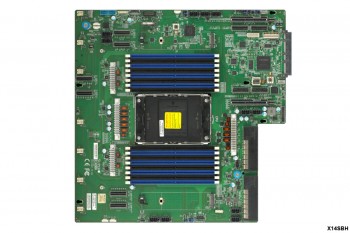

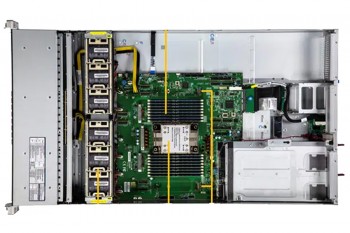

SYS-212H-TN
