SYS-112C-TN

Please Inquire

Supermicro 1U 8Bays Single Processor Rackmount Server

All-in-one platform for cloud data centers, based on the OCP Data Center Modular Hardware System (DC-MHS) with flexible I/O and storage configurations
Based on Modular Scalable DeNsity Optimized HPM Form Factor (M-SDNO)
Support DC-SCM module with OpenBMC
Single Intel® Xeon® 6 6700 series processor with E-cores
16 DIMM slots supporting up to 1TB of memory (6700E series CPU)
Support FH DPU and single slot GPU
Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible).
Breeze through high throughput workloads with PCIe 5.0 NVMe drive support
Trusted Platform Module (TPM) 2.0 onboard
Virtualization, HPC, CDN, Edge Nodes, Cloud Computing, Data Center Optimized, Storage Headnode

Storage configuration notice:
8x 2.5" Drives

2x M.2 drive
To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 1 CPU, 1 DIMM, 1 Storage Device HDD/HDS/M.2 and 1 NIC) NIC requirement can be either AIOM or PCIe card.

SPECIFICATIONS

SKU	SYS-112C-TN

Processor

CPU:
Single Socket E2 (LGA-4710)
Intel® Xeon® 6 6700 series processors with E-cores
Core Count:
Up to 144C/144T; Up to 108MB Cache
Note:
Supports up to 350W TDP CPUs (Air Cooled)

GPU
Max GPU Count:
Up to 2 single-width GPU(s)
CPU-GPU Interconnect:
PCIe 5.0 x16 CPU-to-GPU Interconnect

Memory

Slot Count: 16 DIMM slots/8 Channels
Max Memory (1DPC): Up to 1TB 6400MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 1TB 5200MT/s ECC DDR5 RDIMM

Chassis

1U Rackmount Chassis

Dimensions

Height:
1.7" (43 mm)
Width:
17.2" (437 mm)
Depth:
29.4" (747 mm)

Front Panel

LED:
HDD activity
LAN1 activity
LAN2 activity
Power Failed LED
Power status
System information

Buttons:
Power On/Off button
UID button

Bios	BIOS Type: AMI 32MB SPI Flash EEPROM

Onboard Devices

NVMe:
NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)

Chipset:
System on Chip

Network Connectivity:
Via Slim-AIOM

HDD Drive Bays

Drive Bays Configuration:

Default: Total 8 bay(s)

8 front hot-swap 2.5" PCIe 5.0 NVMe/SAS*/SATA* drive bay(s)

Option A: Total 12 bay(s)

8 front hot-swap 2.5" PCIe 5.0 NVMe*/SAS*/SATA* drive bay(s)

4 front hot-swap 2.5" SAS*/SATA* drive bay(s)

(*NVMe/SAS/SATA support may require additional storage controller and/or cables, please contact us for details)

M.2:

2 M.2 PCIe 5.0 x2 NVMe slot(s) (M-key 2280(default)/22110; VROC required for RAID)

Expansion Slots

Default
2 PCIe 5.0 x16 FHHL slot(s)
1 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)

Power Supply

2x 1000W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL):
73.5 x 40 x 185 mm

AC Input:
800W: 100-127Vac / 50-60Hz
1000W: 200-240Vac / 50-60Hz

+12V:
Max: 66.7A (100Vac-127Vac)
Max: 83A (200Vac-240Vac)

12V SB:
Max: 2.1A

Output Type:
Backplanes (gold finger)

Certification:
Titanium Level

Input Output

LAN:
1 RJ45 1 GbE Dedicated BMC LAN port(s)

USB:
2 USB 3.2 Gen1 Type-A port(s) (rear)

Video:
1 Mini-DP port(s) (Rear)

TPM:
1 TPM header

Cooling

8 Counter-Rotating PWM 40x40x56mm Fan(s)

Operating Environment

Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
Operating Relative Humidity: 8% to 80% (non-condensing)
Non-operating Relative Humidity: 8% to 90% (non-condensing)

Details

Management
Software:
SuperCloud Composer
Supermicro Server Manager (SSM)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Power configurations:
ACPI/APM Power Management

Security
Hardware:
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features:
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown

PC Health Monitoring
CPU:
Monitors for CPU Cores, Chipset Voltages, Memory
FAN:
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for fan connectors

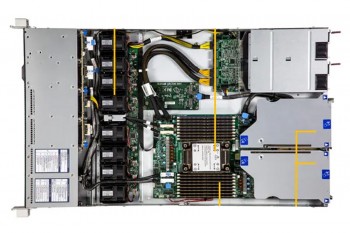

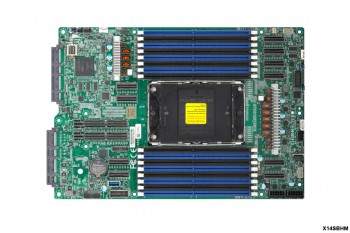

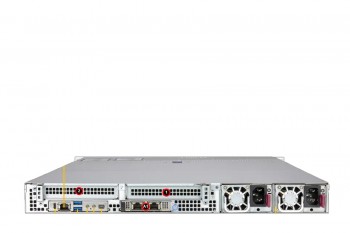

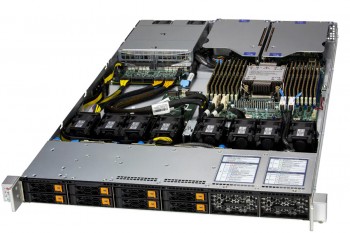

PHOTOS
