SYS-821GE-TNHR

$590,272.00

Supermicro 8U 15Bays Dual Processor Rackmount Server

Supports up to 350W TDP CPUs (Air Cooled)
Supports up to 385W TDP CPUs (Liquid Cooled)
Default 10 heavy duty fans with optimal fan speed control
optional Liquid Cooling:
Direct to Chip (D2C) Cold Plate

5th/4th Gen Intel® Xeon® Scalable processor support
32 DIMM slots Up to 8TB: 32x 256 GB DRAM Memory Type: 5600MTs ECC DDR5
8 PCIe Gen 5.0 X16 LP, 2 PCIe Gen 5.0 X16 FHHL Slots, 2 PCIe Gen 5.0 X16 FHHL Slots (optional)
Flexible networking options
2 M.2 NVMe for boot drive only, 16x 2.5" Hot-swap NVMe drive bays (12x by default, 4x optional), 3x 2.5" Hot-swap SATA drive bays, Optional: 8x 2.5" Hot-swap SATA drive bays
10 heavy duty fans with optimal fan speed control
Optional: 8x 3000W (4+4) Redundant Power Supplies, Titanium Level 6x 3000W (4+2) Redundant Power Supplies, Titanium Level
High Performance Computing, AI/Deep Learning Training, Industrial Automation, Retail, Healthcare, Conversational AI, Business Intelligence & Analytics, Drug Discovery, Climate and Weather Modeling, Finance & Economics

To maintain quality and integrity, this product is sold only as a completely-assembled system

System (SKU) SYS-821GE-TNHR
Processor Spec 2x Intel® Xeon® EMR 8568Y+ 2P 48C 2.3G 350W
GPU 8x NVIDIA H200 141GB SXM5
Memory 3 TB (32x 96 GB DDR5)
Storage 30.4 TB raw capacity (8x 3.8 TB NVMe SSDs)
Boot Drives 2x 480 GB M.2 SSD
Networking 10x 400G HDR IB CX7 NICs
Or 8x 400Gb IB and 2x 400Gb/200Gb ethernet

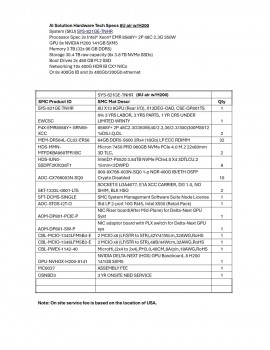

	SYS-821GE-TNHR (8U air w/H200)
SMC Product ID	SMC Mat Descr	Qty

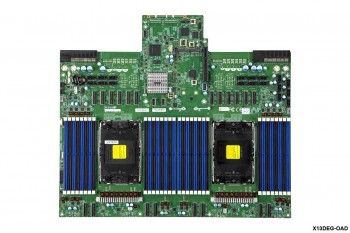

SYS-821GE-TNHR	8U X13 8GPU (Rear I/O), X13DEG-OAD, CSE-GP801TS	1
EWCSC	0% 3 YRS LABOR, 3 YRS PARTS, 1 YR CRS UNDER LIMITED WRNTY	1
P4X-EMR8568Y+-SRN59-XCC	8568Y+ 2P 48C2.3G350W(40/2.2,36/2.3/300)300MS512 1xDS.I.Q.DL	2
MEM-DR564L-CL02-ER56	64GB DDR5-5600 2Rx4 (16Gb) LP ECC RDIMM	32
HDS-MMN-MTFDKBA960TFR1BC	Micron 7450 PRO 960GB NVMe PCIe 4.0 M.2 22x80mm 3D TLC,	2
HDS-IUN0-SSDPF2KX038T1	IntelD7-P5520 3.84TB NVMe PCIe4.0 X4 3DTLCU.2 15mm<2DWPD	8
AOC-CX766003N-SQ0	900-9X766-003N-SQ0 1-p NDR 400G IB/ETH OSFP Crypto Disabled	10
SKT-1333L-0001-LTS	SOCKET E LGA4677, E1A XCC CARRIER, DG 1.0, NO SHIM, BLK HSG	2
SFT-DCMS-SINGLE	SMC System Management Software Suite Node License	1
AOC-STGS-I2T-O	Std LP 2-port 10G RJ45, Intel X550 (Retail Pack)	1
AOM-DP801-PCIE-P	NIC Riser board(After Mid-Plane) for Delta-Next GPU Syst	1
AOM-DP801-SW-P	NIC adaptor board with PLX switch for Delta-Next GPU sys	1
CBL-MCIO-1342LFM5B4-E	2 MCIO x8 (LF/STR to STR),42Y/41Wcm,32AWG,RoHS	1
CBL-MCIO-1348LFM5B3-E	2 MCIO x8 (LF/STR to STR),48B/44Wcm,32AWG,RoHS	1
CBL-PWEX-1142-40	MicroHi,(2x4 to 2x4),PH3.0,40CM,8A/pin,18AWG,RoHS	1

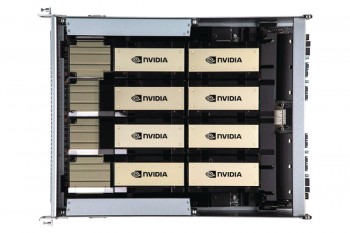

GPU-NVHGX-H200-8141	NVIDIA DELTA-NEXT (HGX) GPU Baseboard, 8 H200 141GB SXM5	1
MC0037	ASSEMBLY FEE	1
OSNBD3	3 YR ONSITE NBD SERVICE	1

SPECIFICATIONS

SKU	SYS-821GE-TNHR

Processor

CPU:
Dual Socket E (LGA-4677)
5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors

Core Count:
Up to 64C/128T; Up to 320MB Cache per CPU

Note:
Supports up to 350W TDP CPUs (Air Cooled)
Supports up to 385W TDP CPUs (Liquid Cooled)

Max GPU Count:
Up to 8 onboard GPU(s)

Supported GPU:
NVIDIA SXM: HGX H100 8-GPU (80GB)

CPU-GPU Interconnect:
PCIe 5.0 x16 CPU-to-GPU Interconnect

GPU-GPU Interconnect:
NVIDIA® NVLink® with NVSwitch™

Certification:
NVIDIA CERTIFIED

Memory

Memory:
Slot Count: 32 DIMM slots
Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM

Memory Voltage:
1.1V

Chassis

8U Rackmount Chassis

Dimensions

Height:
14" (355.6 mm)
Width:
17.2" (437 mm)
Depth:
33.2" (843.28 mm)

Front Panel

LED:
Hard drive activity LED
Network activity LEDs
Power status LED
System Overheat & Power Fail LED

Buttons:
Power On/Off button
System Reset button

Bios	BIOS Type: AMI 32MB SPI Flash EEPROM

Onboard Devices

Chipset:
Intel® C741

Network Connectivity:
2 RJ45 10GbE with Intel® X550-AT2 (optional)
2 SFP28 25GbE with Broadcom® BCM57414 (optional)
2 RJ45 10GbE with Intel® X710-AT2 (optional)

NVMe

HDD Drive Bays

Drive Bays Configuration:
Default: Total 15 bay(s)
12 front hot-swap 2.5" NVMe drive bay(s)
3 front hot-swap 2.5" SATA drive bay(s)
Option A: Total 19 bay(s)
12 front hot-swap 2.5" NVMe drive bay(s)
4 front hot-swap 2.5" NVMe drive bay(s)
3 front hot-swap 2.5" SATA drive bay(s)
(NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)

M.2:
2 M.2 NVMe slot(s) (M-key)

Expansion Slots

PCI-Express (PCIe) Configuration:
Default
8 PCIe 5.0 x16 LP slot(s)
2 PCIe 5.0 x16 FHHL slot(s)

Power Supply

1x 3000W Redundant Titanium Level power supply
Dimension (WxHxL):
106.5 x 82.1 x 245.5 mm

+12V:
Max: 91.66A / Min: 0A (200Vac-240Vac)

12V SB:
Max: 3A / Min: 0A

AC Input:
3000W: 207-240Vac / 50-60Hz

Output Type:
Backplanes (gold finger)

Input Output

Video:
1 VGA port(s)

Cooling

Fans:
10 heavy duty fans with optimal fan speed control

Liquid Cooling:
Direct to Chip (D2C) Cold Plate (optional)

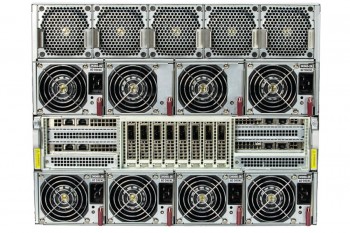

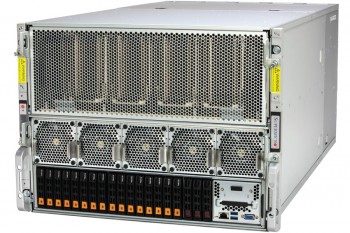

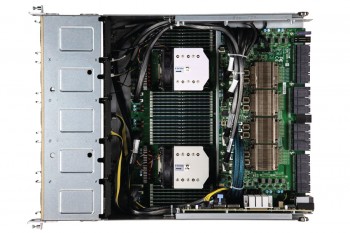

PHOTOS

SYS-821GE-TNHR

MY CONFIGURATION

CPU

Intel® Xeon® Scalable 5th Gen Platinum Processor 8568Y (2.30 Ghz 350W)

Added

MEMORY

Samsung 96GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)

Added

NVMe U.2/U.3

Intel D7-P5520 NVMe U.2 SSD 3.84TB

Added

NETWORK CARD

NVIDIA 900-9X766-003N-SQ0 1-Port ConnectX-7 400G Network Adapter

Added

GPU/Coprocessor

NVIDIA H200 141GB HBM3e GPU Card

Added

OPERATING SYSTEM

*Please contact our sales for more operating system options

Added

Debian Linux (No Media) (32-Bit/64-Bit)

+ $99.00

Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)

+ $99.00

Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)

+ $99.00

CentOS Enterprise Linux (No Media) (32-Bit/64-bit)

+ $99.00

Fedora Linux Workstation Edition 64-bit (No Media)

+ $99.00

Microsoft Windows Server 2025 Standard 64-bit-1User

+ $1,299.00

Ethernet Adapter

Supermicro AOC-STGS-I2T-O x550-AT2 2-Port 10GbE PCI-E 3.0 Ethernet Card

Added

YMI WARRANTY

3 YR ONSITE NBD SERVICE

Added

$590,272.00	ADD TO CART
