GC68AB7136

Please Inquire

OVERVIEW

Mitac 1U 12Bays Dual Processor Rackmount Server

2S Intel Emerald Rapids / Sapphire Rapids CPU
16x DIMM slots with DDR5-4800 memory support
8x NVMe U.2 + 4 2.5" SATA hot-swap, tool-less drive bays
2x FH/HL PCIe 5.0 x16 slots
PCIe 5.0 x16 OCP v3.0 LAN mezzanine slot
2x NVMe M.2 2280 slots
1x dedicate 1000Base-T IPMI port
(1+1) RPSU

Storage configuration notice:
8x 2.5" NVMe U.2 drive

4x 2.5" SATA Drive

SPECIFICATIONS

SKU	B7136G68AV4E8HR

Processor

Q'ty / Socket Type:
2x LGA4677

Supported CPU Series:
4th Gen. Intel Xeon Scalable Processors / 5th Gen. Intel Xeon Scalable Processors

Thermal Design Power Wattage:
Max up to 270W (TDP)

Memory

Supported DIMM Qty:
(8)+(8) DIMM slots

DIMM Type / Speed:
RDIMM / RDIMM-3DS DDR5 4800 MHz (1DPC) / 4400MHz (2DPC) - 4th Gen. / RDIMM / RDIMM-3DS DDR5 5600 MHz (1DPC) / 4400MHz (2DPC) - 5th Gen.

Capacity:
Up to 2,048GB RDIMM/3DS RDIMM DDR5 5600/4800/4400 *Follow latest Intel DDR5 Memory POR

Memory channel:
8 Channels per CPU

Memory voltage:
1.1V

Chassis

1U Rackmount Chassis

Dimensions

D x W x H:
26.77" x 17.26" x 1.69" (680 x 438.5 x 43mm)

Front Panel

Buttons:
(1) ID / (1) PWR w/ LED

LEDs:
(1) ID / (1) PWR

I/O Ports:
(1) USB 3.2 Gen.1 port

Bios	Brand / ROM size: AMI / 64MB Feature: Hardware Monitor / FAN speed control automatic / Boot from USB device/PXE via LAN/Storage / Console Redirection / SMBIOS 3.3/PnP/Wake on LAN / ACPI 6.0 / ACPI sleeping states S0, S5

Onboard Devices

LAN
Q'ty / Port:
(1) GbE dedicated for IPMI
PHY:
Realtek RTL8211F

Storage SATA
Connector:
(4) SATA
Controller:
Intel C741
Speed:
6Gb/s
RAID:
RAID 0/1/10/5 (Intel RSTe)

Storage NVMe
Connector (M.2):
(2) 2280 (by PCIe 4.0 interface)
Connector (U.2):
(8) MCIO x4

Graphic
Connector type:
D-Sub 15-pin
Resolution:
Up to 1920x1200
Chipset:
Aspeed AST2600

HDD Drive Bays

Q'ty / Type:
(4) 2.5" Hot-Swap HDD/SSDs / (8) 2.5" Hot-Swap NVMe HDD/SSDs

Front Drive Bay Interface:
(4) SATA 6Gb/s / SAS 12Gb/s / (8) NVMe U.2

Front HDD Backplane Support:
SAS 12Gb/s /SATA 6Gb/s /NVMe

Notification:
The SAS/SATA HDD backplane is connected to onboard SATA connection by default. Please contact technical support if a discrete SAS HBA/RAID adapter is required.

Expansion Slots

PCIe:
(2) PCIe Gen 5 x16 slots

Pre-installed TYAN Riser Card (PCIe Gen.5):
(1) M7136G68-L16-1F riser card for (1) FH/HL PCIe Gen.5 x16 slot (Left) / (1) M7136G68-R16-1F riser card for (1) FH/HL PCIe Gen.5 x16 slot (Right)

Others:
(1) PCIe Gen.5 x16 OCP 3.0 mezzanine slot

Power Supply

Type:
RPSU

Input Range:
AC 100-240V/12-6A

Frequency:
50/60 Hz

Output Watts:
850 Watts

Efficiency:
80 plus Platinum

Redundancy:
1+1

Input Output

USB:
(2) USB3.2 Gen.1 ports (@ rear)

COM:
(1) DB-9 COM port

VGA:
(1) D-Sub 15-pin port

RJ-45:
(1) GbE port dedicated for IPMI

Button:
ID Button

Cooling

(2) 4028 fans / (4) 4056 fans

Operating Environment

Operating Temp.:
10° C ~ 35° C (50° F~ 95° F)

Non-operating Temp.:
- 40° C ~ 70° C (-40° F ~ 158° F)

In/Non-operating Humidity:
90%, non-condensing at 35° C

Details

System Monitoring
Chipset:
Aspeed AST2600
Temperature:
Monitors temperature for CPU & memory & system environment
Voltage:
Monitors voltage for CPU, memory, chipset & power supply
LED:
Over temperature warning indicator / Fan & PSU fail LED indicator / Over voltage warning indicator
Others:
Watchdog timer support

Server Management
Onboard Chipset:
Onboard Aspeed AST2600
AST2600 iKVM Feature:
24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2600 IPMI Feature:
IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface

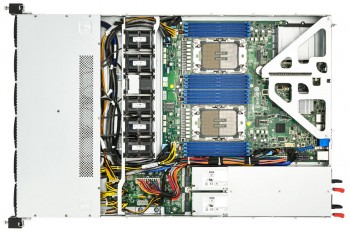

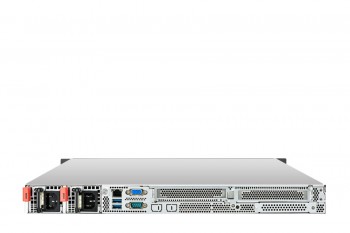

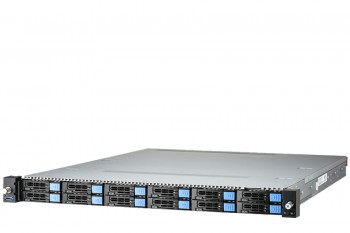

PHOTOS

GC68AB7136

MY CONFIGURATION

CPU

Intel® Xeon® Scalable 4th Gen Gold Processor 6428N (1.80 GHz 185W)

Intel® Xeon® Scalable 5th Gen Bronze Processor 3508U (2.10 Ghz 125W)

Intel® Xeon® Scalable 5th Gen Silver Processor 4510T (2.00 Ghz 115W)

Intel® Xeon® Scalable 4th Gen Platinum Processor 8444H (2.90 GHz 270W)

Intel® Xeon® Scalable 4th Gen Platinum Processor 8450H (2.00 GHz 250W)

Intel® Xeon® Scalable 4th Gen Platinum Processor 8454H (2.10 GHz 270W)

Intel® Xeon® Scalable 4th Gen Gold Processor 5411N (1.90 GHz 165W)

Intel® Xeon® Scalable 4th Gen Gold Processor 5418N (1.80 GHz 165W)

Intel® Xeon® Scalable 4th Gen Gold Processor 5416S (2.00 GHz 150W)

Intel® Xeon® Scalable 5th Gen Silver Processor 4509Y (2.60 Ghz 125W)

Intel® Xeon® Scalable 4th Gen Gold Processor 6421N (1.80 GHz 185W)

Intel® Xeon® Scalable 4th Gen Gold Processor 6426Y (2.50 GHz 185W)

Intel® Xeon® Scalable 4th Gen Silver Processor 4410T (2.70 GHz 150W)

Intel® Xeon® Scalable 4th Gen Gold Processor 6438Y (2.00 GHz 205W)

Intel® Xeon® Scalable 4th Gen Silver Processor 4416+ (2.00 GHz 165W)

Intel® Xeon® Scalable 4th Gen Gold Processor 6448H (2.40 GHz 250W)

Intel® Xeon® Scalable 4th Gen Gold Processor 6430 (2.10 GHz 270W)

Intel® Xeon® Scalable 4th Gen Silver Processor 4410Y (2.00 GHz 155W)

Intel® Xeon® Scalable 5th Gen Gold Processor 6542Y (2.90 Ghz 250W)

Intel® Xeon® Scalable 5th Gen Gold Processor 6548N (2.80 Ghz 250W)

Intel® Xeon® Scalable 5th Gen Gold Processor 6554S (2.20 Ghz 270W)

Intel® Xeon® Scalable 5th Gen Gold Processor 6548Y+ (2.50 Ghz 250W)

Intel® Xeon® Scalable 5th Gen Gold Processor 6538N (2.10 Ghz 205W)

Intel® Xeon® Scalable 5th Gen Gold Processor 6534 (3.90 Ghz 195W)

Intel® Xeon® Scalable 5th Gen Gold Processor 6538Y+ (2.10 Ghz 205W)

Intel® Xeon® Scalable 5th Gen Gold Processor 6544Y (3.60 Ghz 270W)

Intel® Xeon® Scalable 5th Gen Gold Processor 6530 (2.10 Ghz 270W)

Intel® Xeon® Scalable 5th Gen Platinum Processor 8581V (2.00 Ghz 270W)

Intel® Xeon® Scalable 5th Gen Gold Processor 6526Y (2.80 Ghz 195W)

Intel® Xeon® Scalable 5th Gen Gold Processor 5520+ (2.20 Ghz 205W)

Intel® Xeon® Scalable 5th Gen Gold Processor 5515+ (3.20 Ghz 165W)

Intel® Xeon® Scalable 5th Gen Gold Processor 5512U (2.10 Ghz 185W)

Intel® Xeon® Scalable 5th Gen Silver Processor 4516Y+ (2.20 Ghz 185W)

Intel® Xeon® Scalable 5th Gen Silver Processor 4514Y (2.00 Ghz 150W)

Intel® Xeon® Scalable 5th Gen Silver Processor 4510 (2.40 Ghz 150W)

Added

MEMORY

Micron 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Samsung 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Samsung 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Micron 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Samsung 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Micron 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Samsung 16GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)

Added

Samsung 32GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)

Samsung 64GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)

Samsung 96GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)

Enterprise-Class HDD/SSD

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB

Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB

Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB

Samsung PM897 2.5" SATA 6Gb/s SSD 960GB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB

Added

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB

Samsung PM893 2.5" SATA 6Gb/s SSD 240GB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB

Samsung PM893 2.5" SATA 6Gb/s SSD 960GB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB

Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB

Samsung SM883 2.5" SATA III SSD 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB

NVMe M.2

Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB

Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB

*No NVMe M.2 Drives

Added

Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB

Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB

Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB

Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB

Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB

Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB

Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB

WD Black SN850 M.2 G4 NVMe SSD 2TB

Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB

SAMSUNG PM9A3 M.2 Nvme SSD 960GB

Samsung 990 EVO MZ-V9E2T0B/AM M.2 NVMe SSD 2TB

WD Black SN850 M.2 G4 NVMe SSD 1TB

WD Black SN850 M.2 G4 NVMe SSD 500GB

SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB

SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB

Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB

Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB

Samsung 990 PRO MZ-V9P4T0B/AM M.2 NVMe SSD 4TB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB

Samsung 980 EVO MZ-V8V500B/AM M.2 NVMe SSD 500GB

Samsung 980 EVO MZ-V8V250B/AM M.2 NVMe SSD 250GB

Samsung 980 EVO MZ-V8V1T0B/AM M.2 NVMe SSD 1TB

Samsung 990 EVO MZ-V9E1T0B/AM M.2 NVMe SSD 1TB

NVMe U.2/U.3

Samsung PM9A3 2.5" U.2 NVMe SSD 1.92TB

Samsung PM9A3 2.5" U.2 NVMe SSD 960GB

Samsung PM9A3 2.5" U.2 NVMe SSD 15TB

Samsung PM9A3 2.5" U.2 NVMe SSD 3.84TB

Samsung PM9A3 2.5" U.2 NVMe SSD 7.68TB

Intel D7-P5520 NVMe U.2 SSD 3.84TB

NETWORK CARD

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)

Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)

Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)

Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)

Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)

Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)

Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)

Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)

Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)

Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)

Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)

Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)

Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)

NVIDIA 900-9X766-003N-SQ0 1-Port ConnectX-7 400G Network Adapter

Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)

Supermicro AOC-A100G-M2CM ConnectX-6 Dx 100GbE Network Card

Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)

Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)

Supermicro AOC-STGS-I2T-O x550-AT2 2-Port 10GbE PCI-E 3.0 Ethernet Card

Broadcom BCM957508-N2100G Dual-Port 100 Gb/S (QSFP56/28) Network Adapter

*No Network Card

Added

Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)

Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)

Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)

Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)

OPERATING SYSTEM

*Please contact our sales for more operating system options

Added

Debian Linux (No Media) (32-Bit/64-Bit)

CentOS Enterprise Linux (No Media) (32-Bit/64-bit)

Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)

Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)

Fedora Linux Workstation Edition 64-bit (No Media)

Microsoft Windows Server 2022 Standard 64-bit-1User

WARRANTY

*1 Year Parts Replacement Warranty

Added

3 Year Parts Replacement Warranty - Server Value $500 to $2000

3 Year Parts Replacement Warranty - Server Value $2001 to $4000

3 Year Parts Replacement Warranty - Server Value $4001 to $7000

3 Year Parts Replacement Warranty - Server Value $7001 to $10000

3 Year Parts Replacement Warranty - Server Value Over $10000

Please Inquire
	ADD TO QUOTE

4611

0.0000
