AS-2015SV-WTNRT

Please Inquire

Supermicro 2U 12Bays Single AMD Processor Rackmount Server

Single Socket AMD EPYC™ 8004 Series Processor
6x DIMM slots, DDR5-4800MHz memory, support up to 576GB
2x PCIe 5.0 x16 FHFL;
2x PCIe 5.0 x 8 LP, Supports up to 1 double-width or 2 single-width GPU(s)
Single dedicated IPMI LAN, dual 10GbE BaseT LAN ports via Broadcom BCM57416 Controller
12 hot-swap 3.5"/2.5" SATA(default)/SAS drive bays or 6 SATA/NVMe hybrid + 6 SATA drive bays (optional cables or SAS controller card for NVMe and SAS drive bays)
Virtualization, Data Center Optimized, Firewall Applications, Database/Storage, Edge/Cloud Computing Services

Storage configuration notice:
12x 3.5" drive

2x M.2 drive

SKU	AS-2015SV-WTNRT

Processor

CPU:
Single processor(s)
AMD EPYC™ 8004 Series Processor
Core Count:
Up to 64C/128T
Note:
Supports up to 225W TDP CPUs (Air Cooled)

GPU
Max GPU Count:
Up to 1 double-width or 2 single-width GPUs
Supported GPU:
NVIDIA PCIe: T400, RTX 4000 Ada Generation

Memory

Memory:
Slot Count: 6 DIMM slots
Max Memory (1DPC): Up to 576GB 4800MT/s ECC DDR5 RDIMM

Memory Voltage:
1.1V

Chassis

2U Rackmount Chassis

Dimensions

Height:
3.5" (89 mm)
Width:
17.2" (437 mm)
Depth:
25.6" (650 mm)

Front Panel

LED:
Device Activity
LAN 1 Activity
LAN 2 Activity
Power Failure LED
Power status
System information

Buttons:
Power On/Off
System Reset

Bios	BIOS Type: AMI 32MB SPI Flash EEPROM BIOS Features: ACPI 6.4 Plug and Play (PnP) SMBIOS 3.5 or later UEFI 2.8 USB Keyboard support

Onboard Devices

Chipset:
System on Chip

Network Connectivity:
2 RJ45 10GBASE-T with Broadcom® BCM57416

HDD Drive Bays

Drive Bays Configuration:
Default: Total 12 bays
12 front hot-swap 3.5" SATA drive bays
Option A: Total 12 bays
6 front hot-swap 3.5"/2.5" PCIe 5.0 NVMe/SATA drive bays
6 front hot-swap 3.5"/2.5" SATA drive bays
Option B: Total 12 bays
12 front hot-swap 2.5" SAS drive bays
(NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)

M.2:
2 M.2 PCIe 3.0 x4 NVMe slots (M-key 2280/22110)

Expansion Slots

PCI-Express (PCIe) Configuration:
Default
2 PCIe 5.0 x16 FHFL slots
2 PCIe 5.0 x8 LP slots

M.2:
2 M.2 PCIe 4.0 x4 NVMe slots (M-key)

Power Supply

2x 800W Redundant Titanium Level (96%) power supplies
Dimension (WxHxL):
76 x 40 x 336 mm

Input:
800W: 100-240Vac / 50-60Hz
800W: 200-240Vdc / 50-60Hz

+12V:
Max: 66A / Min: 0A (100Vac-240Vac)
Max: 66A / Min: 0A (200Vdc-240Vdc)

5V SB:
Max: 4A / Min: 0A

Output Type:
Backplanes (gold finger)

Input Output

LAN:
1 RJ45 1 GbE Dedicated BMC LAN port
2 RJ45 10 GBASE-T LAN ports

USB:
4 ports(rear)

Video:
1 VGA port

Serial:
1 COM port(Rear)

TPM:
1 TPM Onboard/port 80

Cooling

3 Heavy duty PWM 80x80x38mm Fan(s)

Operating Environment

Environmental Spec.:
Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
Operating Relative Humidity: 8% to 80% (non-condensing)
Non-operating Relative Humidity: 8% to 90% (non-condensing)

Details

Management
Software:
SuperCloud Composer
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Power configurations:
1U redundant 800W Titanium AC Power Supply

Security
Hardware:
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features:
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown

PC Health Monitoring
FAN:
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for fan connectors

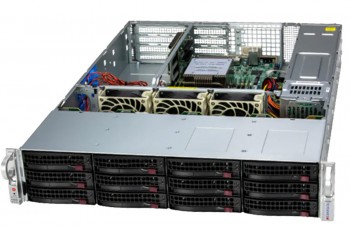

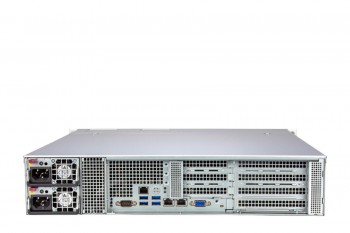

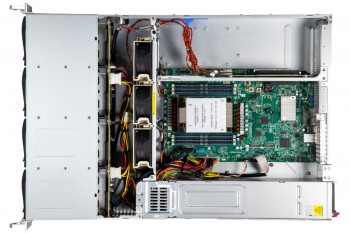

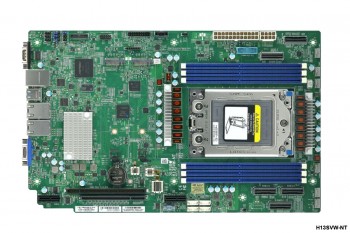

PHOTOS

MY CONFIGURATION

CPU

AMD EPYC 4th Gen Processor 8224P (2.55GHz,160W)

AMD EPYC 4th Gen Processor 8024P (2.40GHz,90W)

Added

AMD EPYC 4th Gen Processor 8224PN (2.00GHz,120W)

AMD EPYC 4th Gen Processor 8124PN (2.00GHz,100W)

AMD EPYC 4th Gen Processor 8024PN (2.05GHz,80W)

AMD EPYC 4th Gen Processor 8124P (2.45GHz,125W)

AMD EPYC 4th Gen Processor 8434P (2.50GHz,200W)

AMD EPYC 4th Gen Processor 8434PN (2.00GHz,155W)

AMD EPYC 4th Gen Processor 8324P (2.65GHz,180W)

AMD EPYC 4th Gen Processor 8324PN (2.05GHz,130W)

AMD EPYC 4th Gen Processor 8534P (2.30GHz,200W)

AMD EPYC 4th Gen Processor 8534PN (2.00GHz,175W)

MEMORY

Samsung 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Added

Micron 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Samsung 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Samsung 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Micron 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Micron 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Enterprise-Class HDD/SSD

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 20TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 4TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 10TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 14TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 6TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 8TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 16TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 18TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 16TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 12TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 18TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 22TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 20TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 4TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 6TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 12TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 10TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 8TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 14TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB

Added

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 2TB

NVMe M.2

SAMSUNG PM9A3 M.2 Nvme SSD 960GB

Samsung 990 EVO MZ-V9E2T0B/AM M.2 NVMe SSD 2TB

Samsung 990 EVO MZ-V9E1T0B/AM M.2 NVMe SSD 1TB

Samsung 980 EVO MZ-V8V250B/AM M.2 NVMe SSD 250GB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB

Samsung 990 PRO MZ-V9P4T0B/AM M.2 NVMe SSD 4TB

Samsung 980 EVO MZ-V8V1T0B/AM M.2 NVMe SSD 1TB

Samsung 980 EVO MZ-V8V500B/AM M.2 NVMe SSD 500GB

Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB

SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB

Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB

SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB

Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB

Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB

*No NVMe M.2 Drives

Added

WD Black SN850 M.2 G4 NVMe SSD 500GB

WD Black SN850 M.2 G4 NVMe SSD 1TB

WD Black SN850 M.2 G4 NVMe SSD 2TB

Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB

Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB

Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB

Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB

Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB

Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB

Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB

Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB

NETWORK CARD

Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)

Broadcom BCM957508-N2100G Dual-Port 100 Gb/S (QSFP56/28) Network Adapter

Supermicro AOC-A100G-M2CM ConnectX-6 Dx 100GbE Network Card

NVIDIA 900-9X766-003N-SQ0 1-Port ConnectX-7 400G Network Adapter

Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)

Supermicro AOC-STGS-I2T-O x550-AT2 2-Port 10GbE PCI-E 3.0 Ethernet Card

Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)

Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)

Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)

Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)

Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)

*No Network Card

Added

Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)

Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)

Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)

Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)

Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)

Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)

Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)

Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)

Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)

Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)

Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)

Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)

OPERATING SYSTEM

*Please contact our sales for more operating system options

Added

Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)

Debian Linux (No Media) (32-Bit/64-Bit)

CentOS Enterprise Linux (No Media) (32-Bit/64-bit)

Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)

Fedora Linux Workstation Edition 64-bit (No Media)

Microsoft Windows Server 2022 Standard 64-bit-1User

WARRANTY

*1 Year Parts Replacement Warranty

Added

3 Year Parts Replacement Warranty - Server Value $500 to $2000

3 Year Parts Replacement Warranty - Server Value $2001 to $4000

3 Year Parts Replacement Warranty - Server Value $4001 to $7000

3 Year Parts Replacement Warranty - Server Value $7001 to $10000

3 Year Parts Replacement Warranty - Server Value Over $10000
