R1520G6

Please Inquire

Mitac 1U 10Bays Dual Processor Rackmount Server

Up to 350W 1 Intel Xeon 6 processors with air cooling
32 RDIMM slots w/ DDR5-6400 (1DPC)memory support
1 PCIe Gen 5 x16 slots (HH/HL) + 1 PCIe Gen 5 x16 slots (FH/HL) + 2 OCP v3.0 LAN mezzanine slots
2 NVMe M.2 22110 / 2280 slots
DC-SCM v2.0
(1+1) 1300W RPSU, 80+ Titanium

Storage configuration notice:
10x 2.5" NVMe U.2 drive
2x M.2

SKU	R1520G6U2XD

Processor

Q'ty / Socket Type:
2 / LGA4710

Supported CPU Series:
Xeon® 6 Processor

Thermal Design Power Wattage:
Max up to 350W* (TDP)

Memory

Supported DIMM Qty:
(16)+(16) DIMM slots

DIMM Type / Speed:
RDIMM / RDIMM-3DS DDR5 6400 MHz (1DPC) / 5200MHz (2DPC) -SRF-SP / RDIMM / RDIMM-3DS DDR5 6400 MHz (1DPC) / 5200MHz (2DPC) / MRDIMM 8000 (1DPC) -P Core only

Capacity:
Up to 8192GB RDIMM *Follow latest Intel DDR5 Memory POR

Memory channel:
8-Channel DDR5 RDIMM / MRDIMM

Memory voltage:
1.1V

Chassis

1U Rackmount Chassis

Dimensions

Dimension (D x W x H):
30.31" x 17.26" x 1.69"
770mm x 438.5mm x 43mm

Front Panel

Buttons:
(1) PWR w/ LED / (1) ID w/ LED / (1) RST / (1) NMI

LEDs:
(1) PWR / (1) ID / (1) Drive / (1) System Event

I/O Ports:
(1) USB 2.0 port / (1) USB 3.0 port

Bios	Brand / ROM size: AMI / 64MB Feature: PXE boot support / Console Redirection / SMBIOS 3.6 / ACPI 6.5 / ACPI sleeping states S0, S5 / UEFI Secure Boot / IPMI Boot / Redfish support / PFR Secure Update / HTTP Boot

Onboard Devices

LAN
Q'ty / Port:
(1) GbE dedicated for IPMI
PHY:
Realtek RTL8211F

Storage NVMe
Connector(M.2):
(2) 22110/2280 (by PCIe Gen 4 interface)
Connector (U.2):
(5) SFF-TA-1016 (MCIO 8x) for (10) front NVMe

Graphic
Connector type:
Mini Display Port
Resolution:
Up to 1920x1200
Chipset:
Aspeed AST2600

HDD Drive Bays

Q'ty / Type:
(10) 2.5" Hot-Swap SSDs

Front Drive Bay Interface:
(10) NVMe U.2

Front Drive Backplane Support:
SAS 24Gb/s /SATA 6Gb/s /NVMe

Notification:
The SAS/SATA HDD backplane is connected to onboard MCIO connection by default. Please contact technical support if a discrete SAS HBA/RAID adapter is required.

Expansion Slots

PCIe:
(1) PCIe Gen 5 x16 slots (HH/HL) / (1) PCIe Gen 5 x16 slots (FH/HL)

Others:
(2) PCIe Gen.5 x16 OCP 3.0 mezzanine slots / (1) DC-SCM 2.0 slot

Power Supply

Type:
RPSU

Input Range:
AC 100-127V/12A / AC 200-240V/8.5A

Frequency:
50/60 Hz

Output Watts:
1,300 Watts

Efficiency:
80 plus Titanium

Redundancy:
1+1

Notification:
We have additional PSU options available, including 2000W, 2700W, and 3200W. For further details, please contact us.

Input Output

Q'ty / Port:
(1) GbE dedicated for IPMI

PHY:
Realtek RTL8211F

Cooling

Fan:
(8) 4056 fans

Operating Environment

Operating Temp.:
10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp.:
- 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity:
5%~95%, non-condensing

Details

TPM (Optional)
TPM Support:
TM-TPM2-MS-I-9672
Interface:
SPI

System Monitoring
Chipset:
Aspeed AST2600
Temperature:
Monitors temperature for CPU & memory & system environment
Voltage:
Monitors voltage for CPU, memory, chipset & power supply
LED:
Over temperature warning indicator / Fan & PSU fail LED indicator

Server Management
Onboard Chipset:
Onboard Aspeed AST2600 (on DCSCM module)
AST2600 iKVM Feature:
24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2600 IPMI Feature:
IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface

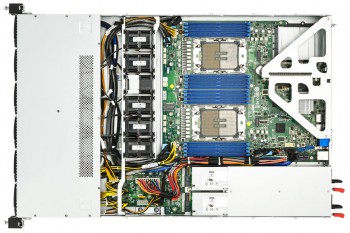

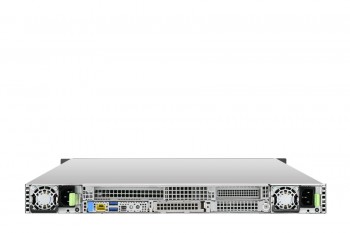

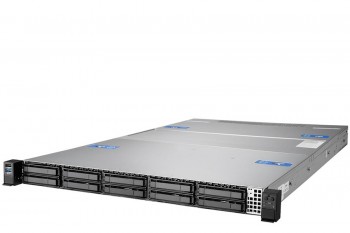

PHOTOS

R1520G6
